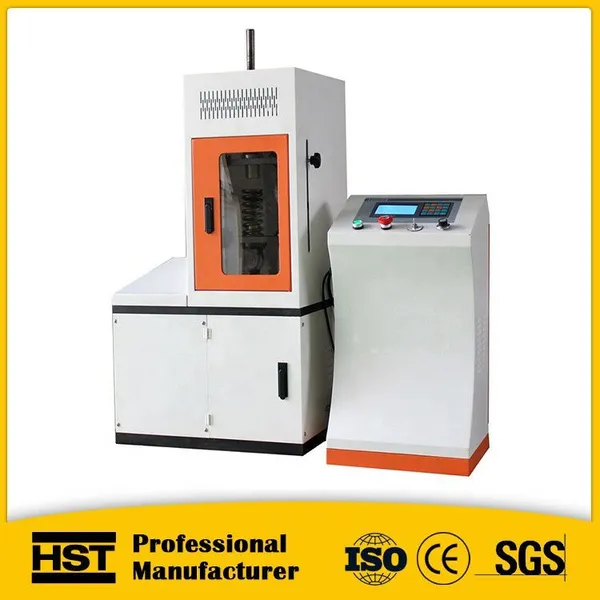

High precision Tension spring fatigue testing machine spring tensile fatigue test testing machine
Application:
This machine is mainly suitable for axial fatigue life test of various spiral cylindrical springs, gas springs, elastomers, elastic components and other components.
Features:
1. The fuselage is made of high-quality thick steel plate to ensure that the machine can withstand the effects of long-term load and will not cause deformation;
2. The test area is equipped with a transparent visual protective net to ensure the safety of the test operators;
3. Test loading Select domestic high-quality precision AC motor, the output torque performance is stable, reliable operation, and overcome the impact of unstable torque output on the machine.
4. Load sensor adopts precision spoke type sensor, which has the advantages of high measurement accuracy, good dynamic response, good lateral force resistance and stable performance.
5. Newly added lubrication and oil guiding system can realize automatic filling, automatic collection and reuse of lubricating oil in the test part, which changes the secondary pollution of the machine caused by the overflow of lubricating oil in the past and greatly reduces the manual operation.
Specification:
| Model | HTPL-1S | HTPL-2S | HTPL-3S |
| HTPL-1W | HTPL-2W | HTPL-3W | |
| Max. Load(kN) | 1 | 2 | 3 |
| Test station | Single(Standard)or multiple springs(Optional) | ||
| Vertical maximum space | 200mm | ||
| Can be customized | |||
| Transverse maximum space | 150mm | ||
| Can be customized | |||
| Frequency range (adjustable) | 0-5Hz | ||
| 300 times/minute | |||
| Test frequency | According to actual specimen | ||
| Counting stop accuracy | 1 | ||
| Test machine amplitude | 50mm | ||
| Maximum deformation of specimen | 100mm | ||
| Counter capacity | 999999999 | ||
| Power | 220VAC 10% 50Hz | ||
Wooden Package:
Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Dear customer, if you need our testing machines, please send us inquiry without any hesitate ! We will supply our best service for you ! Please send us "inquiry" !
-------------
