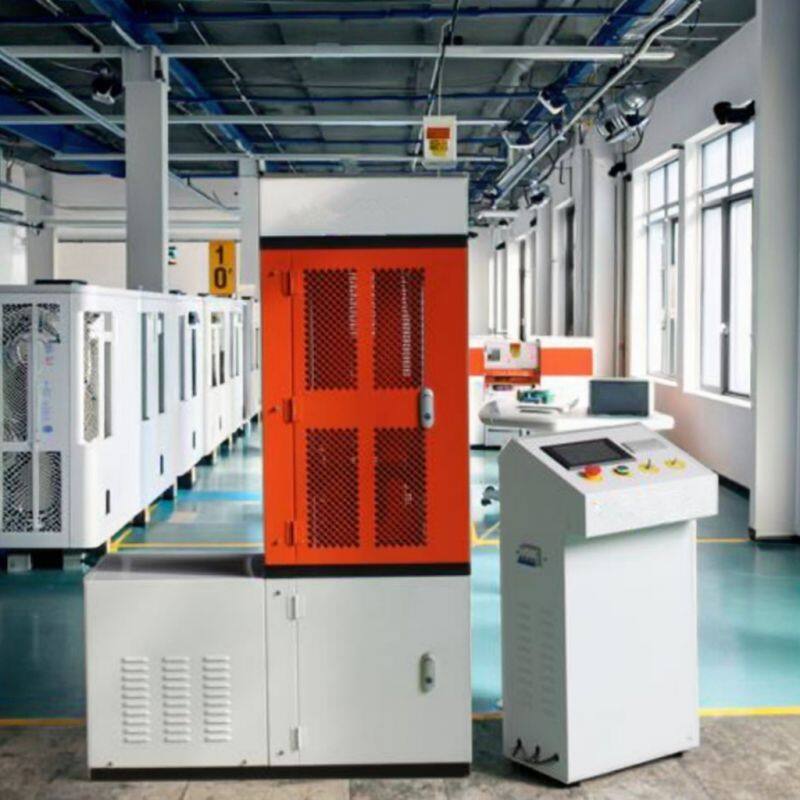

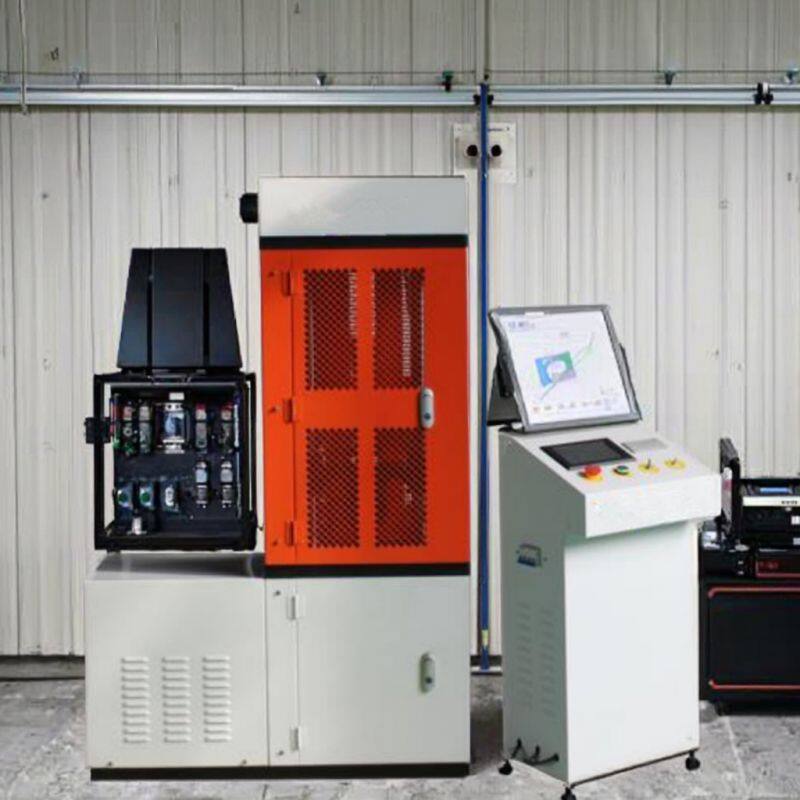

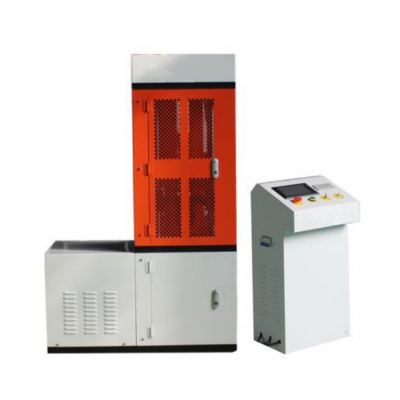

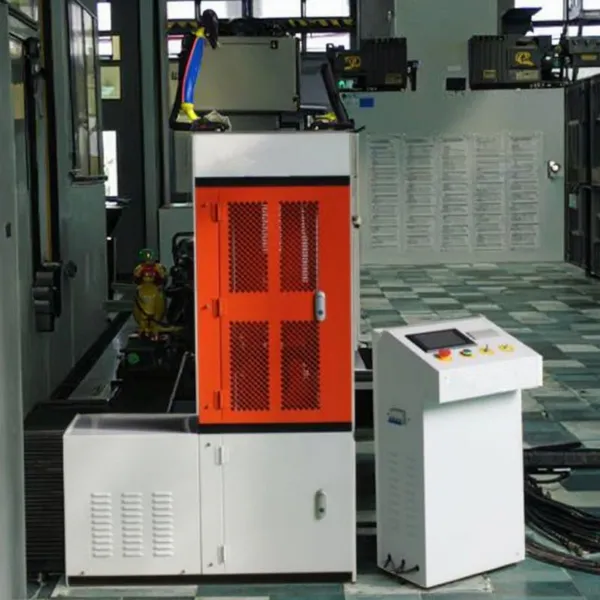

HST-TPL3T /5T 3KN 5KNTouch Screen Spring Tension and Compression Fatigue Testing Machine
US$ 41847.45
1 - 2 Set
US$ 37788.66
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-TPL3W/5W 3KN 5knComputer Control Spring Tension and Compression Fatigue Testing MachineUS$ 49685.09 - 58782.36MOQ: 1 Set -
HST-TPL10T 10KN Touch Screen Spring Tension and Compression Fatigue Testing MachineUS$ 47585.72 - 53184.04MOQ: 1 Set
-
HST-TPL2W 2KN Computer Control Spring Tension and Compression Fatigue Testing MachineUS$ 32190.34 - 37788.66MOQ: 1 Set
-
HST-TLS-M 100N 200N 500N Manual Spring Tensile and Compression Testing MachineUS$ 1300 - 1500MOQ: 1 Set
-
HST Spring Tester Electronic Digital Manual Valve Tension Spring TesterUS$ 19594.12 - 20993.70MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Spring Tension and Compression Fatigue Testing Machine
Model
HST-TPL3T/5T
Max. Load
3KN 5KN
Test station
Single(Standard) or multiple springs(Optional)
Vertical maximum space
300mm(Customizable)
Transverse maximum space
200mm(Customizable)
Maximum diameter of specimen
100mm(Customizable)
Test machine amplitude
±50mm
Frequency range (adjustable)
0-5HZ
Power
AC 380V±10% 50Hz
HST-HTPL3T/5T 10KN Spring Fatigue Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application

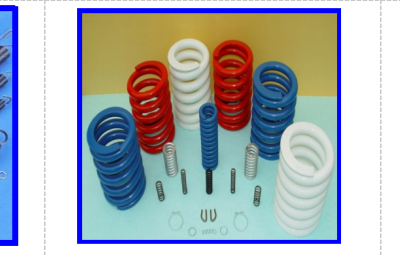

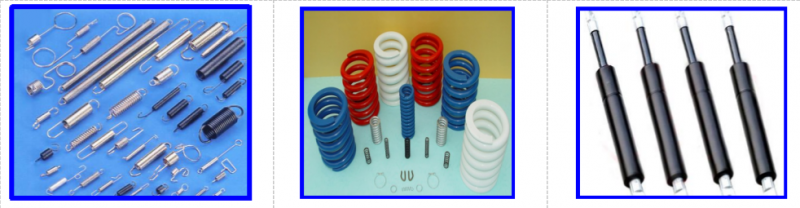

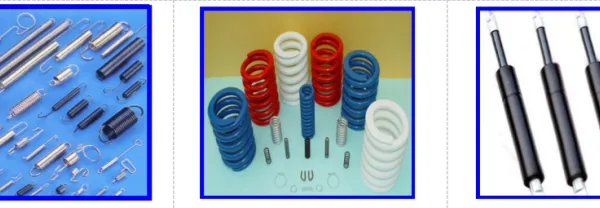

This machine is mainly suitable for axial fatigue life test of various spiral cylindrical springs, gas springs, elastomers,
elastic components and other components.
elastic components and other components.
Features:
1. The fuselage is made of high-quality thick steel plate to ensure that the machine can withstand the effects of long-term load and will not cause deformation;
2. The test area is equipped with a transparent visual protective net to ensure the safety of the test operators;
3. Test loading Select domestic high-quality precision AC motor, the output torque performance is stable, reliable operation, and overcome the impact of unstable torque output on the machine.
4. Load sensor adopts precision spoke type sensor, which has the advantages of high measurement accuracy, good dynamic response, good lateral force resistance and stable performance.
5. 6. Newly added lubrication and oil guiding systemcan realize automatic filling, automatic collection and reuse of lubricating oil in the test part, which changes the secondary pollution of the machine caused by the overflow of lubricating oil in the past and greatly reduces the manual operation.
2. The test area is equipped with a transparent visual protective net to ensure the safety of the test operators;
3. Test loading Select domestic high-quality precision AC motor, the output torque performance is stable, reliable operation, and overcome the impact of unstable torque output on the machine.
4. Load sensor adopts precision spoke type sensor, which has the advantages of high measurement accuracy, good dynamic response, good lateral force resistance and stable performance.
5. 6. Newly added lubrication and oil guiding systemcan realize automatic filling, automatic collection and reuse of lubricating oil in the test part, which changes the secondary pollution of the machine caused by the overflow of lubricating oil in the past and greatly reduces the manual operation.
Functions:
1. The same applies to the determination of metal, non-metal, alloy materials and their components (such as operating joints, fasteners, spiral moving parts, etc.),fatigue properties, fatigue life, pre-cracking and crack propagation tests of tensile load, compression or tensileand compressing alternating load at room temperature.Widely used in spring production enterprises, spring use enterprises, colleges and universities research institutes, quality inspection departments and other industries.
2. Emergency shutdown protection function.
Main parameters:
Model | HST-HTPL3T/5T |
Max. Load(N) | 3000 /5000 |
Test station | Single（Standard） or multiple springs（Optional） |
Vertical maximum space(mm) | 300(Customizable) |
Transverse maximum space(mm) | 200(Customizable) |
Maximum diameter of specimen(mm) | 100(Customizable) |
Test machine amplitude(mm) | ±50 |
Frequency range (adjustable)（Hz） | 0.1-5 |
Counting stop accuracy（Hz） | 1000 |
Power | AC 380V±10% |
Electrical System Functions And Features:
2 According to the amplitude and frequency of various springs, elastomers and elastic components can be adjusted.
3 The relevant results can be achieved according to different test conditions: preset test times, deviation from peak value,
sample breakage;
3 With perfect protection function: with load, test times protection; electrical system over current, over voltage protection.
Environment and working conditions:
1. a) Room temperature in the range of 10 ° C -35 ° C; relative humidity is not more than 80%;
2. b) No vibrating, non-corrosive medium and clean environment without strong electromagnetic interference
3. c) The fluctuation range of the power supply voltage should be within 10% of the rated voltage soil;
4. d) Install correctly on a solid foundation
Company Profile

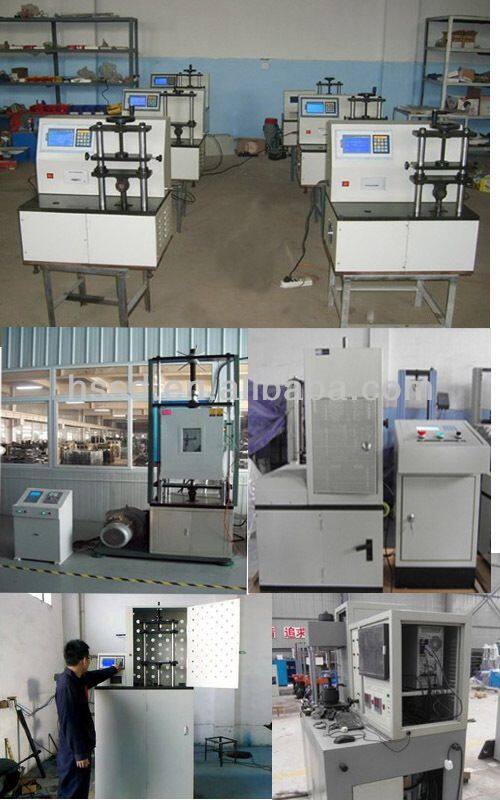

Customer Photos
