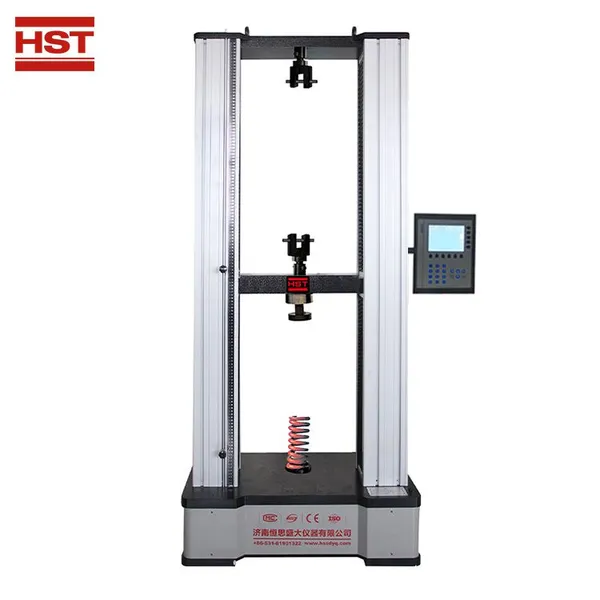

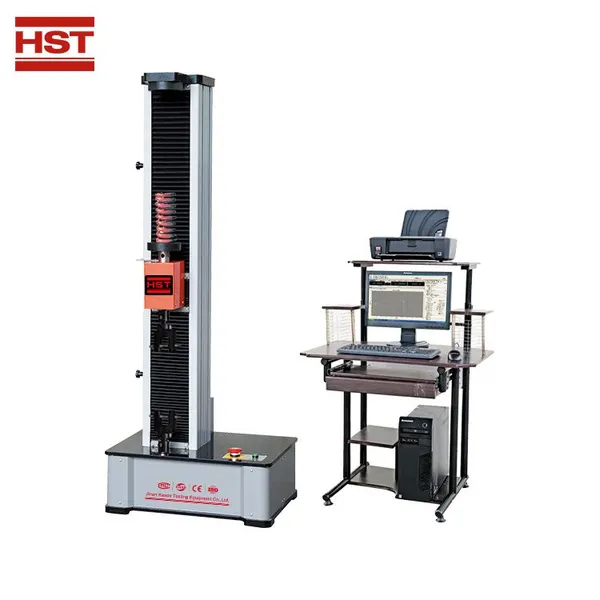

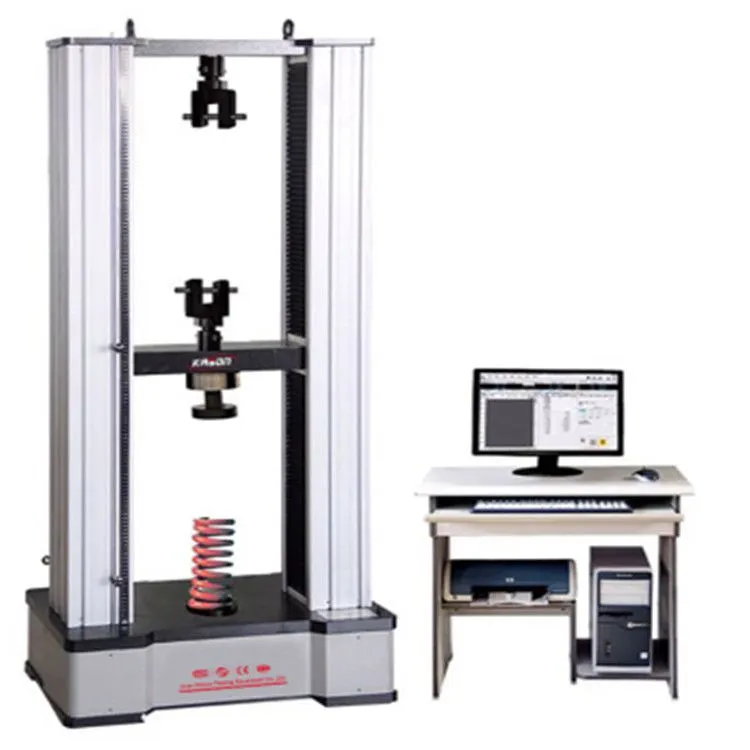

Help CenterHST Best Selling 10kn/30kn/50kn UTM Tensile Strength Testing Machine for Stainless Steel Spring Wire
Related Products
-
HST Manufacturer'S Fully Automatic Spring Testing Machine Elastic Material Performance Tester Shock Absorber Pressure TesterUS$ 41987.40 - 43386.98MOQ: 1 Set -
HST Spring Tension and Compression Testing Machine Shock Absorber Fatigue Life Testing EquipmentUS$ 31490.55 - 34989.50MOQ: 1 Set
-
HST Spring Electronic Power Tension Meter Tester & Universal Testing Machine and Compression Test EquipmentUS$ 41987.40 - 43386.98MOQ: 1 Set
-
HST Computer-type Automatic Spring Torsion Testing MachineUS$ 38488.45 - 41987.40MOQ: 1 Set
-
10KN Computer-Controlled Double-Column Spring Stiffness Testing MachineUS$ 35682.30 - 36074.18MOQ: 1 Set
WDS-2 2KN LCD Touch Screen Spring Tension Compression Tester
Application
This series testing machine is mainly used for tension spring, compression spring, saucer reed, tower spring, leaf spring, clip spring, flat spring, cpmposite spring,gas spring, mould spring, deformed spring and other precision spring tensile, compression, disp lacement and rigidity test and analysis.
Standards
GB/T, ASTM, DIN, JIS and other international standards
Main Technical Parameters
|
Model |
TLS-10 TLW-10 |
TLS20 TLW-20 |
TLS50 TLW-50 |
TLS-100 TLW-100 |
TLS-200 TLW-200 |
TLS-300 TLW-300 |
||||
|
Structure |
Single Colum Type Double space models |
|||||||||
|
Control Method |
Digital display/computer control |
|||||||||
|
Load Accuracy |
Class1/Class0.5 |
|||||||||
|
Load Range |
2%~100%F·S |
|||||||||
|
Test force relative error value |
≤±1%% |
|||||||||
|
Displacement relative error value |
≤±1% |
|||||||||
|
Displacement display resolution |
0.01mm |
|||||||||
|
Deformation indication error |
≤±(50+0.15L)um |
|||||||||
|
Speed range(mm/min) |
0.01-500 |
0.01-500 |
0.01-500 |
0.01-500 |
0.01-500 |
0.01-500 |
||||
|
Speed relative error |
≤±1% |
|||||||||
|
Tensile test space |
670 |
670 |
770 |
650 |
700 |
700 |
||||
|
Compression space |
670 |
670 |
770 |
650 |
700 |
700 |
||||
