Home > Instruments & Meters > Test Instrument > Test Machine > HST-TPL2W 2KN Computer Control Spring Tension and Compression Fatigue Testing Machine

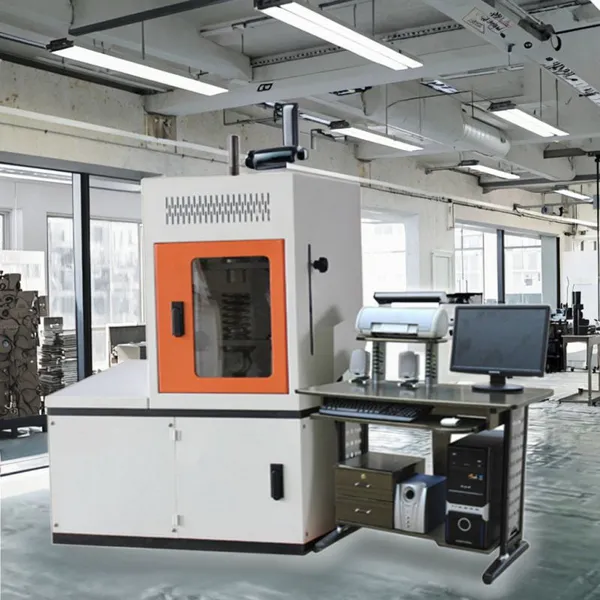

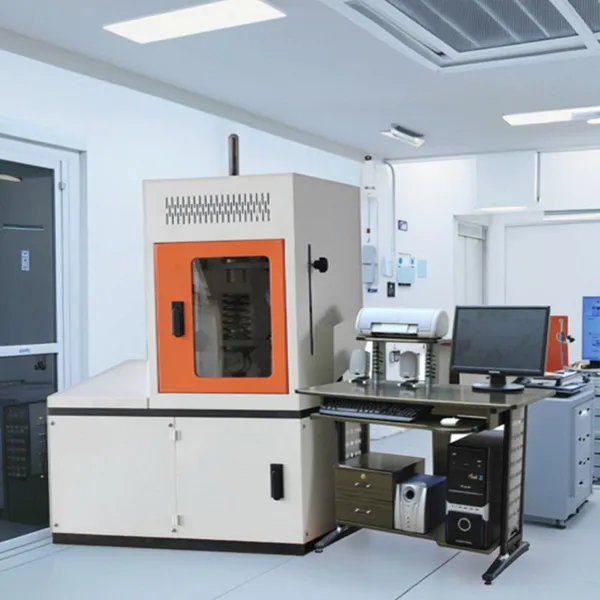

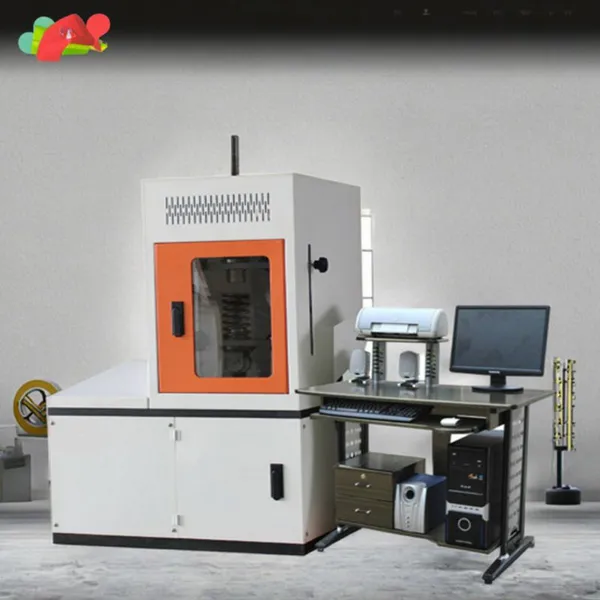

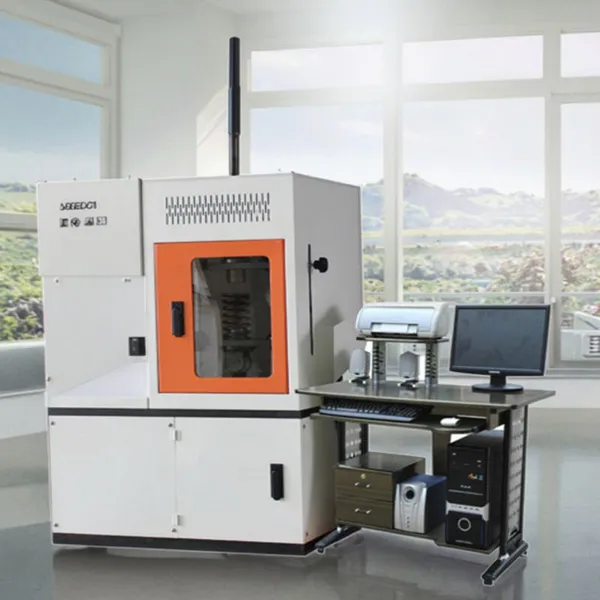

HST-TPL2W 2KN Computer Control Spring Tension and Compression Fatigue Testing Machine
US$ 37788.66
1 - 2 Set
US$ 32190.34
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-TLS-M 100N 200N 500N Manual Spring Tensile and Compression Testing MachineUS$ 1300 - 1500MOQ: 1 Set -
HST Spring Tester Electronic Digital Manual Valve Tension Spring TesterUS$ 19594.12 - 20993.70MOQ: 1 Set
-
HST Best Selling 10kn/30kn/50kn UTM Tensile Strength Testing Machine for Stainless Steel Spring WireUS$ 1000 - 2000MOQ: 1 Set
-
HST Manufacturer'S Fully Automatic Spring Testing Machine Elastic Material Performance Tester Shock Absorber Pressure TesterUS$ 41987.40 - 43386.98MOQ: 1 Set
-
HST Spring Tension and Compression Testing Machine Shock Absorber Fatigue Life Testing EquipmentUS$ 31490.55 - 34989.50MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Spring Tension and Compression Fatigue Testing Machine
Model
HST-TPL2W
Max. Load
2KN
Test station
Single(Standard) or multiple springs(Optional)
Vertical maximum space
245mm(Customizable)
Transverse maximum space
150mm(Customizable)
Maximum diameter of specimen
100mm(Customizable)
Test machine amplitude
50mm (adjustable, can be increased)
Frequency range (adjustable)
0 ~ 5Hz(No-load frequency, adjustable)
Power
AC 220V±10% 50Hz
HST-TPL2W 2KN Computer Control Spring Tension and Compression Fatigue Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
This Computer-controlled spring fatigue testing machine is mainly suitable for axial fatigue life tests of various spiral
cylindrical springs, gas springs, elastomers, elastic elements and other parts to detect the fatigue life of springs or the
reliability level of springs. It is also suitable for measuring the fatigue characteristics, fatigue life, prefabricated cracks
and crack extension tests of metals, non-metals, alloy materials and their components (such as operating joints, fasteners, spiral moving parts, etc.) under tensile, compression or tension-compression alternating loads at room temperature.
It is widely used in spring production enterprises, spring using enterprises, colleges and universities, scientific research
units, quality inspection departments and other industries.
cylindrical springs, gas springs, elastomers, elastic elements and other parts to detect the fatigue life of springs or the
reliability level of springs. It is also suitable for measuring the fatigue characteristics, fatigue life, prefabricated cracks
and crack extension tests of metals, non-metals, alloy materials and their components (such as operating joints, fasteners, spiral moving parts, etc.) under tensile, compression or tension-compression alternating loads at room temperature.
It is widely used in spring production enterprises, spring using enterprises, colleges and universities, scientific research
units, quality inspection departments and other industries.
.Introduction to the main machine structure and features:
This machine is mainly composed of five parts: software control system, load displacement acquisition system, motor drive system, eccentric wheel transmission system, and lubrication system. The main working principle of the testing machine is that the software controls the motor to decelerate through the synchronous belt, and the eccentric wheel drives the machine beam to move up and down to complete the loading of the sample force, so as to achieve axial reciprocating motion and detect and judge the mechanical properties of the sample. The machine has the characteristics of reasonable structure, reliable performance, mature and stable, easy and simple operation, and high integration of the whole machine.
1 The machine body is made of high-quality thickened steel plate, and the whole machine has high strength. The main purchased parts are made of domestic high-quality products. The whole machine is stable and reliable, ensuring that the machine can withstand long-term and high-load operation;
2 The adjustment of the test space adopts electric control, which saves time and effort, is convenient and fast;
3 A transparent visual protection net is installed in the test area to ensure the safety of the test operators;
4 The test loading uses domestic high-quality precision AC servo motors, which have stable output torque performance and reliable operation, and overcome the influence of unstable torque output on the machine;
5 The load sensor adopts a precision spoke sensor, which has the advantages of high measurement accuracy, good dynamic responsiveness, good resistance to lateral force, and stable force output;
6 The lubrication and oil guide system can realize the automatic filling, automatic collection and reuse of lubricating oil in
the test part, which changes the secondary pollution of the machine caused by the overflow of lubricating oil in the past and greatly reduces manual operation.
1 The machine body is made of high-quality thickened steel plate, and the whole machine has high strength. The main purchased parts are made of domestic high-quality products. The whole machine is stable and reliable, ensuring that the machine can withstand long-term and high-load operation;
2 The adjustment of the test space adopts electric control, which saves time and effort, is convenient and fast;
3 A transparent visual protection net is installed in the test area to ensure the safety of the test operators;
4 The test loading uses domestic high-quality precision AC servo motors, which have stable output torque performance and reliable operation, and overcome the influence of unstable torque output on the machine;
5 The load sensor adopts a precision spoke sensor, which has the advantages of high measurement accuracy, good dynamic responsiveness, good resistance to lateral force, and stable force output;
6 The lubrication and oil guide system can realize the automatic filling, automatic collection and reuse of lubricating oil in
the test part, which changes the secondary pollution of the machine caused by the overflow of lubricating oil in the past and greatly reduces manual operation.
Functions and features of automated electrical system:
1 All kinds of electronic components are selected from high-quality brands to ensure long-term reliability;
2 This machine uses the latest generation of data acquisition controller, with a 32-bit ARM processor as the main control unit, equipped with imported ADI data conversion chip, high acquisition frequency, fast response speed,
3 Optional integration of multiple digital input and output interfaces to achieve multi-channel testing;
4 After connecting to the computer RJ-45 network interface, high-speed and long-distance communication can be achieved;
5 It has complete protection functions: load and test number protection; electrical system overcurrent and overvoltage
protection.
Main parameters:
Model |
HTPL-2W |
Max. Load |
2KN(Single station or multiple) |
Vertical maximum space |
245mm(Customizable) |
Maximum diameter of specimen |
150mm(Customizable) |
Adjustable frequency |
0 ~ 5Hz(No-load frequency, adjustable) |
Test frequency |
According to the actual sample |
Testing machine amplitude |
50mm (adjustable, can be increased) |
Testing machine adjustable amplitude accuracy |
1mm (manual adjustment) |
Maximum deformation (mm) |
100 |
Counting Capacity |
999999999 |
Test station |
1 |
Power |
AC 220V±10% 50Hz |
Sizes |
600*450*1000mm |
Weight |
260kg |
Power |
1.2kw |
Noise |
＜75dB |
Electrical System Functions And Features:
2. The software modules are divided into: test area, analysis area, report area, program control area, and status area;
3. The software synchronously displays real-time load, real-time deformation, number of tests, running time, and test frequency;
4. Automatically draw real-time load-test time, real-time deformation-test time test curves;
5. The X-axis and Y-axis scales can be adjusted, and different colors and styles of curves can be set, and analysis and judgment can be made based on the test curve;
6. Automatically collect, process, and output data;
7. Curve playback: when the test ends or is paused , the recorded data can be replayed;
8. Test status prompt: when the load is overloaded and the number of times reaches the upper and lower limits of the load, the indicator light will light up/alarm and shut down;
9. According to the technical requirements of various springs, elastic bodies, and elastic elements, the amplitude and frequency of various springs, elastic bodies, and elastic elements can be adjusted, and the machine can realize the displacement control of the sample;
10. Relevant results can be achieved according to different test conditions: preset test times, deviation from the peak value, and sample fracture;
11. The test can be paused in the middle, and the last test conditions can be continued;
12. It has complete file operation functions for the storage of test curves and test data;
13. Test data and test reports can be printed at any time
12. It has complete file operation functions for the storage of test curves and test data;
13. Test data and test reports can be printed at any time
Environment and working conditions:
a) Room temperature in the range of 10 ° C -35 ° C; relative humidity is not more than 80%;
. b) No vibrating, non-corrosive medium and clean environment without strong electromagnetic interference
. c) The fluctuation range of the power supply voltage should be within 10% of the rated voltage soil;
d) Install correctly on a solid foundation
. b) No vibrating, non-corrosive medium and clean environment without strong electromagnetic interference
. c) The fluctuation range of the power supply voltage should be within 10% of the rated voltage soil;
d) Install correctly on a solid foundation
