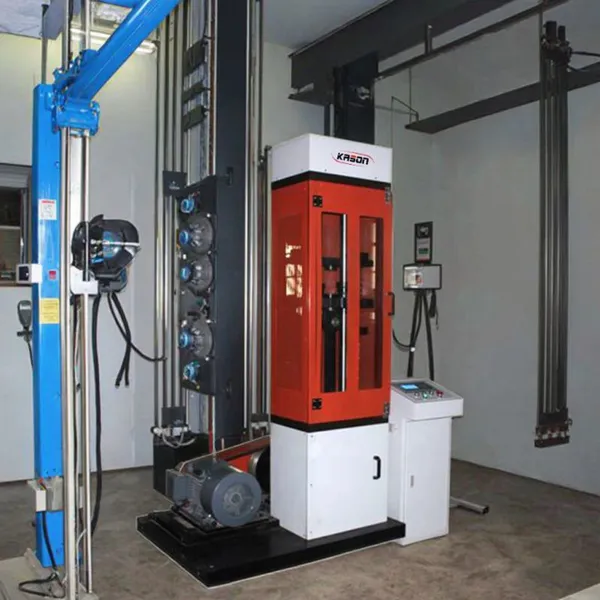

HST-TPL20T 20KN Four Work-Station Type Touch Screen Spring Tension and Compression Fatigue Testing Machine
US$ 72498.25
1 - 2 Set
US$ 60881.73
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-TPL3T /5T 3KN 5KNTouch Screen Spring Tension and Compression Fatigue Testing MachineUS$ 37788.66 - 41847.45MOQ: 1 Set -
HST-TPL3W/5W 3KN 5knComputer Control Spring Tension and Compression Fatigue Testing MachineUS$ 49685.09 - 58782.36MOQ: 1 Set
-
HST-TPL10T 10KN Touch Screen Spring Tension and Compression Fatigue Testing MachineUS$ 47585.72 - 53184.04MOQ: 1 Set
-
HST-TPL2W 2KN Computer Control Spring Tension and Compression Fatigue Testing MachineUS$ 32190.34 - 37788.66MOQ: 1 Set
-
HST-TLS-M 100N 200N 500N Manual Spring Tensile and Compression Testing MachineUS$ 1300 - 1500MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
250KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Spring Tension and Compression Fatigue Testing Machine
Model
HST-TPL20T
Max. Load
20KN(Single station 5000N)
Vertical maximum space
400mm(Customizable)
Transverse maximum space
150mm(Customizable)
Adjustable frequency
0 ~ 3Hz(180 times/min)
Maximum deformation (mm)
100
Counting Capacity
999999999
Counting stop accuracy
1
Power
AC 380V±10% 50Hz
HST-TPL20T Touch Screen Spring Tension and Compression Fatigue Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
This machine is mainly suitable for axial fatigue life test of various spiral cylindrical springs, gas springs, elastomers,
elastic components and other components.
elastic components and other components.
Features:
1. The fuselage is made of high-quality thick steel plate to ensure that the machine can withstand the effects of long-term load and will not cause deformation;
2. The test area is equipped with a transparent visual protective net to ensure the safety of the test operators;
3. Test loading Select domestic high-quality precision AC motor, the output torque performance is stable, reliable operation, and overcome the impact of unstable torque output on the machine.
4. Load sensor adopts precision spoke type sensor, which has the advantages of high measurement accuracy, good dynamic response, good lateral force resistance and stable performance.
5. 6. Newly added lubrication and oil guiding systemcan realize automatic filling, automatic collection and reuse of lubricating oil in the test part, which changes the secondary pollution of the machine caused by the overflow of lubricating oil in the past and greatly reduces the manual operation.
2. The test area is equipped with a transparent visual protective net to ensure the safety of the test operators;
3. Test loading Select domestic high-quality precision AC motor, the output torque performance is stable, reliable operation, and overcome the impact of unstable torque output on the machine.
4. Load sensor adopts precision spoke type sensor, which has the advantages of high measurement accuracy, good dynamic response, good lateral force resistance and stable performance.
5. 6. Newly added lubrication and oil guiding systemcan realize automatic filling, automatic collection and reuse of lubricating oil in the test part, which changes the secondary pollution of the machine caused by the overflow of lubricating oil in the past and greatly reduces the manual operation.
Functions:
1. 1.According to the technical requirements of axial fatigue of various springs, elastomers, elastic components and other parts, the amplitude and frequency can be easily adjusted;
2.Industrial touch screen control panel, Chinese character operation, the number and frequency of tests can be preset
according to requirements, which can realize the automatic stop of the preset number of tests, boot can continue the last unfinished test and other functions;
3.The latest touch system test interface refreshes the load change trend with time in real time, this function is the first in the industry (this is optional, need to install load sensor);
4.The displacement sensor can be installed to measure the change of sample deformation with the number of tests in real time; The amplitude of the test can also be proofread to ensure the accuracy and reliability of the test (this is optional);
5.Break stop function, emergency stop protection function, over current and over voltage protection function.
2.Industrial touch screen control panel, Chinese character operation, the number and frequency of tests can be preset
according to requirements, which can realize the automatic stop of the preset number of tests, boot can continue the last unfinished test and other functions;
3.The latest touch system test interface refreshes the load change trend with time in real time, this function is the first in the industry (this is optional, need to install load sensor);
4.The displacement sensor can be installed to measure the change of sample deformation with the number of tests in real time; The amplitude of the test can also be proofread to ensure the accuracy and reliability of the test (this is optional);
5.Break stop function, emergency stop protection function, over current and over voltage protection function.
Main parameters:
Model |
HST-HTPL20T |
Max. Load |
20KN(Single station 5000N) |
Vertical maximum space |
400mm(Customizable) |
Maximum diameter of specimen |
150mm(Customizable) |
Adjustable frequency |
0 ~ 3Hz(180 times/min) |
Test frequency |
According to the actual sample |
Maximum deformation (mm) |
100 |
Counting Capacity |
999999999 |
Counting stop accuracy |
1 |
Test station, simplex |
According to the size of the spring, force value |
Power |
AC 380V±10% 50Hz |
Sizes |
1300*100*2500mm |
Weight |
2450kg |
Software control system
in real time, the refresh speed is fast, the load change curve with time is displayed in real time, and the test state of the
sample is really visible;
Parameter setting interface: preset test conditions
1, all Chinese operation interface; Touch operation, clear interface, all parameters can be input through the keyboard, the test parameters are all digital setting;
2, a variety of window display, can set the test frequency, test times, etc.;
3. Refresh the load change trend with time in real time (optional);
4, automatic data acquisition, processing, output display;
5, the number of tests with power failure memory, and keyboard input to change the value;
6. Printable test frequency and test times;
7. with perfect protection function: with load, test number protection; Electrical system over current, over voltage protection
Environment and working conditions:
1. a) Room temperature in the range of 10 ° C -35 ° C; relative humidity is not more than 80%;
2. b) No vibrating, non-corrosive medium and clean environment without strong electromagnetic interference
3. c) The fluctuation range of the power supply voltage should be within 10% of the rated voltage soil;
4. d) Install correctly on a solid foundation
