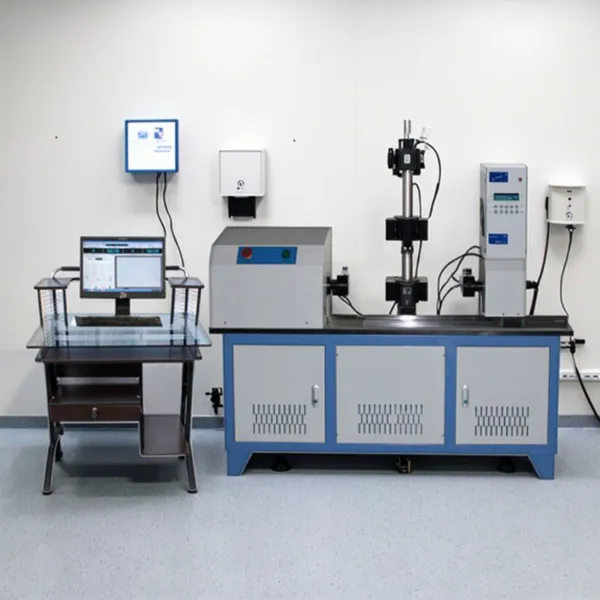

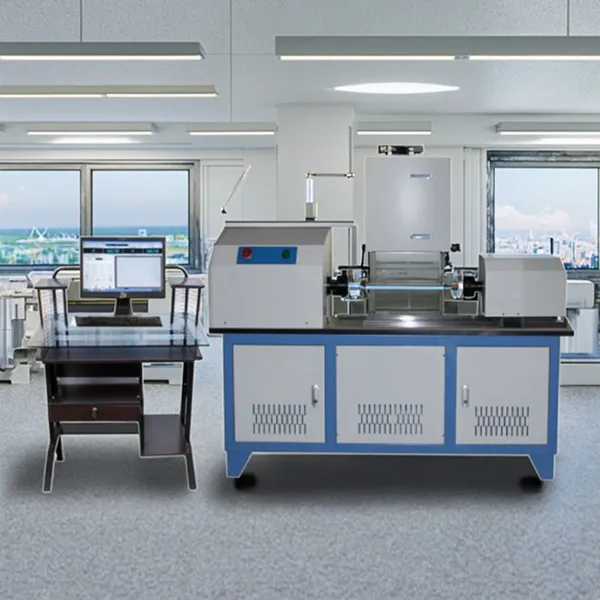

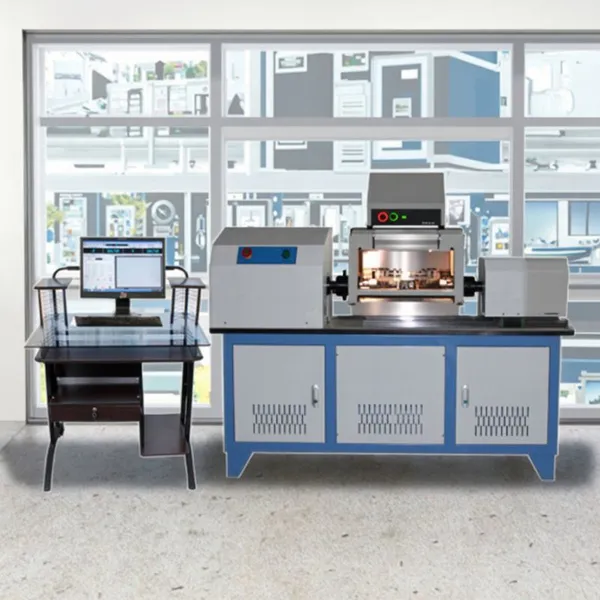

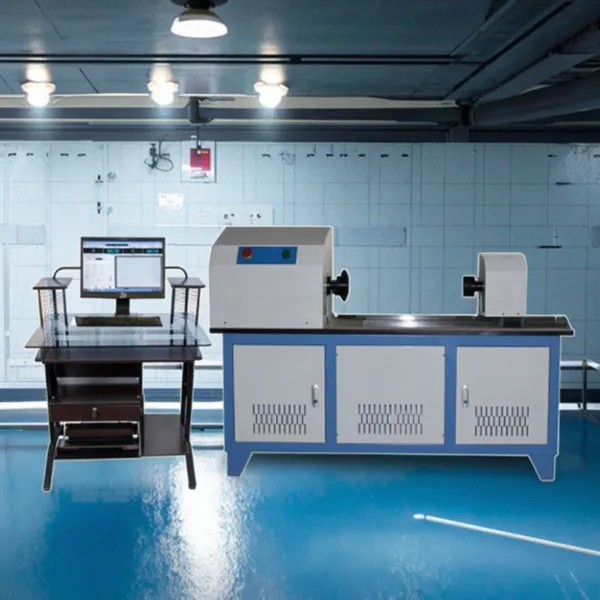

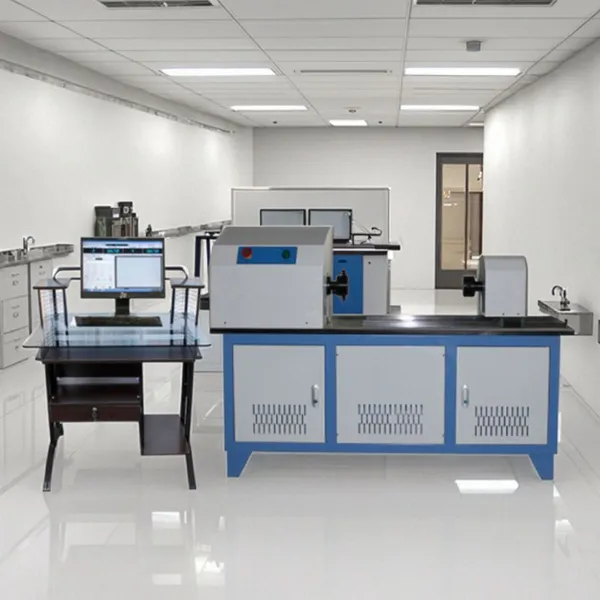

HST-TNP20W Touch Screen Automatic SpringTorsion Fatigue Testing Machine
US$ 70538.84
1 - 2 Set
US$ 59482.15
≥3 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-TPL10W 10KN Computer Control Spring Tension and Compression Fatigue Testing MachineUS$ 57382.78 - 67179.84MOQ: 1 Set -
HST-TPL20T 20KN Four Work-Station Type Touch Screen Spring Tension and Compression Fatigue Testing MachineUS$ 60881.73 - 72498.25MOQ: 1 Set
-
HST-TPL3T /5T 3KN 5KNTouch Screen Spring Tension and Compression Fatigue Testing MachineUS$ 37788.66 - 41847.45MOQ: 1 Set
-
HST-TPL3W/5W 3KN 5knComputer Control Spring Tension and Compression Fatigue Testing MachineUS$ 49685.09 - 58782.36MOQ: 1 Set
-
HST-TPL10T 10KN Touch Screen Spring Tension and Compression Fatigue Testing MachineUS$ 47585.72 - 53184.04MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
220 V
warranty
1 Year
Product name
Touch Screen Automatic SpringTorsion Fatigue Testing Machine
Model
HST-TNP20W
Max test torque
20Nm
Test range
1%-100%FS
Min torque reading
0.01Nm
Maximum axial space of the test
500mm (customizable)
Dynamic test angle measurement range
0-45° (according to amplitude-frequency characteristics)
Accuracy of testing force
±1%
Dynamic test frequenc
0.1-1Hz (according to amplitude-frequency characteristics)
Power
AC 220V±10% 50Hz
HST-TNP20W Computer Control Automatic Spring Torsion Fatigue Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application
This machine is mainly used for static torsion testing and torsion fatigue testing of various shaft parts, rubber products,
springs, etc.; the tested specimens are installed between the fixtures with adjustable space, and can also be used with different tooling to adapt to the torsion fatigue test of different tested specimens.
The test bench uses computer control operation, and the software synchronously displays the torque-time and torsion angle-time curves of the tested specimens, and displays parameters such as torque and torque peak in real time. The test results can be stored and printed, etc. The test methods include setting torque detection torsion angle, setting torsion angle detection torque,
and customized test methods. At the same time, it meets the following test requirements:
springs, etc.; the tested specimens are installed between the fixtures with adjustable space, and can also be used with different tooling to adapt to the torsion fatigue test of different tested specimens.
The test bench uses computer control operation, and the software synchronously displays the torque-time and torsion angle-time curves of the tested specimens, and displays parameters such as torque and torque peak in real time. The test results can be stored and printed, etc. The test methods include setting torque detection torsion angle, setting torsion angle detection torque,
and customized test methods. At the same time, it meets the following test requirements:
Main parameters:
MODEL |
HST-TNP20W |
Static torque range |
±20Nm |
Dynamic torque range |
±20Nm |
Torque measurement range |
1%-100%FS |
Minimum torque reading |
0.01Nm |
Relative error of torque indication |
≤±1.0% |
Relative error of torque repeatability |
≤1.0% |
Dynamic test frequency |
0.1-1Hz (according to amplitude-frequency characteristics) |
Dynamic test angle measurement range |
0-45° (according to amplitude-frequency characteristics) |
Maximum axial space of the test |
500mm (customizable) |
Temperature range |
normal temperature (room temperature) |
Number of cycles |
99999999 times |
Test level |
Level 1 |
