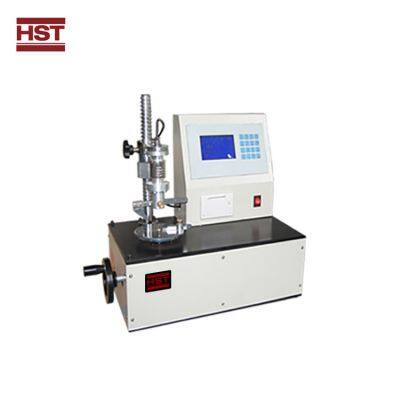

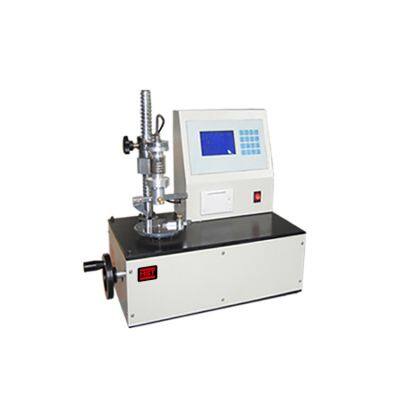

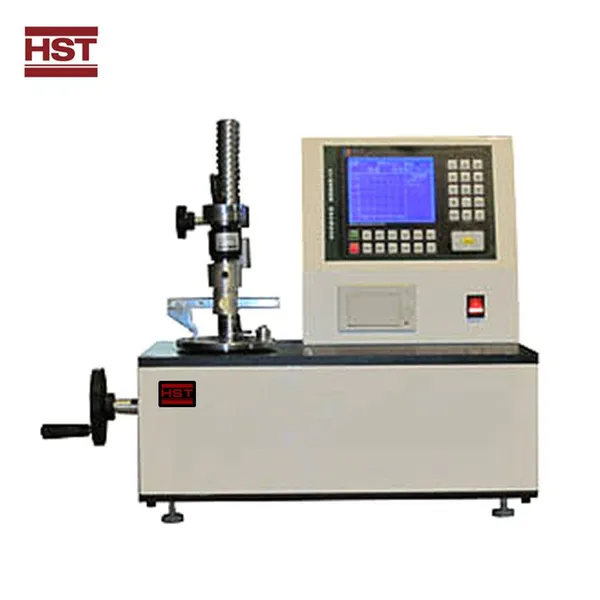

HST-TLS-M 100N 200N 500N Manual Spring Tensile and Compression Testing Machine
US$ 1300 - 1500
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Universal Testing Machine
Warranty:
1 Year
Platens Size:
Ø100 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Spring Tester Electronic Digital Manual Valve Tension Spring TesterUS$ 19594.12 - 20993.70MOQ: 1 Set -
HST Best Selling 10kn/30kn/50kn UTM Tensile Strength Testing Machine for Stainless Steel Spring WireUS$ 1000 - 2000MOQ: 1 Set
-
HST Manufacturer'S Fully Automatic Spring Testing Machine Elastic Material Performance Tester Shock Absorber Pressure TesterUS$ 41987.40 - 43386.98MOQ: 1 Set
-
HST Spring Tension and Compression Testing Machine Shock Absorber Fatigue Life Testing EquipmentUS$ 31490.55 - 34989.50MOQ: 1 Set
-
HST Spring Electronic Power Tension Meter Tester & Universal Testing Machine and Compression Test EquipmentUS$ 41987.40 - 43386.98MOQ: 1 Set
Type
Universal Testing Machine
Warranty
1 Year
Platens Size
Ø100 mm
Resolution
0.01 N
Model Number
HST-TLS-M50N/100N/200N/500N
Brand Name
Hensgrand
Place of Origin
Shandong, China
Input Voltage
220 V
Product name
500N spring tensile compression testing machine
Standard
ISO,.ASTM
Power supply
220V 50Hz
Material
tension ,compression, saucer reed spring
tensile space
650mm
Accuracy
0.5%
Compression platen
100mm or customized
spring tensile grip
pin type
Power
Electronic
Products Description
manual digital Spring Tensile and Compression Testing Machine
Application：
This machine can test and analyze the tension, pressure, displacement and stiffness of various cylindrical springs, disc springs, tower springs, circlips, leaf springs, special-shaped springs and other precision springs.
Functional Features
1. Determine whether the spring is qualified or not by measuring the deformation amount of the spring ΔH or the corresponding force value F measured by the height H.
2. Through the force value F of the spring, measure the corresponding spring deformation △H or height H to judge whether the spring is qualified.
3. One or more points can be tested to judge whether the spring is qualifie
Technical parameter:
MODEL |
TLS-M50 |
TLS-M100 |
TLS-M300 |
TLS-M500 |
|||
Maximum testing load |
50N |
100N |
300N |
500N |
|||
Test range |
2~50N |
4~100N |
12~300N |
20~500N |
|||
Way of working |
Manual loading |
||||||
Display method |
Display method |
||||||
Measuring range |
1-100%FS |
||||||
Test resolution |
0.01N |
||||||
Displacement resolution |
0.01mm |
||||||
Stretch space |
220mm |
||||||
Compression space |
200mm |
||||||
Platen diameter |
60mm |
||||||
Dimensions |
470×300×710mm |
||||||
Weight |
30kg |
||||||
Power supply |
AC 220V±10% 50Hz |
||||||
Working temperature |
20±10℃ |
||||||
Temperature of storage and transportation |
-27℃～+70℃ |
||||||
Relative temperature |
15%～80%RH |
||||||
