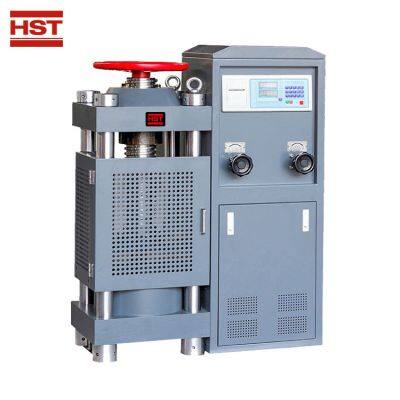

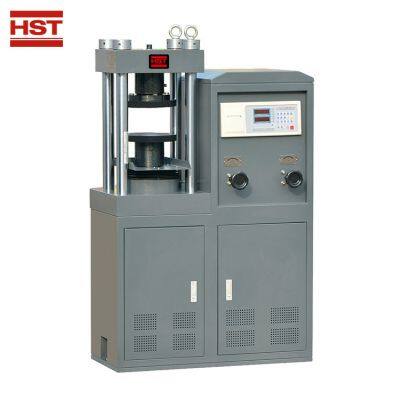

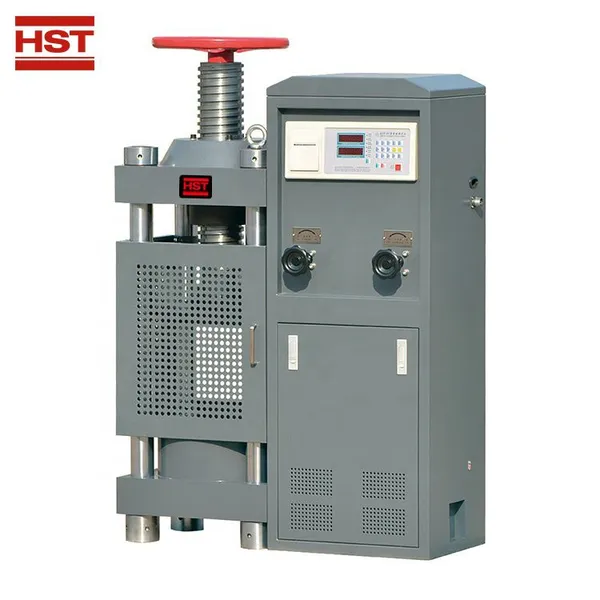

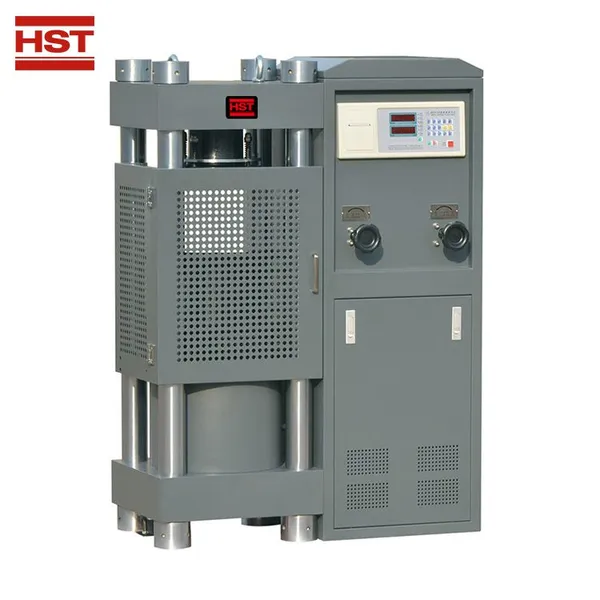

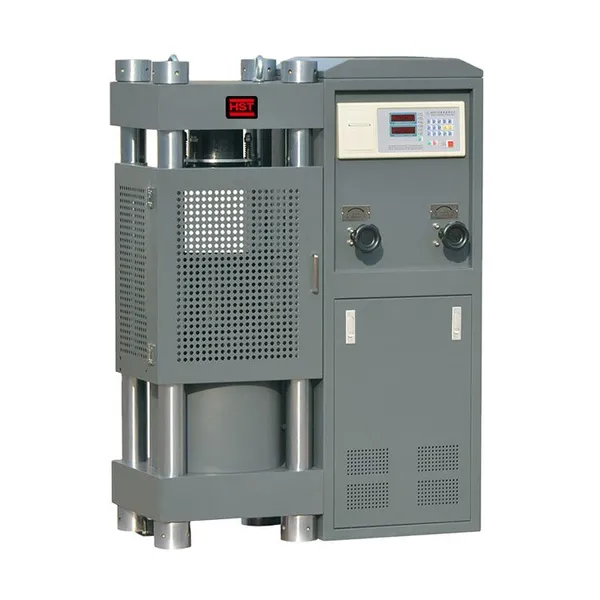

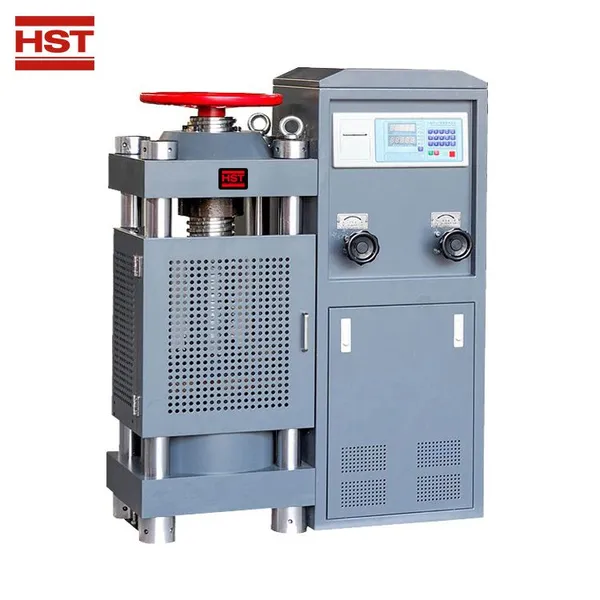

YES Digital Display Eletronic Concrete Brick Compression Testing Machine / Digital Compressive Strength Testing Machine
US$ 13995.80
≥1 Set
Key Specifications
Get Latest Price
brand name:
HST
place of origin:
Shandong, China
customized support:
OEM, ODM, OBM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST HYJ-600W Hydraulic Press Tester Computer Control Manhole Cover Compression Testing MachineUS$ 59482.15 - 62981.10MOQ: 1 Set -
YAW-300C Computer Control Constant Stress Brick/concrete Flexural and Compression Testing MachineUS$ 3000 - 6000MOQ: 1 Set
-
500kn 600kn 60ton 1000kn Computer Controlled Hydraulic Manhole Cover Compression Testing MachineUS$ 25892.23MOQ: 1 Set
-
100kn 300kn Compressive Strength Test Machine for Iron Ore PelletUS$ 9097.27 - 9797.06MOQ: 1 Set
-
YES-3000 3000kN Digital Display Manual Concrete Cement Compressive Strength/ Compression Testing MachineUS$ 11196.64 - 11546.54MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
warranty
1 years
Model Number
YES-2000
Max. load
1000-3000kN
testing class
1 CLASS
Range of test force
4% -100%FS
testing machine type
compression testing machine
compression plate size
220*250mm
compresson space
320mm
Power supply
380v, 220v
piston stoke
50mm
Product Description
Application:
This compression testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Technical parameter:
Model |
YES-1000 |
YES-2000 |
YES-3000 |
|||
Max. load |
1000KN /100Ton |
2000kN/200Ton |
3000kN/300Ton |
|||
Machine Class |
1 class |
|||||
Range of test force |
4% ~100%FS |
|||||
Testing space adjust method |
Manual adjust |
|||||
Indicating value accuracy |
±1% |
|||||
Piston stroke |
50mm |
50 |
||||
Diameter of Piston |
250mm |
300 |
||||
Distance between platens |
320mm |
400mm |
||||
Upper platen size |
220*250mm (Can be customized) |
300x300mm |
||||
Display |
LCD screen display |
|||||
Power supply |
0.75KW, AC380V/50Hz/3 phase 220V 3phrase , 220v/1 phrase |
|||||
Size |
880*480*1400 mm |
1000x500x1450mm |
||||
Weight |
600kg |
1000Kg |
||||
