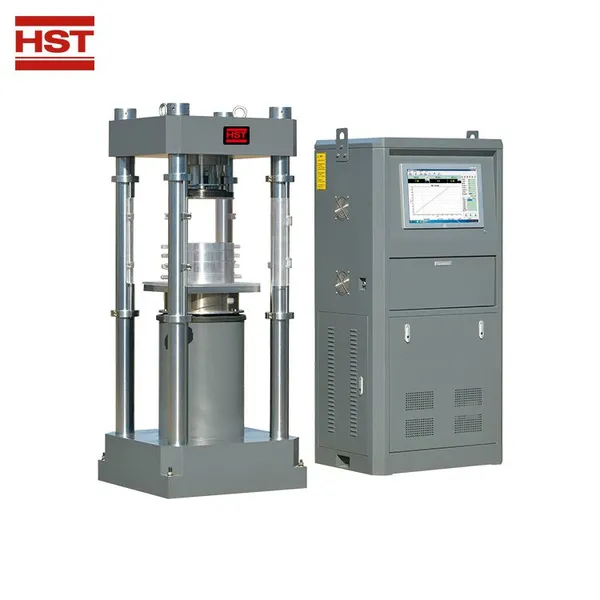

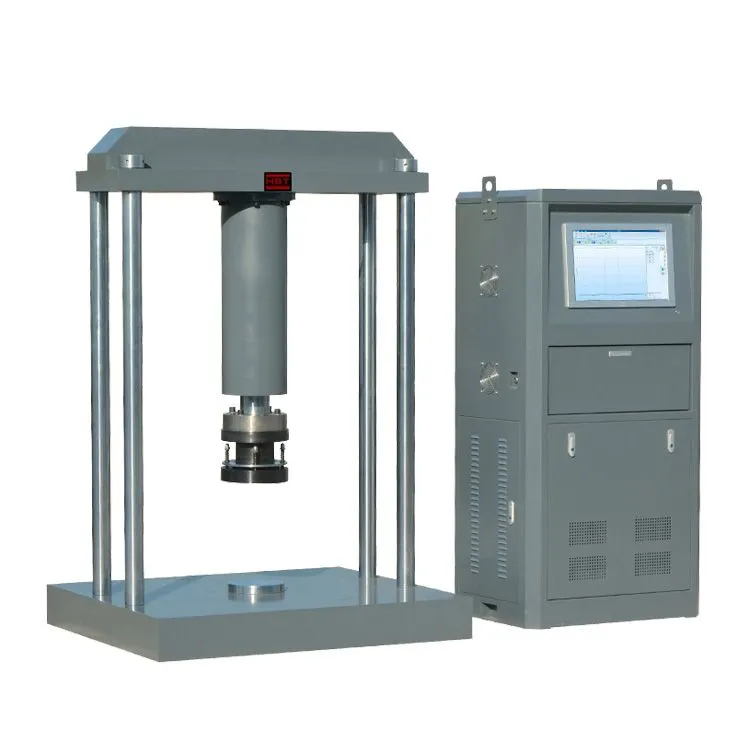

Help CenterHST HYJ-600W Hydraulic Press Tester Computer Control Manhole Cover Compression Testing Machine
Related Products
-
YAW-300C Computer Control Constant Stress Brick/concrete Flexural and Compression Testing MachineUS$ 3000 - 6000MOQ: 1 Set -
500kn 600kn 60ton 1000kn Computer Controlled Hydraulic Manhole Cover Compression Testing MachineUS$ 25892.23MOQ: 1 Set
-
100kn 300kn Compressive Strength Test Machine for Iron Ore PelletUS$ 9097.27 - 9797.06MOQ: 1 Set
-
YES-3000 3000kN Digital Display Manual Concrete Cement Compressive Strength/ Compression Testing MachineUS$ 11196.64 - 11546.54MOQ: 1 Set
-
YES-5000E 5000kN 500t Concrete Block Compressive Strength Testing MachineUS$ 55000 - 60000MOQ: 1 Set

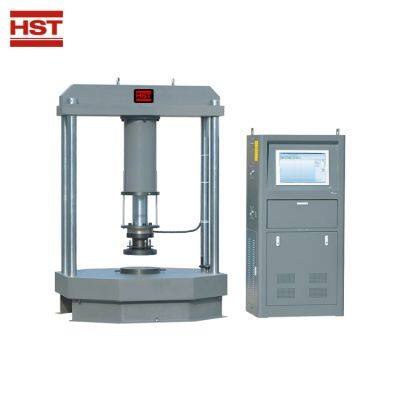

HYJ-600S 600kn 60Ton Digital Display Manhole Cover Pressure Compression Testing Machine
Contact information: Skype:hstbetty009 Wechat/Whatsapp:86-15866781190
1. Main Application
The digital manhole cover pressure testing machine is designed and manufactured according to the industry or national standards of CJ/T3012-1993 cast iron inspection manhole cover, CJ/T121-2000 recycled resin composite material inspection manhole cover, CJ/T211-2005 polymer matrix composite inspection manhole cover, JC889-2001steel fiber concrete inspection manhole cover, GB/T 23857-2009 inspection manholecover, CJ/T3012 CJ/T511-2017cast iron inspection manhole cover etc., for the test of bearing capacity and deformation of manhole cover. Its structural properties meet the requirements of the test code.
2. Features
2.1. Mainframe adopts high stiffness structure to ensure the safety during the test.
2.2. Liquid crystal display controller, manual oil supply valve, drive hydraulic cylinder, load sensor to detect the test force of the specimen. Stable and reliable performance, accurate data detection.
2.3. The high performance load frame of the testing machine. Door force frame, light weight, high stiffness, smooth operation.
2.4. Hydraulic loading mode is adopted to realize the wide range adjustment of test speed, and the test process is stable and efficient.
2.5. Operation space is large, easy to operate during the test. The cylinder and piston are sealed with special material to achieve high sealing, low friction and long life.
2.6. Select the ultra-precision oil filter to ensure the cleaning of the oil system and ensure the long-term operation of the control actuator.
2.7. Digital display table display, real-time display of current force values, peaks, etc.
3. Main Technical Parameters
|
Model |
HYJ-600S |
HYJS-1000S |
|
Max test force (kn) |
600 |
1000 |
|
Effective test space(mm) |
1200×1200 |
|
|
Table height(mm) |
200 |
|
|
Force accuracy |
±1% |
|
|
Max. piston moves speed |
80 mm/min |
|
|
Maximum compression space |
400 mm |
|
|
|
Φ 360 (GB Standard) or 250 (Europe standard) |
|
|
Deformation measuring range (mm) |
0-20 |
|
|
Piston stroke
|
350 mm |
|
|
Power supply |
380V/220V 1.5kw |
|
|
Mainframe dimensions (length × width × height) (mm) |
2400×1200×1400 |
|
