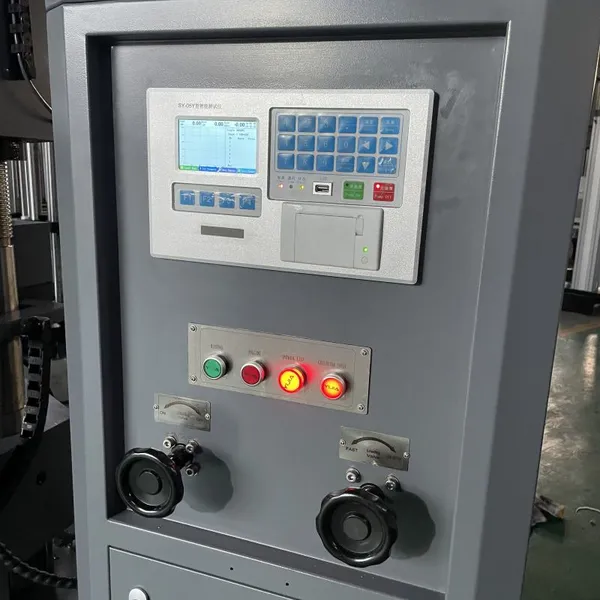

YES-5000E 5000kN big space concrete Testing Machine
1. Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Main Specifications
|
Model |
YES-1000E YES-2000E |
YES-3000E |
|
Max. load |
1000kN / 2000KN |
3000kN |
|
Piston stroke |
200mm |
200mm |
|
Distance between upper and lower platen |
600mm |
650mm |
|
Upper and lower platen size |
Φ300mm |
Φ300mm |
|
Machine Class |
1 class |
|
|
Range of test force |
4% ~100%FS |
|
|
Host Structure |
Double electric screw ball adjust test space |
|
|
Indicating value accuracy |
±1% |
|
|
Display |
LCD |
|
|
Power supply |
AC380V/50Hz/3 phase(can be customized) |
|
|
Size |
900×400×1150 mm |
|
|
Weight |
750kg |
|
