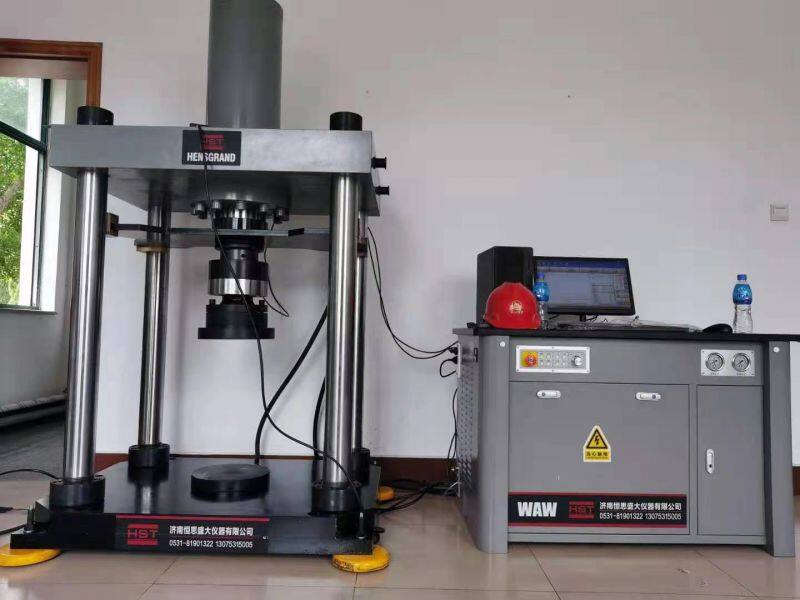

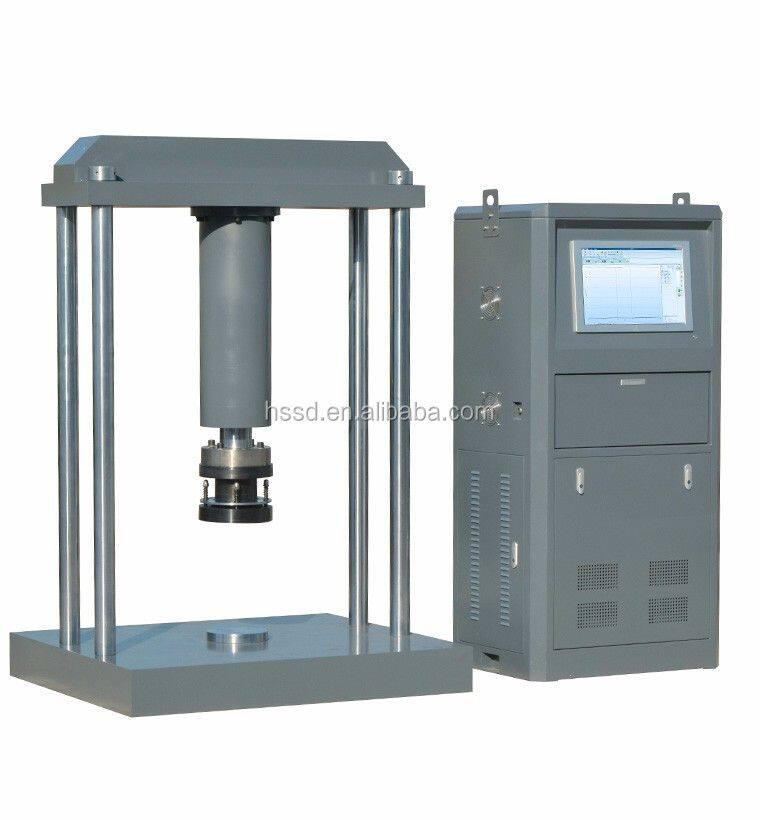

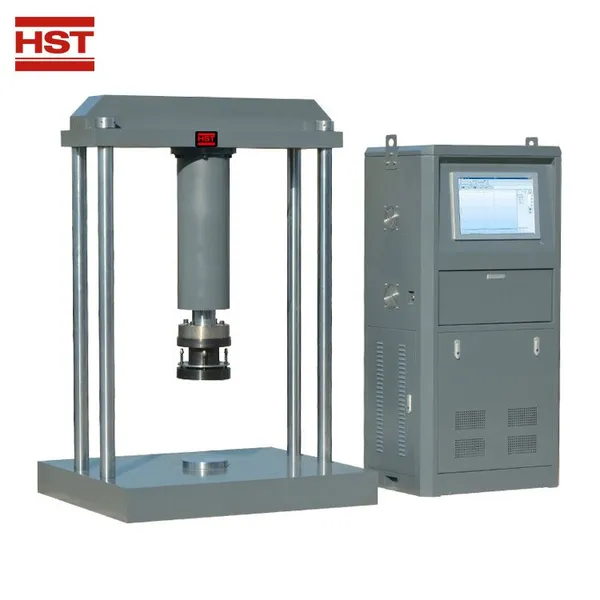

500kn 600kn 60ton 1000kn computer controlled hydraulic Manhole Cover Compression Testing Machine
Compression testing machine application:
The digital manhole cover pressure testing machine is designed and manufactured according to the industry or national standards of CJ/T3012 1993 cast iron inspection manhole cover, CJ/T121-2000 recycled resin composite material inspection manhole cover, JC889-2001 steel fiber concrete inspection manhole cover, GB/T 23857-2009 inspection manhole cover, etc., for the test of bearing capacity and deformation of manhole cover. Its structural properties meet the requirements of the test code.
Main Specifications:
|
Model |
YJW-500 600 1000 |
|
|
Max test force (kn) |
500 600 1000 |
|
|
Effective test space(mm) |
1200×1200 |
|
|
Table height(mm) |
200 |
|
|
Force accuracy |
±1% |
|
|
Load speed adjustment range (kn/s) |
0.1~30 Manual stepless speed regulation) |
|
|
Piston stroke(mm) |
300 |
|
|
Deformation measurement range:(mm) |
0-20 |
|
|
Deformation measurement resolution (mm) |
0.01 |
|
|
Load indication accuracy(kn) |
0.1 |
|
|
Loading mode |
electric hydraulic |
|
|
Load control mode |
manual stepless speed regulation. |
|
|
Loading medium |
68# antiwear hydraulic oil |
|
|
Motor power(kw) |
1.5 |
|
|
Power supply |
380V/220V |
|
|
Mainframe dimensions (length × width × height) (mm) |
2400×1200×1400 |
|
English language dispaly control pannel:
English Test Report:
CE certificate:
