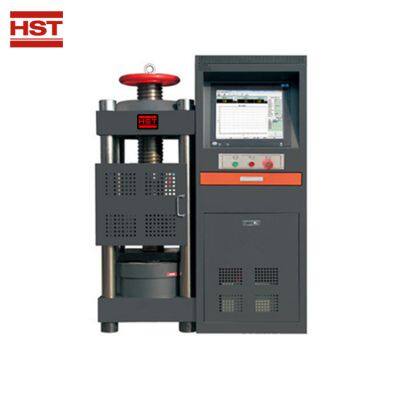

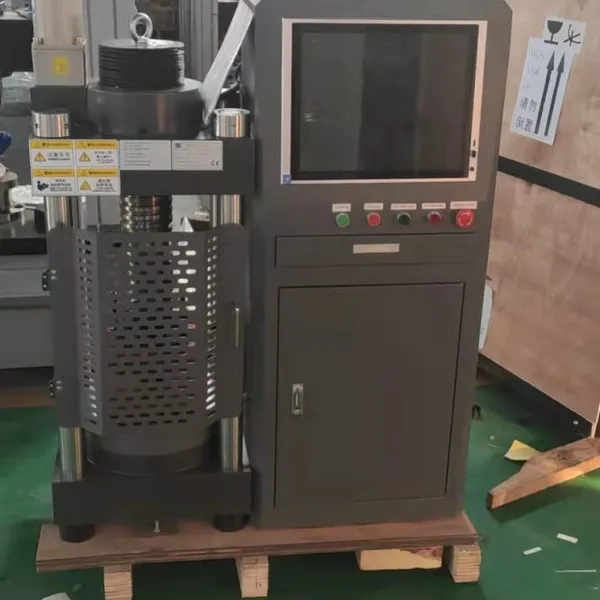

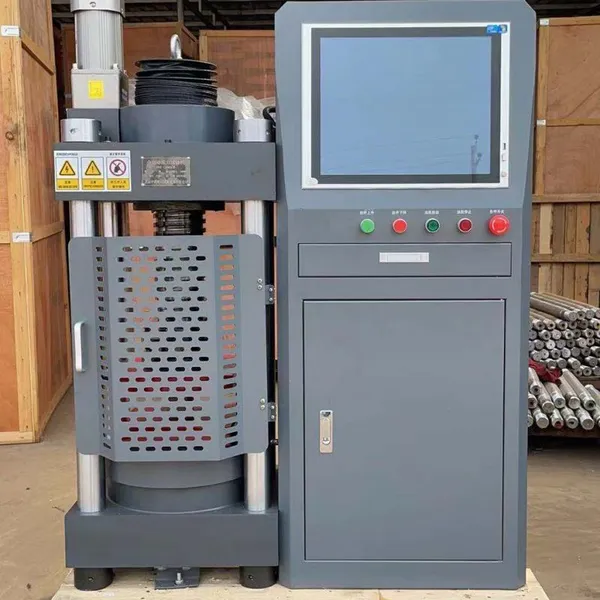

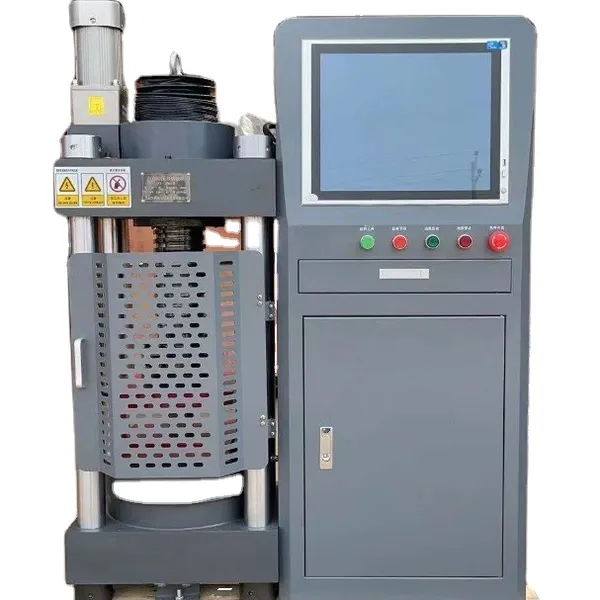

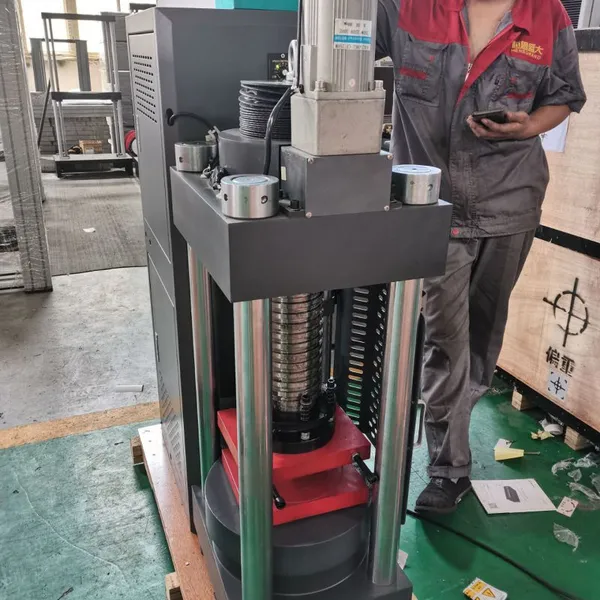

YAW-2000D Computerized 200Ton Concrete Compression Testing Machine
1. Application
This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes.
1. Standards:
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
2. Applicable Specimen size:
Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more;
Rectangular sample: 400x200x200mm, 400x200x400mm etc;
Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per customer required.
Remark: test space & compression platen can be customized according to specified specimen size.
3. Technical parameters
|
Model |
YAW-2000S |
YAW-2000D |
YAW-3000D |
|
Max. Load |
2000kN |
2000kN |
3000kN |
|
Control method |
Computer auto control loading process |
||
|
Test space adjustment mode |
YAW-2000S Manual screw adjust YAW-2000D /YAW-3000D Electric ball screw adjust |
||
|
Test class |
1 class |
||
|
Load measuring range |
4-100% of F.S |
||
|
Load accuracy |
±1.0% |
||
|
Upper compression platen (mm) |
220x250 |
220x250 |
|
|
Lower compression platen (mm) |
220x250 |
220x250 |
|
|
Piston stroke(mm) |
50 |
50 |
|
|
Distance between upper and lower plate |
320mm |
320mm |
|
|
Power supply |
AC380V/220V |
||
|
Overall dimension (mm) |
1200x450x1150 |
1200*600*1200 |
|
|
Weight (kg) |
1000 |
||
