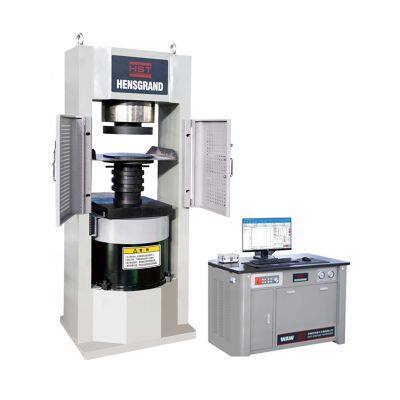

HST YAW-3000DH Fully automatic 3000kN high stability compression and flexural test machine
1. Application
This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal. With new design idea and advanced technology, this series have more advantages in appearance, operation & applications. It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes.
2.Standards:
It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500- 1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
3. Technical parameters
|
Model |
YAW-2000DH |
YAW-3000DH |
|
Measurement parameters |
||
|
Max. Load(compression) |
2000kN |
3000kN |
|
Control method |
Computer auto control loading process |
|
|
Test class |
1 class |
|
|
Load measuring range |
2- 100% of F.S |
|
|
Resolution of test power |
1/500000 F.S |
|
|
Load accuracy |
± 1.0% |
|
|
Displacement measurement |
0.01mm |
|
|
Displacement measurement accuracy |
≤±0.5% |
|
|
Host parameters |
||
|
Distance between columns (mm) |
380 |
550 |
|
Upper compression platen (mm) |
φ300 |
φ300 |
|
Lower compression platen (mm) |
φ300 |
φ320 |
|
Distance between columns(mm) |
430 |
430 |
|
Piston stroke(mm) |
150 |
120 |
|
Piston diameter (mm) |
Φ270 |
Φ370 |
|
Maximum compression space(mm) |
230 |
320 |
|
System pressure (Mpa) |
35 |
35 |
|
Control parameters |
|
|
|
Force control speed range |
0.001%~5%FS/s |
|
|
Force control retention accuracy |
±0.002% F.S |
|
|
Deformation control speed range |
0.001%~5%FS/s |
|
|
Deformation control retention accuracy |
≤±0.002%F.S |
|

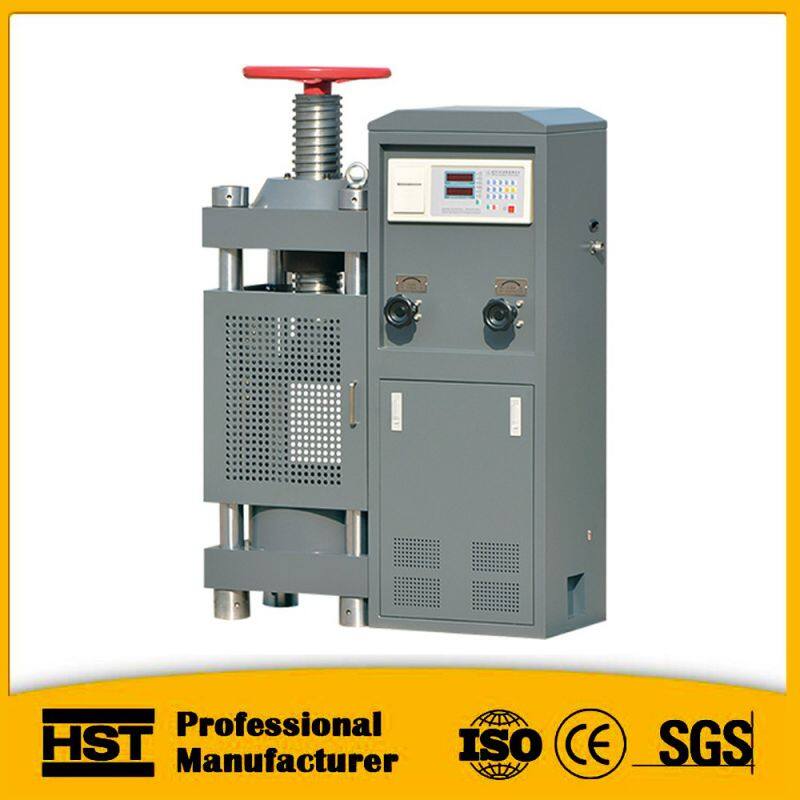

YES-1000 Digital Display Compression Testing Machine YES-2000D Digital Compression Testing Machine
