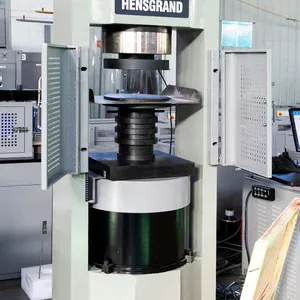

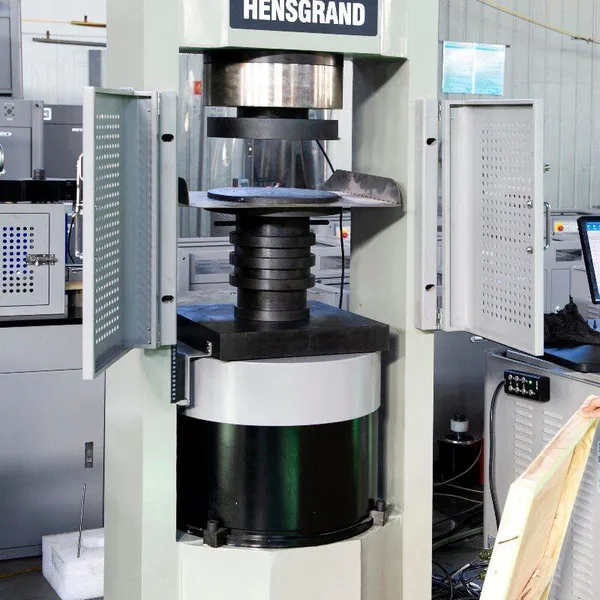

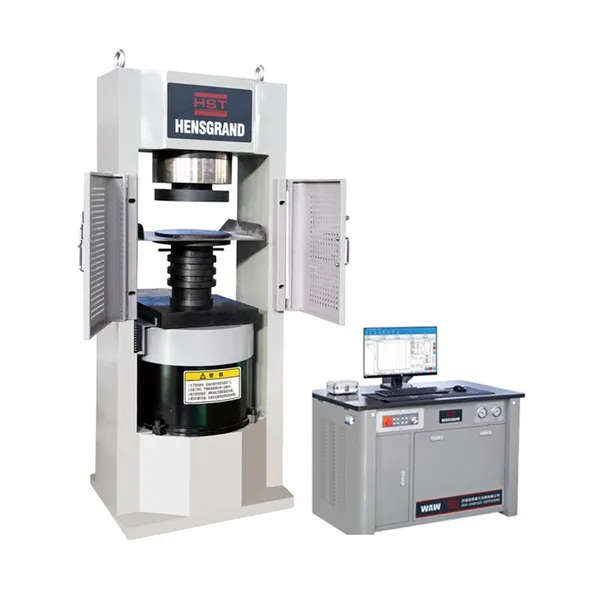

5000KN Full Automatic Concrete Compression Testing Machine/Concrete Compressive Strength Testing Machine
US$ 176347.08
≥1 Set
Key Specifications
Get Latest Price
Warranty:
12 Months, 1 year
Model Number:
YAW-DH
Brand Name:
HST or OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YAW-DH 2000 KN 3000 KN 5000 KN Laboratory Equipment Computer Control Concrete Compression Pressure Testing MachineUS$ 176347.08MOQ: 1 Set -
HST 2000KN Digital Display Concrete Compression Testing MachineUS$ 11546.54 - 11896.43MOQ: 1 Set
-
YAW-3000DH Fully Automatic 3000kN High Stability Compression and Flexural Test MachineUS$ 83974.80MOQ: 1 Set
-
1000kN - YAW-3000DH 3000kN High Accuracy Concrete Testing Compression Machine Compressive Testing MachineUS$ 80475.85 - 83974.80MOQ: 1 Set
-
HST 2000kn Concrete Compressive Strength Testing Machine Concrete Compression Testing PressUS$ 10496.85 - 13995.80MOQ: 1 Set
Warranty
12 Months, 1 year
Model Number
YAW-DH
Brand Name
HST or OEM
Place of Origin
Shandong, China
Certificate
CE ISO
delivery
5 days after get payment
Max. Load
2000kn
Range of test force
4% ~100%FS
Control method
Computer auto control loading process
Test space adjustment mode
Electric ball screw adjust(manual for option)
Oil source control cabinet structure
One-piece oil source control cabinet
Load display accuracy
Better than ±1%
Piston stroke
50mm
Customized support
OEM, ODM
Power
Hydraulic
Product Description
1. Application
This machine is an important instrument for testing the physical properties, structural properties and internal and external defects of various concrete materials and their products. It can realize the compression type test of metal or non-metal materials, can automatically obtain the compressive strength and other performance indicators of the measured material, and can complete the closed-loop control of constant rate loading, constant rate deformation, constant rate displacement, constant rate strain, etc. .
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
This machine is an important instrument for testing the physical properties, structural properties and internal and external defects of various concrete materials and their products. It can realize the compression type test of metal or non-metal materials, can automatically obtain the compressive strength and other performance indicators of the measured material, and can complete the closed-loop control of constant rate loading, constant rate deformation, constant rate displacement, constant rate strain, etc. .
2.Standards:
ISO 679, DIN 1164: Cement -- Test methods -- Determination of strength;
ASTM C348: Standard Test Method for Flexural Strength of Hydraulic Cement Mortars;
ASTM C349: Standard Test Method for Compressive Strength of Hydraulic-Cement Mortars (Using Portions of Prisms Broken in Flexure);
ASTM C109 / C109M: Standard Test Method for Compressive Strength of Hydraulic Cement Mortars; BS EN 196- 1: Methods of testing
cement. Determination of strength;
ASTM C880 / C880M: Standard Test Method for Flexural Strength of Dimension Stone; ASTM C170 / C170M: Standard Test Method for
Compressive Strength of Dimension Stone;
EN12390-5 BS 1881: 1 18, ASTM C78, C293, ASHTO T97: Testing hardened concrete. Flexural strength of test specimens.
3.Specification:
Model |
YAW-1000DH YAW-2000DH |
YAW-3000DH |
|
Max compression test force(kN) |
1000kN 2000kN |
3000 |
|
Max bending test force(kN) |
// |
/ |
|
Test Accuracy |
CLASS 1 (ISO 7500- 1) |
||
Test measurement range |
2%- 100%FS |
||
Control way |
Computer control auto loading progress |
||
Frame effective span |
550MM |
||
Piston diameter |
370MM |
||
pressure plate size |
350MM |
||
Max compression space |
320mm |
||
Company Profile

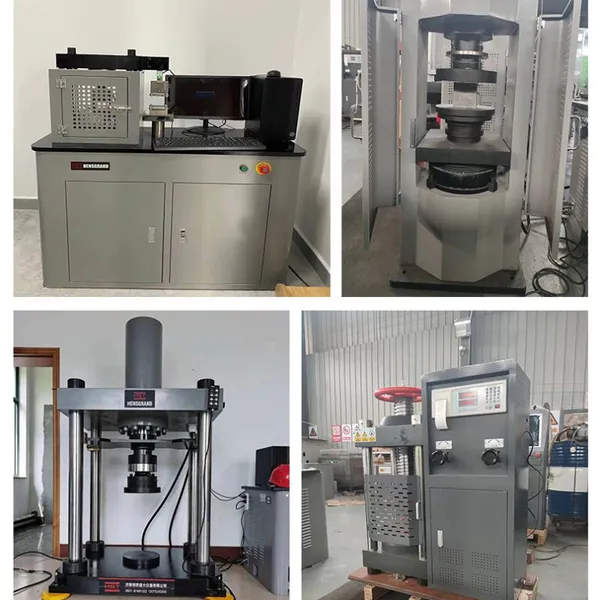

Customer Photos
