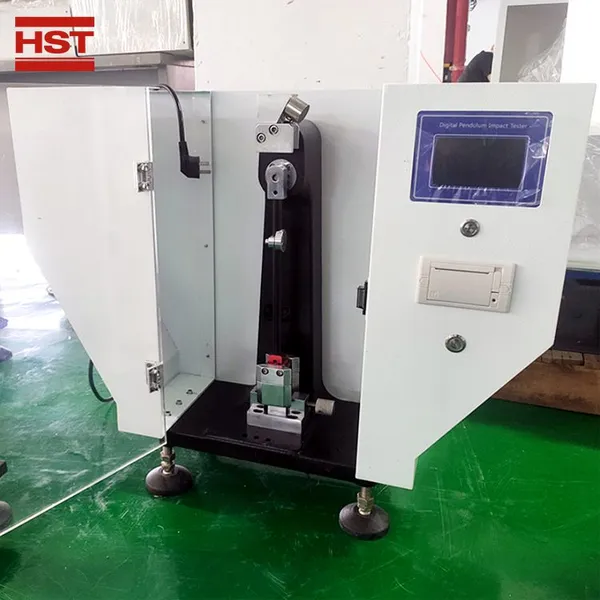

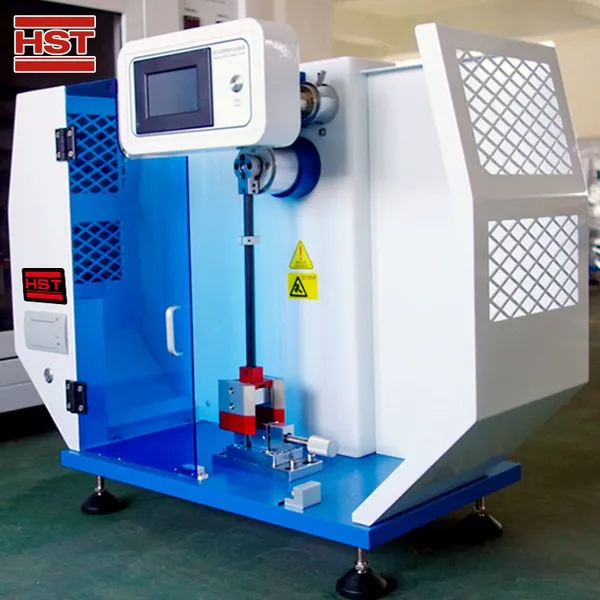

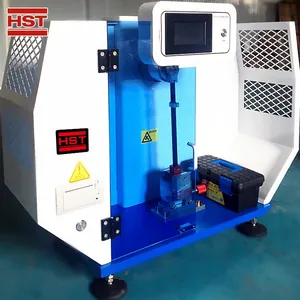

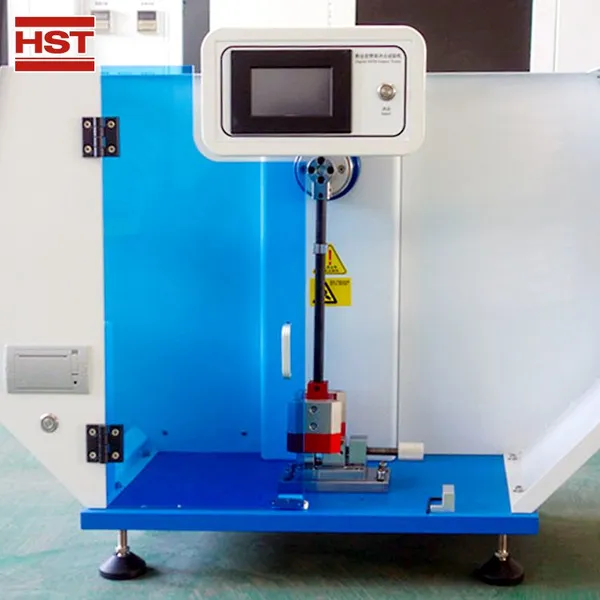

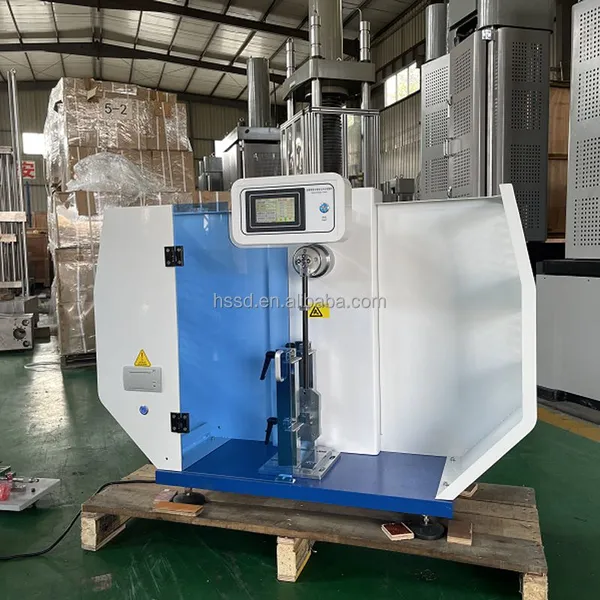

HST Analog Impact Test Apparatus Plastic Izod Charpy Impact Tester Rubber Impact Strength Testing Machine
US$ 17494.75
1 - 4 Set
US$ 13995.80
≥5 Set
Key Specifications
Get Latest Price
Type:
Impact Testing Machine
brand name:
HST
place of origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CST-50 U V 2mm Metal Impact Specimen Notch ProjectorUS$ 800 - 1200MOQ: 1 Set -
HST CST 50 UV Type Impact Sample Notch Projector Charpy Notch Detector ProjectorUS$ 7697.69 - 9097.27MOQ: 1 Set
-
DWC-60 -60 Degree Charpy Impact Test Cooling Low Temperature Chamber Impact Sample FreezerUS$ 10216.94 - 10496.85MOQ: 1 Set
-
Impact Testing Sample Cooling Chamber/Low Temperature Impact Testing Specimen ChamberUS$ 10216.94 - 10496.85MOQ: 1 Set
-
DWC-60 DWC-80 DWC-100 CDW-196 Low Temperature Tester Cooling Chamber for Charpy v Notch Impact TestUS$ 10216.94 - 10496.85MOQ: 1 Set
Type
Impact Testing Machine
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM
power
1kw
Protection Class
IP55
Voltage
220 V
Logo/graphic design
Transfer Sticker
Impact Energy
50 J
Impact Speed
3.8m/s
Distance
380mm
Rising Angle Of Pendulum
160°
Supporting Distance
40mm, 60mm, 70mm, 95mm
Round Angle Of The Jaw
R=1±0.1mm
Impact Blade Angle
30±l°
Round Angle Of Impact Cutting Edge
R=2±0.5mm
5J 50J High Quality High Accuracy Plastic Izod Impact Test Machine Device
1.Applications:
XJJ-50 Dial Display Plastic Charpy Impact Testing Machine is pointer dial, electric hammer block release.
Application: hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic, ceramic, asbestos etc. nonmetal materials for impact test.
2.Standard:
JB/T8761,GB/T1043,ISO179 and so on.
3.Technical Parameter:
|
Model |
XJJ-50 |
|
|||
|
Impact Energy |
50 J |
||||
|
Pendulum Torque (Standard Configuration Is One Pendulum) |
7.5 J Pendulum PL=3.8662Nm |
15 J Pendulum PL=7.7324Nm |
25 J Pendulum PL=12.8888Nm |
50 J Pendulum PL=25.777Nm |
|
|
Impact Speed |
3.8m/s |
||||
|
Pendulum Angle |
160° |
||||
|
Span Of Support(mm) |
40mm |
60mm |
70mm |
95mm |
|
|
Round Angle Of The Jaw |
R=1±0.1mm |
||||
|
Round Angle Of Impact Cutting Edge |
R=2±0.5mm |
||||
|
Impact Blade Angle |
30±l° |
||||
|
The Distance Between PendulumCenter And Sample Center |
380mm |
||||
