HST CST 50 UV Type Impact Sample Notch Projector Charpy Notch Detector Projector
US$ 9097.27
1 - 4 Set
US$ 7697.69
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
brand name:
HST
place of origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DWC-60 -60 Degree Charpy Impact Test Cooling Low Temperature Chamber Impact Sample FreezerUS$ 10216.94 - 10496.85MOQ: 1 Set -
Impact Testing Sample Cooling Chamber/Low Temperature Impact Testing Specimen ChamberUS$ 10216.94 - 10496.85MOQ: 1 Set
-
DWC-60 DWC-80 DWC-100 CDW-196 Low Temperature Tester Cooling Chamber for Charpy v Notch Impact TestUS$ 10216.94 - 10496.85MOQ: 1 Set
-
Jb-300b 300j Impact Tester 300J Semi-Automatic Charpy Impact Test Machine Dial Charpy Impact Testing MachineUS$ 20293.91 - 20643.81MOQ: 1 Set
-
ASTM E23 ISO 148 JBW-500CY 500J Metallic Materials Charpy Pendulum Impact Testing MachineUS$ 20643.81 - 20923.73MOQ: 1 Set
brand name
HST
place of origin
China
customized support
OEM
power
1KW
Protection Class
IP55
Voltage
220 V
Logo/graphic design
Transfer Sticker
Diameter of the Screen
200mm
Magnification of the instrument
50 X
Objective magnification
2.5X
type
profile projector
Working table square shape
110x125mm
Diameter of round worktable
90mm
Diameter of working screen
70mm
Scope of revolving of the worktable
360°
Eye-field diameter
3.8mm
Working distance
22.89mm
Product Description
Title goes here.
1. Application

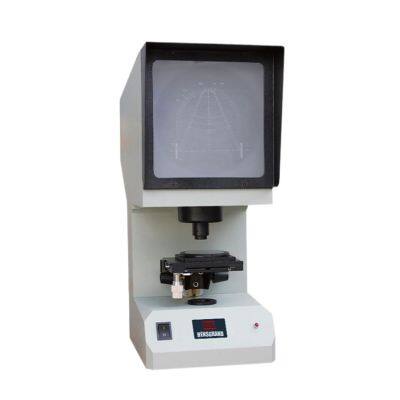

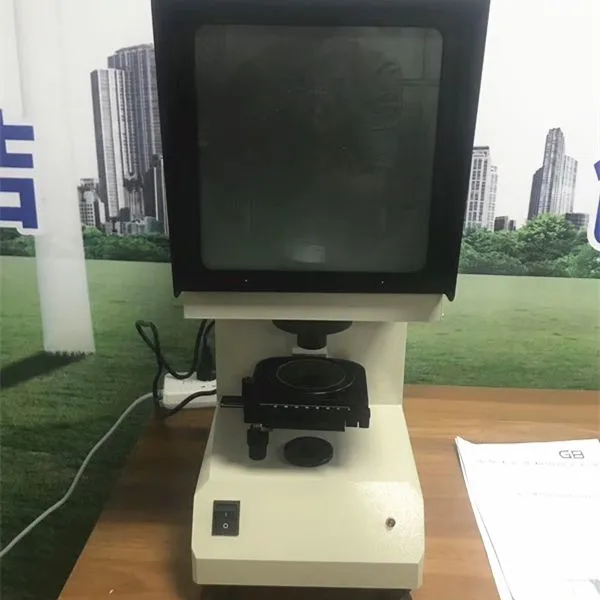

CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.
Diameter of the Screen |
200mm |
Magnification of the instrument |
50X |
Objective magnification |
2.5X |
Working table square shape |
1 10x125mm |
Diameter of round worktable |
90mm |
Diameter of working screen |
70mm |
Stroke of working table |
Longitude: ± 10mm,Latitude: ± 10mm, Rise and fall: ± 12mm |
Eye-field diameter |
3.8mm |
Working distance |
22.89mm |
Scope of revolving of the worktable |
360° |
Power supply |
220V, 60HZ, 150W |
Dimension |
515×224×603mm |
Light source(tungsten halogen lamp) |
12V, 100W |
Weight |
18kg |
Recommend Products
CST-50 |
VU-2Y |
DWC -40/60/80/100 |
Projector for Impact Specimen |
Electric Hydraulic Broaching Machine |
impact test temperature chamber |
