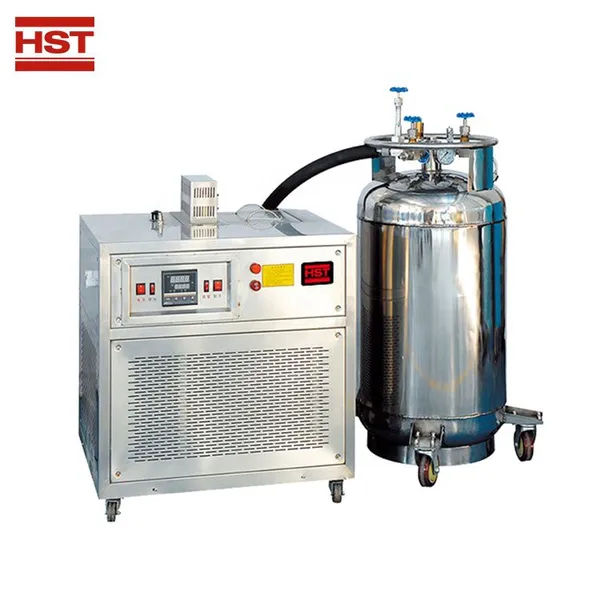

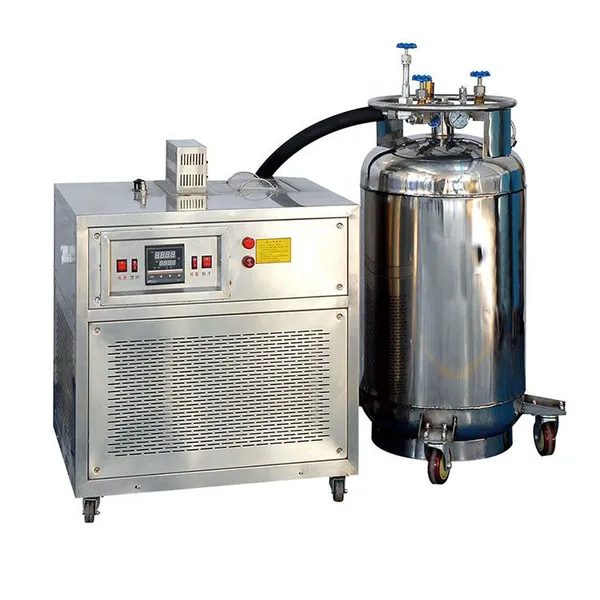

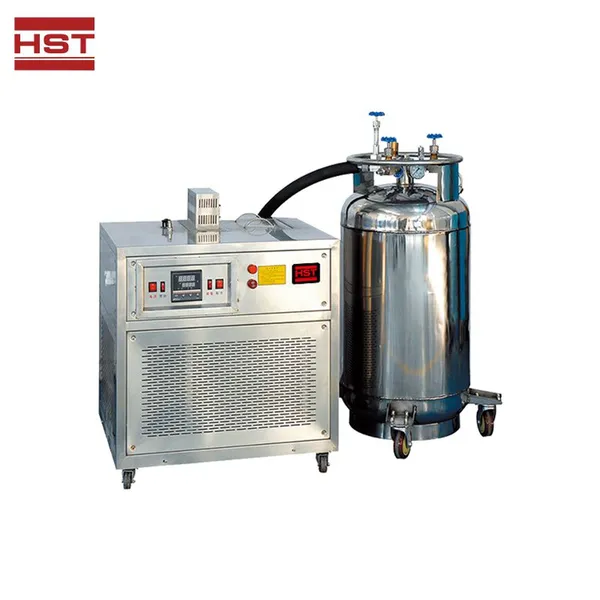

Impact Testing Sample Cooling Chamber/Low Temperature Impact Testing Specimen Chamber
US$ 10496.85
1 - 2 Set
US$ 10216.94
≥3 Set
Key Specifications
Get Latest Price
Type:
Impact Testing Machine
Accuracy:
/
brand name:
Hensgrand HST KASON
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DWC-60 DWC-80 DWC-100 CDW-196 Low Temperature Tester Cooling Chamber for Charpy v Notch Impact TestUS$ 10216.94 - 10496.85MOQ: 1 Set -
Jb-300b 300j Impact Tester 300J Semi-Automatic Charpy Impact Test Machine Dial Charpy Impact Testing MachineUS$ 20293.91 - 20643.81MOQ: 1 Set
-
ASTM E23 ISO 148 JBW-500CY 500J Metallic Materials Charpy Pendulum Impact Testing MachineUS$ 20643.81 - 20923.73MOQ: 1 Set
-
HST-JBDW-300CY-80 300j Computer Control Low Temperature Automatic Impact Testing Machine(-80℃) 300J Impact Testing MachineUS$ 12300 - 14800MOQ: 1 Set
-
HST JBDW-750CY-60 750j Low Temperature Computer Automatic Impact Testing Machine(-60℃) 750j Impact Testing Machine(-60℃)US$ 12240 - 14400MOQ: 1 Set
Type
Impact Testing Machine
Accuracy
/
brand name
Hensgrand HST KASON
place of origin
Shandong, China
Application
Impact Testing, cooling and keeping temperature to impact specimen
customized support
OEM, ODM, OBM
power
/
Protection Class
/
Voltage
380 V
warranty
1 Year
Logo/graphic design
Hot Stamping, Transfer Sticker, Laser Engraving
Product name
DWC-196 -196 degreeLow Temperature Chambe
Cooling range
-196°C
Constant temperature accuracy
±2°C
Temperature dropping speed
2°C ~5°C/min
Box Material
Steel Spray
Cooling medium
Liquid nitrogen
Certificate
CE certificate
Max. Dimension
900*660*650 mm
Dimension of the liquid nitrogen tank
1000*600*600 mm
Product Description
Title goes here.
This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
Model |
DWC-196 |
Cooling range |
+30°C ~-180°C |
Constant temperature accuracy |
±3°C |
Temperature dropping speed |
2°C ~5°C / min |
Max. Dimension |
900×660×650 mm |
Dimension of the liquid nitrogen tank |
1000×600×600 mm |
Effective working space |
240×150×150mm(huge stainless steel refrigerator) |
Specimens amount |
60 (Impact Specimens Size: 10×10×55mm) |
Digital timer |
1min~9999min(Resolution:1min) |
Cooling medium |
Liquid nitrogen |
Power supply |
220V~240V, 50HZ, 2.5KW |
