Home > Instruments & Meters > Test Instrument > Test Machine > CST-50 U V 2mm Metal Impact Specimen Notch Projector
US$ 800 - 1200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
CLASS1
brand name:
hensgrand
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST CST 50 UV Type Impact Sample Notch Projector Charpy Notch Detector ProjectorUS$ 7697.69 - 9097.27MOQ: 1 Set -
DWC-60 -60 Degree Charpy Impact Test Cooling Low Temperature Chamber Impact Sample FreezerUS$ 10216.94 - 10496.85MOQ: 1 Set
-
Impact Testing Sample Cooling Chamber/Low Temperature Impact Testing Specimen ChamberUS$ 10216.94 - 10496.85MOQ: 1 Set
-
DWC-60 DWC-80 DWC-100 CDW-196 Low Temperature Tester Cooling Chamber for Charpy v Notch Impact TestUS$ 10216.94 - 10496.85MOQ: 1 Set
-
Jb-300b 300j Impact Tester 300J Semi-Automatic Charpy Impact Test Machine Dial Charpy Impact Testing MachineUS$ 20293.91 - 20643.81MOQ: 1 Set
Accuracy
CLASS1
brand name
hensgrand
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
0.1KW
Protection Class
IP55
Voltage
220 V
warranty
3 years
Logo/graphic design
Hot Stamping
Product name
2mm metal Impact Specimen Notch Projector
Diameter of the Screen
200mm
magnification of the instrument
50x
Objective magnification
2.5X
Diameter of round worktable
90mm
Working table square shape
110x125mm
Stroke of working table
Longitude: ±10mm,Latitude: ±10mm,Rise and fall: ±12mm
Eye-field diameter
3.8mm
Working distance
22.89mm
Scope of revolving of the worktable
360°
Product Description

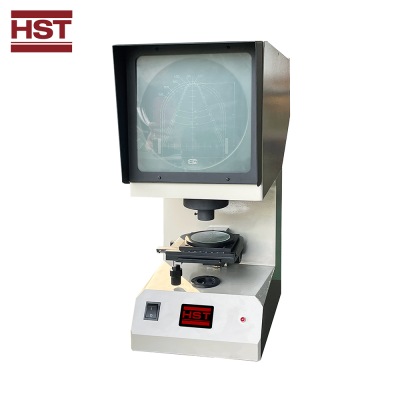

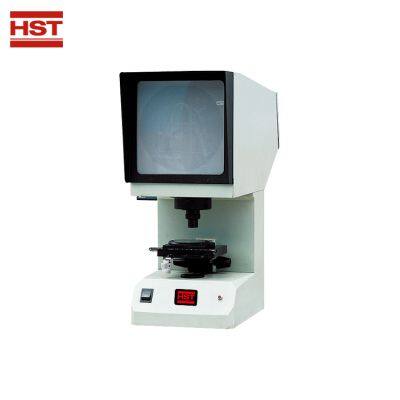

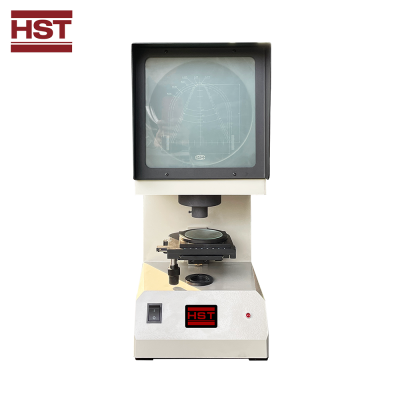

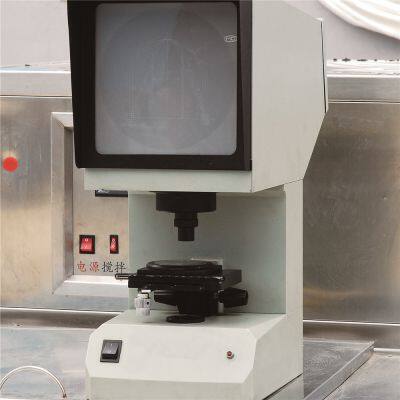

2mm metal Impact Specimen Notch Projector
1. Application
CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.
Diameter of the Screen | 200mm |
Magnification of the instrument | 50X |
Objective magnification | 2.5X |
Working table square shape | 1 10x125mm |
Diameter of round worktable | 90mm |
Diameter of working screen | 70mm |
Stroke of working table | Longitude: ± 10mm,Latitude: ± 10mm, Rise and fall: ± 12mm |
Eye-field diameter | 3.8mm |
Working distance | 22.89mm |
Scope of revolving of the worktable | 360° |
Power supply | 220V, 60HZ, 150W |
Dimension | 515×224×603mm |
Light source(tungsten halogen lamp) | 12V, 100W |
Weight | 18kg |
