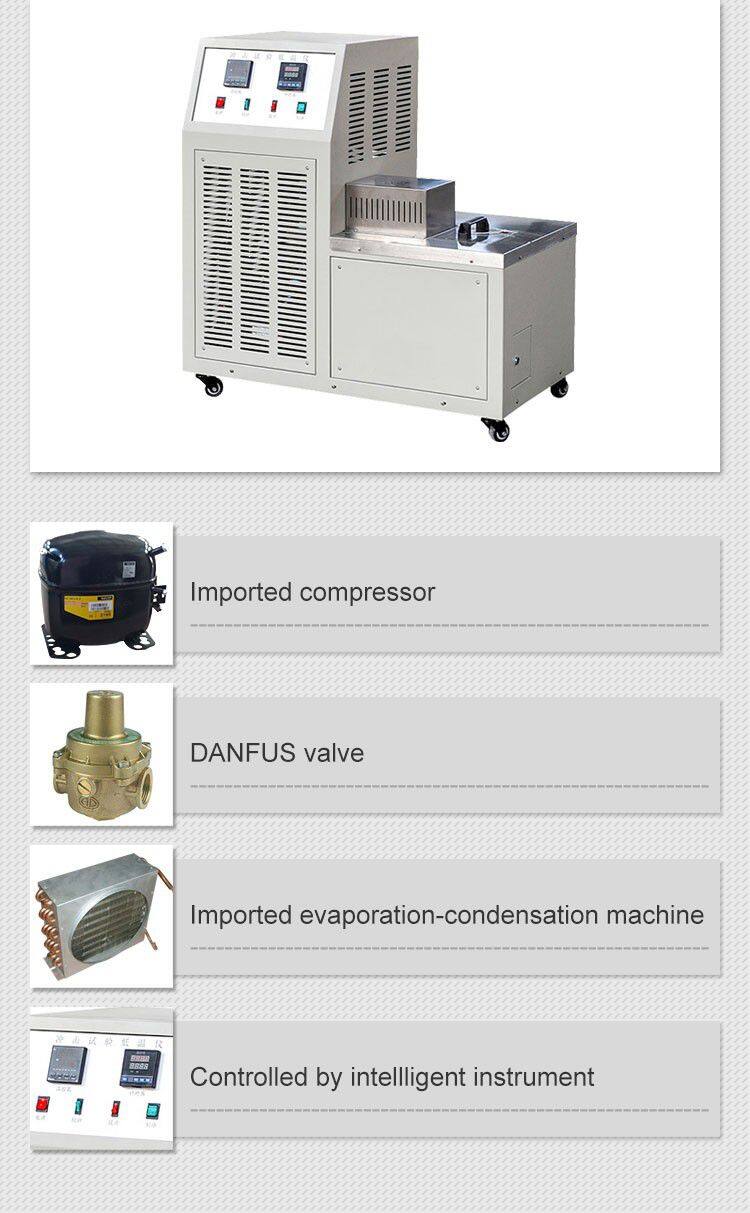

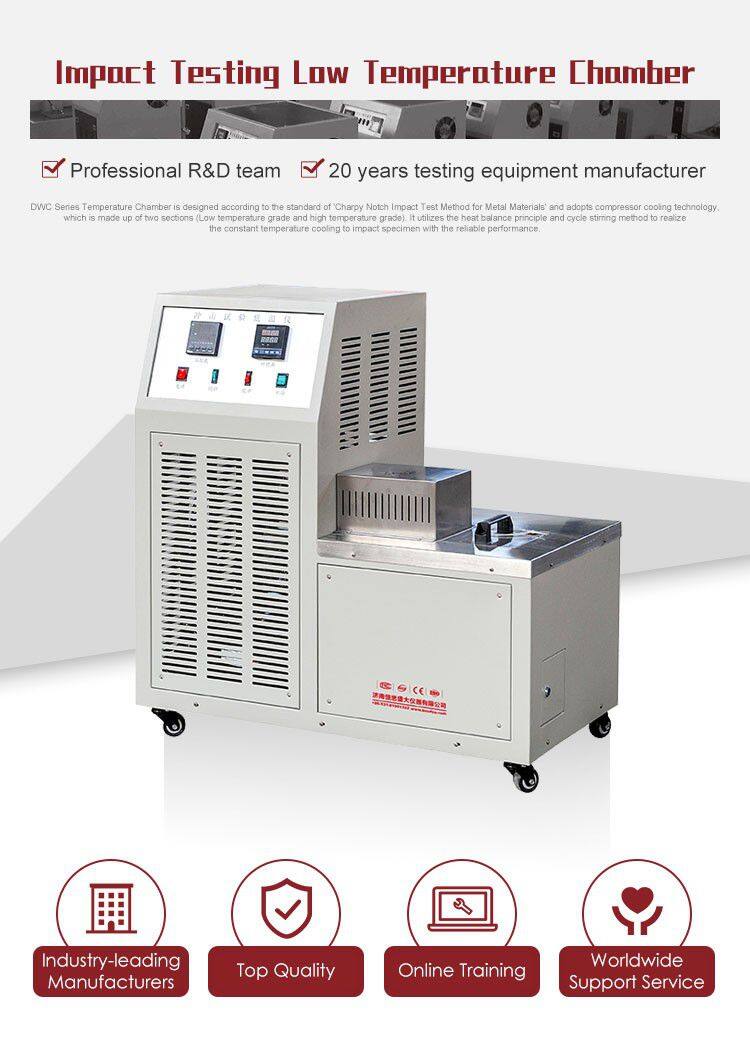

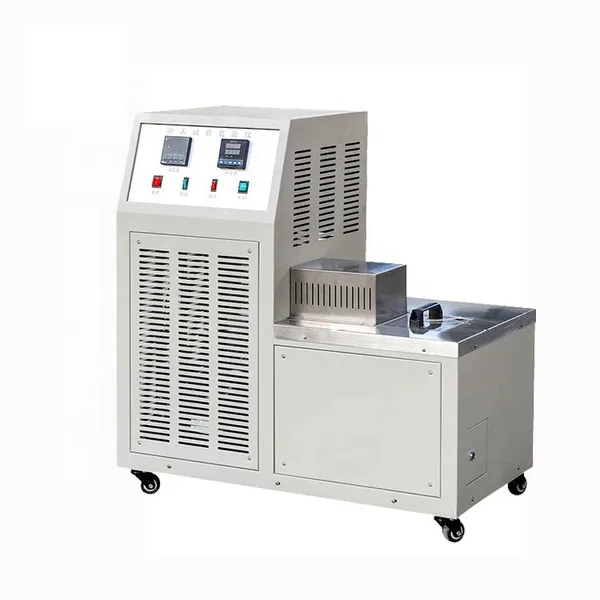

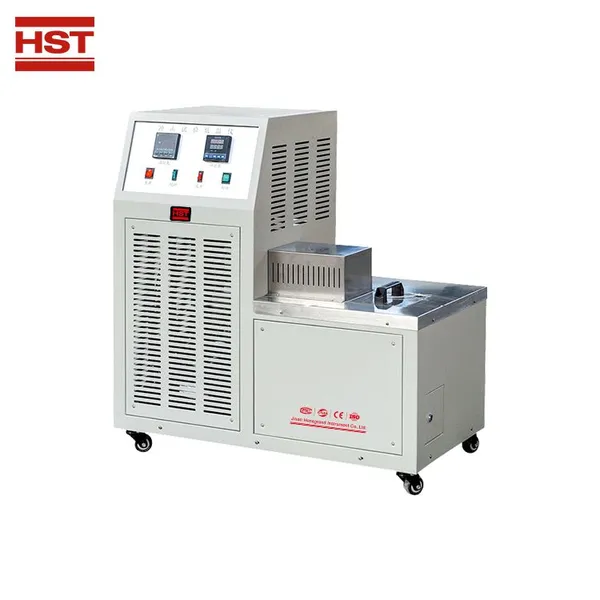

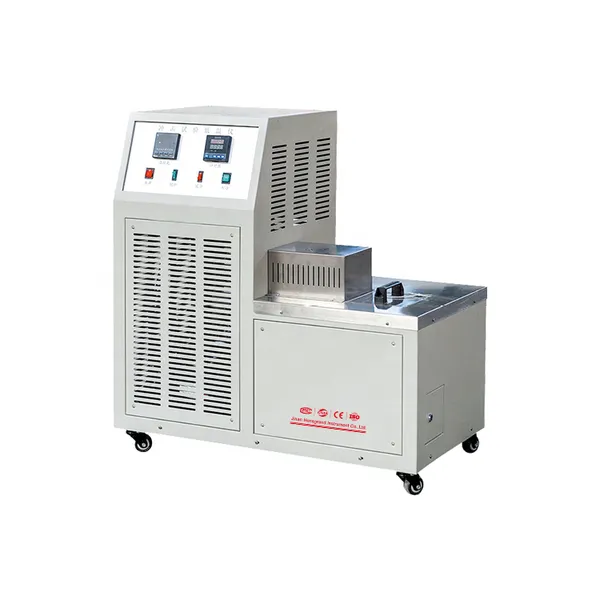

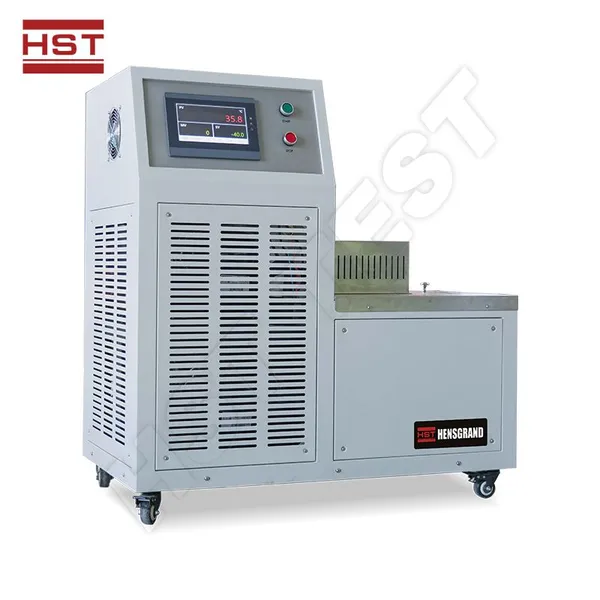

Help CenterDWC-60 -60 Degree Charpy Impact Test Cooling Low Temperature Chamber Impact Sample Freezer
Related Products
-
Impact Testing Sample Cooling Chamber/Low Temperature Impact Testing Specimen ChamberUS$ 10216.94 - 10496.85MOQ: 1 Set -
DWC-60 DWC-80 DWC-100 CDW-196 Low Temperature Tester Cooling Chamber for Charpy v Notch Impact TestUS$ 10216.94 - 10496.85MOQ: 1 Set
-
Jb-300b 300j Impact Tester 300J Semi-Automatic Charpy Impact Test Machine Dial Charpy Impact Testing MachineUS$ 20293.91 - 20643.81MOQ: 1 Set
-
ASTM E23 ISO 148 JBW-500CY 500J Metallic Materials Charpy Pendulum Impact Testing MachineUS$ 20643.81 - 20923.73MOQ: 1 Set
-
HST-JBDW-300CY-80 300j Computer Control Low Temperature Automatic Impact Testing Machine(-80℃) 300J Impact Testing MachineUS$ 12300 - 14800MOQ: 1 Set

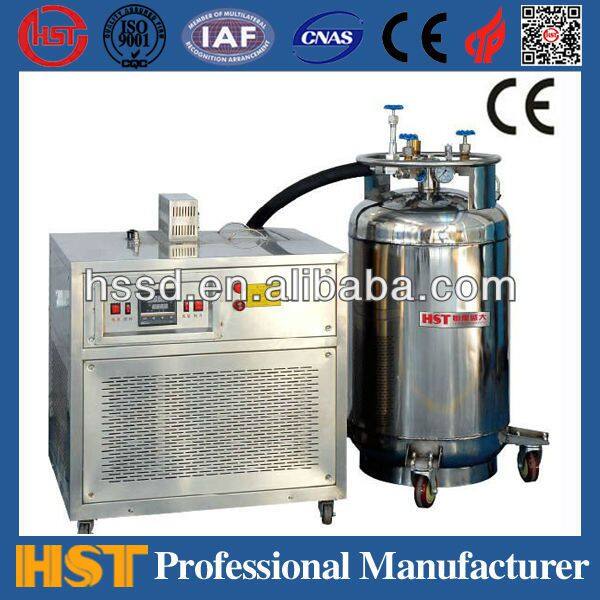

constant low temperature chamber DWC-196
This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
Standards:
ASTM, E23-02a, En10045, ISO83,GB/T229-2009
Low temperature chamber specifications:
Main Specifications:
|
Model |
DWC-40 |
DWC-60 |
DWC-80 |
DWC-100 |
|||
|
Temperature range |
+30~-40° |
+30~-60° |
+30~-80° |
+30~-100° |
|||
|
Temperature Control Accuracy |
±0.5° |
||||||
|
Effective working space |
120×120×80mm |
||||||
|
Specimen dimension |
10×10×55mm |
||||||
|
Specimen quantity |
More than 60 pcs |
||||||
|
Temperature dropping speed
|
+30°C~0°C 1.2°C/min |
+30°C~0°C 2°C/min |
+30°C~0°C 2°C/min |
+30°C~0°C 2°C/min |
|||
|
0°c~-20°C 0.8°C/min |
0°c~-20°C 1.5°C/min |
0°c~-20°C 1.5°C/min |
0°c~-20°C 1.5°C/min |
||||
|
-20°C~-40°C 0.5°C/min |
-20°C~-40°C 1.0°C/min |
-20°C~-60°C 1.0°C/min |
-20°C~-40°C 1.0°C/min |
||||
|
-40°C~-60°C 0.7°C/min |
-60°C~-80°C 0.7°C/min |
-60°C~-100°C 0.7°C/min |
|||||
|
Dimensions(mm) |
800×510×480 |
800×510×480 |
800×510×480 |
800×510×480 |
|||
|
Mode of refrigeration |
Compressor refrigeration |
||||||
|
Cooling Medium |
Ethanol or other unfrozen liquid |
||||||
