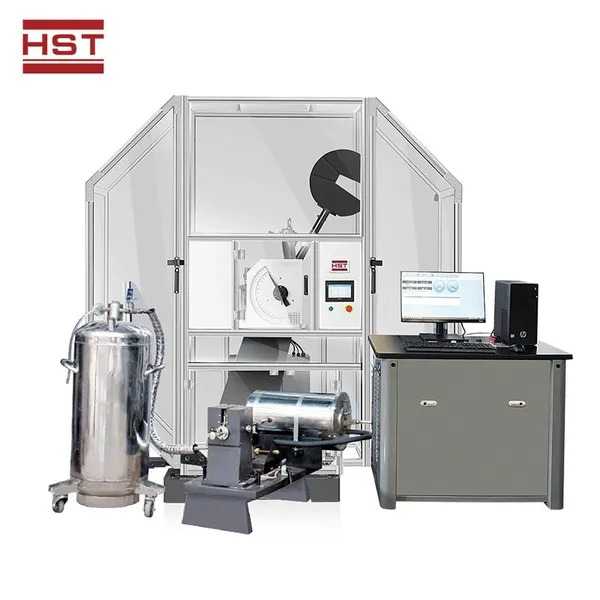

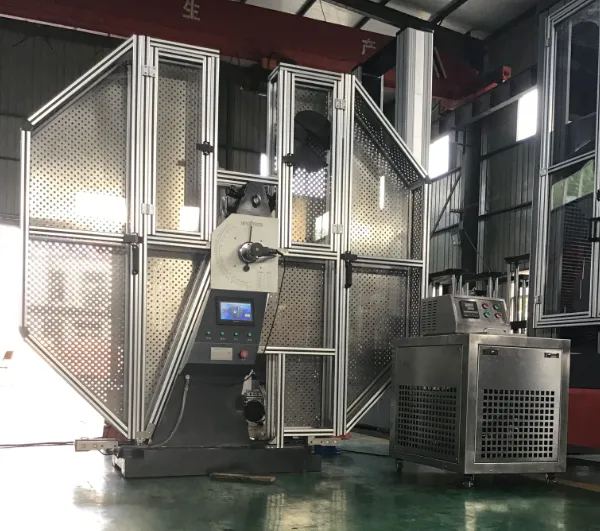

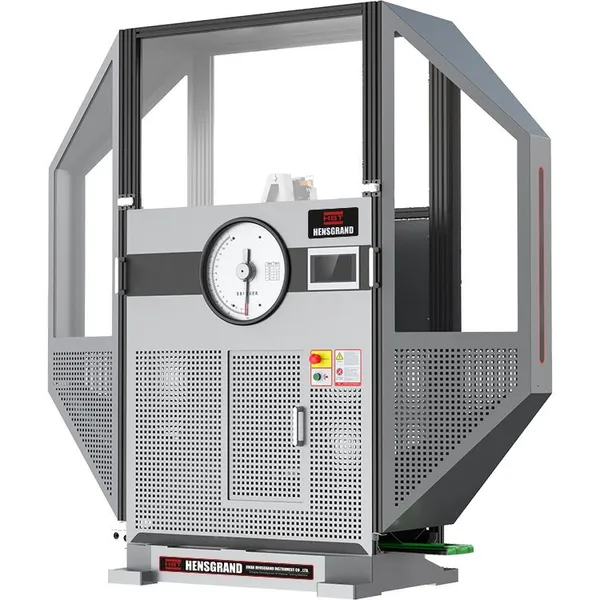

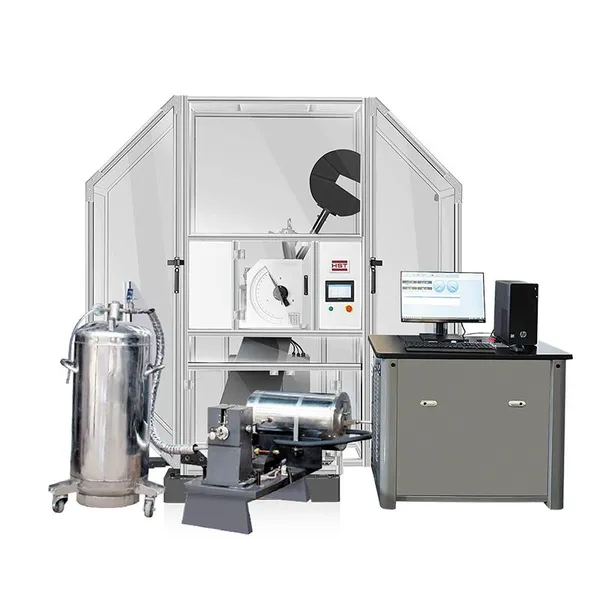

Help CenterASTM E23 ISO 148 JBW-500CY 500J Metallic Materials Charpy Pendulum Impact Testing Machine
Related Products
-
HST-JBDW-300CY-80 300j Computer Control Low Temperature Automatic Impact Testing Machine(-80℃) 300J Impact Testing MachineUS$ 12300 - 14800MOQ: 1 Set -
HST JBDW-750CY-60 750j Low Temperature Computer Automatic Impact Testing Machine(-60℃) 750j Impact Testing Machine(-60℃)US$ 12240 - 14400MOQ: 1 Set
-
HST- JBDW-500Y-80 500J,Computer Control Low-temperature Impact Testing Machine(RT to -80℃) 500J Impact Testing MachineUS$ 9500 - 11160MOQ: 1 Set
-
HST- JBDW-300Y-60 300J,Computer Control Low-temperature Impact Testing Machine(RT to -60℃) 300J Impact Testing MachineUS$ 8640 - 9600MOQ: 1 Set
-
HST- JBDW-300D-196 300j Computer Control Low Impact Testing Machine(-196℃) 300j Low Impact Testing MachineUS$ 8860 - 9860MOQ: 1 Set
metal materials dynamic load impact testing machine
1. Capacity:
150J,300J,450J,600J,750J
2. Application
JBDW-C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring
the metal material resistance performance under dynamic load,in order to determine the material
properties under dynamic load.
It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas,
but also used for the science research.
3. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-200,ISO 138,EN10045.
Main Technical Specifications:
|
Model |
JBDW-300C |
JBDW-450C |
JBDW-600C |
JBDW-750C |
|
Max. impact energy(J) |
300 |
450 |
600 |
750 |
|
Pendulum Torque |
160.7695 |
241.1543 |
321.5390 |
401.9238 |
|
The distance between the pendulum shaft and impact point |
750mm |
|||
|
Impact speed |
5.24 m/s |
|||
|
Raised angle |
150° |
|||
|
Round angle of the jaw |
R1-1.5mm |
|||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
|||
|
Angle accuracy |
0.1° |
|||
|
Cooling way |
compressor |
|||
|
Capacity of sample box |
20 |
|||
|
Range of low temperature |
room tempeature --60°c/80°c |
|||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
|||
|
Power supply |
3phs, 380V, 50Hz or specified by users |
|||
|
Net Weight (kg) |
900https://www.china.cn/product-detail/2020-new-model-ASTM-E23-Low_1600054639584.html?spm=a2747.manage.0.0.18f571d2DMEgOk |
|||
