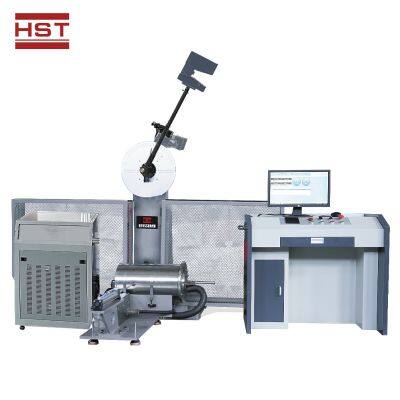

HST- JBDW-500Y-80 500J,Computer Control Low-temperature Impact Testing Machine(RT to -80℃) 500J Impact Testing Machine
US$ 9500 - 11160
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST- JBDW-300Y-60 300J,Computer Control Low-temperature Impact Testing Machine(RT to -60℃) 300J Impact Testing MachineUS$ 8640 - 9600MOQ: 1 Set -
HST- JBDW-300D-196 300j Computer Control Low Impact Testing Machine(-196℃) 300j Low Impact Testing MachineUS$ 8860 - 9860MOQ: 1 Set
-
HST JBDS-500Y-80 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -80℃) 500J Impact Testing MachineUS$ 9080 - 10080MOQ: 1 Set
-
HST JBDS-500Y-60 500J Touch Screen Low-temperature Automatic Impact Testing Machine(RT to -60℃) 500J Impact Testing MachineUS$ 10080 - 11180MOQ: 1 Set
-
High Precision HST JBW-750C 750J Computer Control Pendulum Impact Testing Machine 750J Impact Testing MachineUS$ 11000 - 12240MOQ: 1 Set
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Computer Control Low-temperature Impact Testing Machine
Model
HST- JBDW-500Y-80
Max. impact energy
500J
Impact Energy
250J 500J
Impact speed
5.4m/s
Thickness of impact knife
16 mm
Round angle of striker
R 1-1.5 mm
Standard span
40+0.2mm
Power supply
Three-phase four-wire system, 380V±10%, 50Hz/60Hz
Temperature control range
room tempeature~-80°c

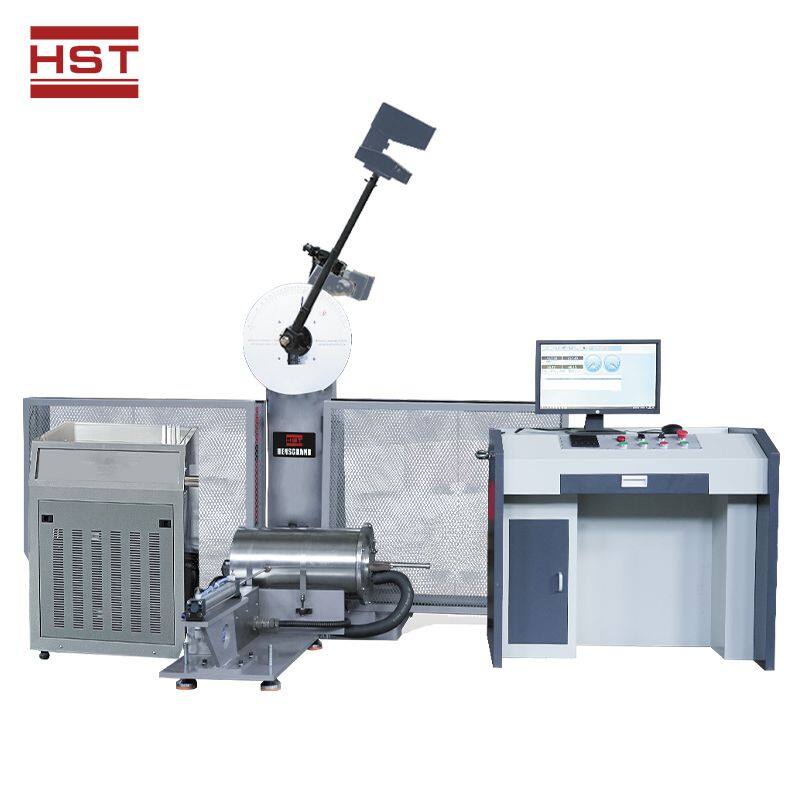

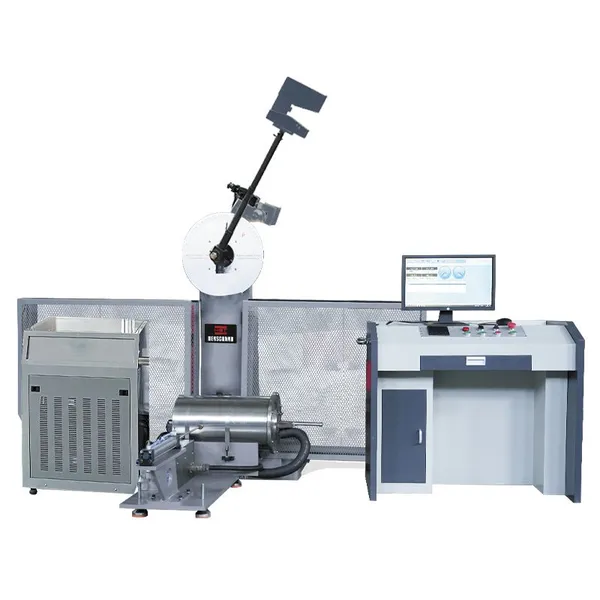

HST JBDW-500Y-80 Computer Control
Low-temperature Automatic Charpy Impact Testing Machine
For price and model details, please contact Lisa:
Email:lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
1.Application :
3.Specifications
Full Automatic Impact Testing Machine was widely used in mechanical metallurgy, aerospace engineering, vessel building, academy and institute, and nuclear power engineering fields which has high requirement on temperature testing with high efficiency.
2.Standards:
ISO 148-1 -Metallic materials - CHARPY pendulum impact test.
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallic materials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures.
JIS Z 2242 -Method for CHARPY pendulum impact test of metallic materials.
EN 10045-1 -Metallic materials-CHARPY impact test.
ASTM E23 (CHARPY) -Standard test method for notched bar impact testing of metallic materials.
GOST 9454-78 -Impact bending test method at low, room and high temperatures.
3.Specifications
Model | HST JBDW-500Y-80 | ||||
Energy display mode | Dial and Computer | ||||
Max. impact energy | 500J | ||||
Impact Energy | 250J | 500J | |||
Value Of Every Grid | 2.5J | 5J | |||
Moment Of Pendulum | 133.9746N.m | 267.9492N.m | |||
Distance between pendulum shaft and impact point | 800mm | ||||
Impact speed | 5.4m/s | ||||
Raised angle | 150° | ||||
Standard span | 40+0.2mm | ||||
Round angle of the jaw | R1-1.5mm | ||||
Round angle of impact edge | R2-2.5,R8±0.05mm | ||||
Angle accuracy | 0.1° | ||||
Standard specimen dimension | 10×10(7.5/5)×55mm | ||||
Thickness of impact knife | 16mm | ||||
Dip angle of supporting surface of supports | 11°±1° | ||||
Impact edge Angle | 30°±1° | ||||
Impact edge curvature radius | 2mm impact edge | 2-2.5 | |||
8mm impact blade | 8±0.05 | ||||
8mm impact shoulder Angle radius | 0.1-1 | ||||
8mm impact blade width | 4 ±0.05 | ||||
Impact blade width | 10-18mm | ||||
Impact knife thickness | 16mm | ||||
Meet the sample size | 10×10x55 mm | ||||
Refrigeration mode | Compressor | ||||
Refrigerating medium | Freon | ||||
Capacity of sample box | Standard 20 | ||||
Temperature control range | room tempeature~-80°c | ||||
Constant temperature accuracy | fluctuation ±0.5°C grades 1°C | ||||
Sample delivery method | pneumatic | ||||
Sample delivery positioning time | ≤4S | ||||
Positioning mode | pneumatic | ||||
Positioning accuracy | 0.1 mm | ||||
Pneumatic pressure | 0.3 to 0.7MPa | ||||
Angle measurement | photoelectric encoder | ||||
Angle accuracy | 0.1° | ||||
Dial energy resolution | ≥0.5J | ||||
computer screen display energy resolution | 0.01J | ||||
Mainframe Overall dimensions | 1600 ×850×1530 mm | ||||
Low-temperature system | 1100x1000x500mm | ||||
Electrical cabinet | 960×620×830mm | ||||
Weight | 880Kg | ||||
Power supply | 3-phase 380V± 10%, 50Hz | ||||
