Home > Instruments & Meters > Test Instrument > Test Machine > CST-50 Impact Specimen U/v Notch Profile Projector Measuring Specimen Projector

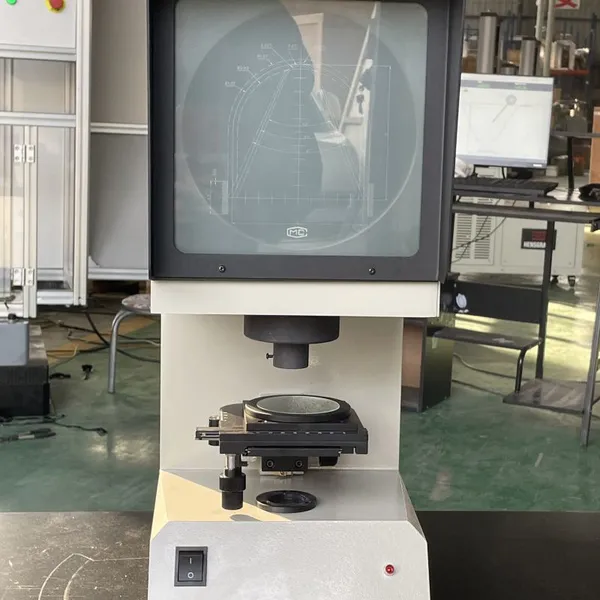

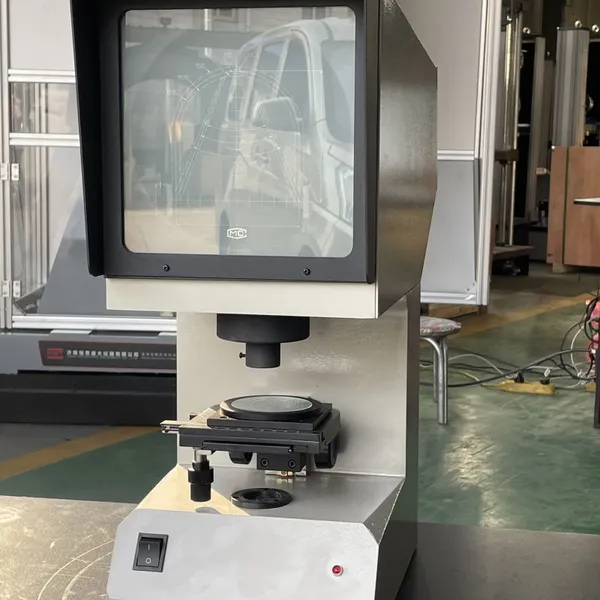

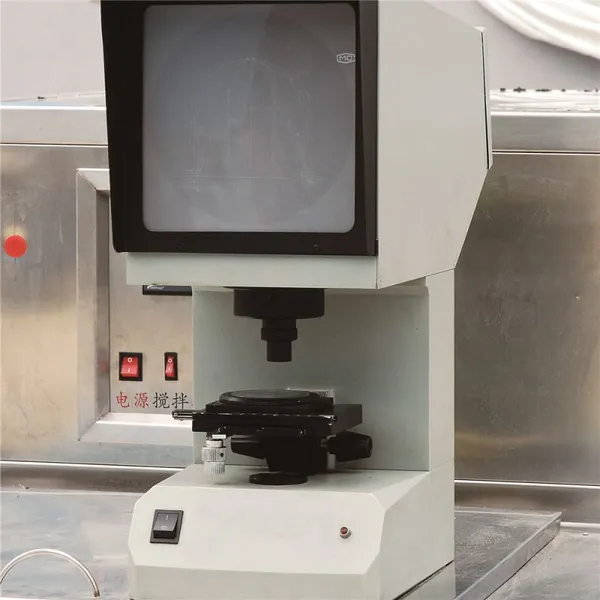

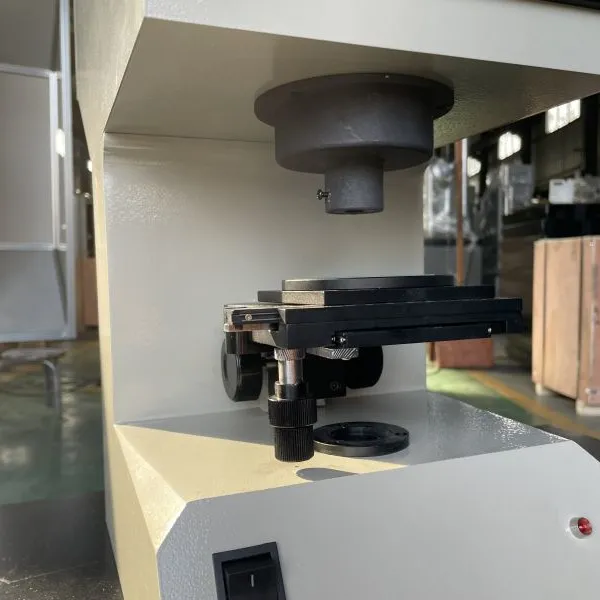

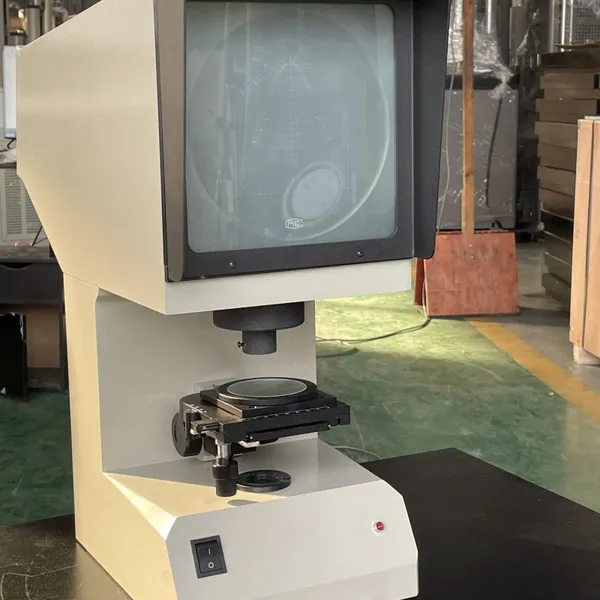

CST-50 Impact Specimen U/v Notch Profile Projector Measuring Specimen Projector

US$ 800 - 1200 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Testing Machine

Accuracy:

CLASS1

brand name:

hensgrand

Contact Supplier Request Quote Chat Now

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Accuracy CLASS1

brand name hensgrand

place of origin Shandong, China

customized support OEM, ODM, OBM

power 0.1KW

Protection Class IP55

Voltage 220 V

warranty 3 years

Logo/graphic design Hot Stamping

Product name 2mm metal Impact Specimen Notch Projector

Diameter of the Screen 200mm

magnification of the instrument 50x

Objective magnification 2.5X

Diameter of round worktable 90mm

Working table square shape 110x125mm

Stroke of working table Longitude: ±10mm,Latitude: ±10mm,Rise and fall: ±12mm

Eye-field diameter 3.8mm

Working distance 22.89mm

Scope of revolving of the worktable 360°

Product Description

2mm metal Impact Specimen Notch Projector

1. Application CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.

Diameter of the Screen	200mm
Magnification of the instrument	50X
Objective magnification	2.5X
Working table square shape	1 10x125mm
Diameter of round worktable	90mm
Diameter of working screen	70mm
Stroke of working table	Longitude: ± 10mm,Latitude: ± 10mm, Rise and fall: ± 12mm
Eye-field diameter	3.8mm
Working distance	22.89mm
Scope of revolving of the worktable	360°
Power supply	220V, 60HZ, 150W
Dimension	515×224×603mm
Light source(tungsten halogen lamp)	12V, 100W
Weight	18kg
