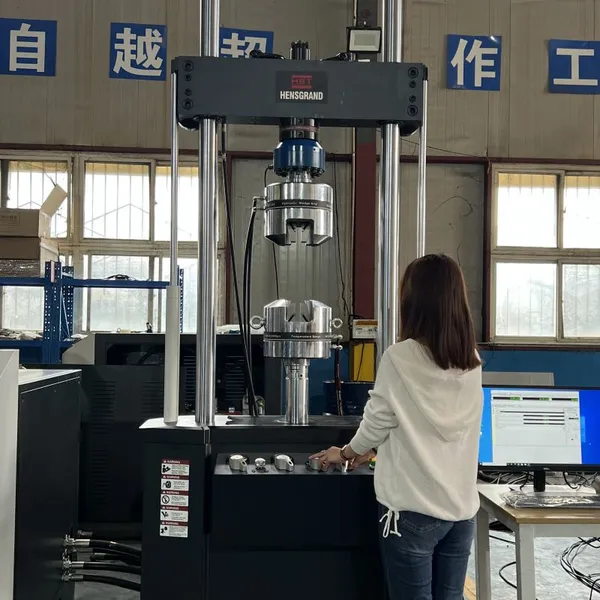

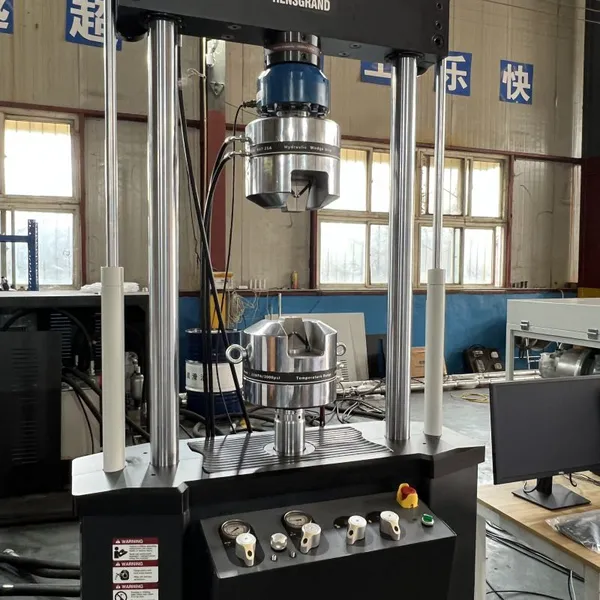

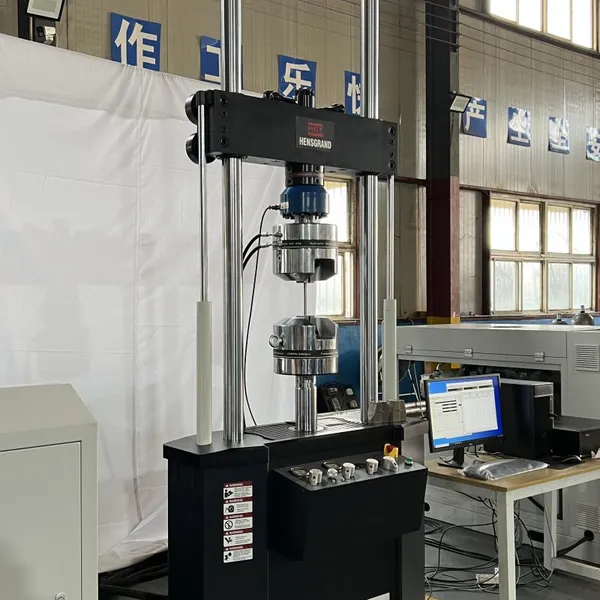

HST-HFT250C 250kn LCT Dynamic Tensile Fatigue Testing Equipment
US$ 50000 - 60000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Fatigue testing machine
Accuracy:
0.5class
brand name:
HST OR OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HFT100C 100kn LCT Dynamic Tensile Fatigue Testing EquipmentUS$ 50000 - 60000MOQ: 1 Set -
HST250kN Computer Control Electro-Hydraulic Servo Dynamic and Static Fatigue Testing Machine With High Temperature FurnaceUS$ 475857.20 - 489853.00MOQ: 1 Set
-
High Precision 30-200kN Electromechanical Creep Relaxation Testing Machine 1 Year Multi-functional Advanced Material TestingUS$ 143456.95 - 146256.11MOQ: 1 Set
-
Professional Advanced Pulse Control System Electromagnetic Resonance Fatigue Testing Machine With 1 Year WarrantyUS$ 409377.15 - 412176.31MOQ: 1 Set
-
High-Precision Electromechanical Creep and Relaxation Testing Equipment Long-Term Material Tester With 1 Year WarrantyUS$ 129461.15 - 132260.31MOQ: 1 Set
Accuracy
0.5class
brand name
HST OR OEM
place of origin
Shandong, China
Application
fatigue testing, dynamatic and static tensile test
customized support
OEM, ODM, OBM, Software Reengineering
power
380V, Hydraulic
Protection Class
IP55
Voltage
380 V
warranty
1 year
Product name
HST-HFT250C 250kn LCT Dynamic Tensile Fatigue Testing Equipment
Control method
Computer control
Structure
Double columns
Displacement
±1.0% FS of Each File
frequency
20 /30 /50 hz
tensile space
700mm
accuracy
0.5 class
Products Description
HST-HFT250C K1 ASTM E399 Fatigue Crack Growth Rates Fatigue Testing Machine
Application
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced
hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control,
test software under WINDOWS Chinese working environment, powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
Standards
GB / T2611-2007 《Tester General technical requirements》 GB / T16826-2008 《Hydraulic servo universal testing machine》 GB 3075
《Axial fatigue testing metal》 JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》GB / T228-2010
《Metallic materials at room temperature tensile test method 》 HB5287 Axial Loading Fatigue Test Method for Metal Materials EN10002
Tensile Test of Metallic Materials JJG 556-2011 Axial Force Fatigue Testing Machine HG／T 2067-1991 Technical specifications for
rubber fatigue testing machine ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture
toughness ASTM E1820 2001 measure of fracture toughnes
《Axial fatigue testing metal》 JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》GB / T228-2010
《Metallic materials at room temperature tensile test method 》 HB5287 Axial Loading Fatigue Test Method for Metal Materials EN10002
Tensile Test of Metallic Materials JJG 556-2011 Axial Force Fatigue Testing Machine HG／T 2067-1991 Technical specifications for
rubber fatigue testing machine ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture
toughness ASTM E1820 2001 measure of fracture toughnes
Technical parameter.
Model |
HST-HFT250C |
Force capacity |
Dynamic ±80KN; Static ±100KN |
Load range |
0.5～25KN(2%-100%FS) |
Testing machine accuracy |
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
Displacement measuring range |
±75mm |
Displacement measurement resolution |
0.001mm |
Deformation indication relative error |
±0.5% |
Force coaxiality |
≤5% |
Frequency Range |
0.01-20HZ (50Hz optional) |
Effective distance between columns |
535mm |
Table space size |
720mm×1000mm |
Maximum test space |
1250mm |
Column diameter |
80mm |
Main frame stiffness |
5×108 |
Main test wave forms |
Sine wave, square wave, triangle wave, ramp wave, random waveform and external input waveform; can realize multiple sine wave forms with different frequency or amplitude combinations; random wave forms with user-defined parameters; user-imported custom wave forms |
Test control method |
Load, displacement, deformation control method |
Servo pump station specifications |
Flow 40L/min, 21Mpa |
Power supply |
AC 380V± 10%, 50Hz |
