Home > Instruments & Meters > Test Instrument > Test Machine > HST-HFT25BG 25T 250kN High Low Temperature Electro-hydraulic Servo Dynamic Static Fatigue Testing System

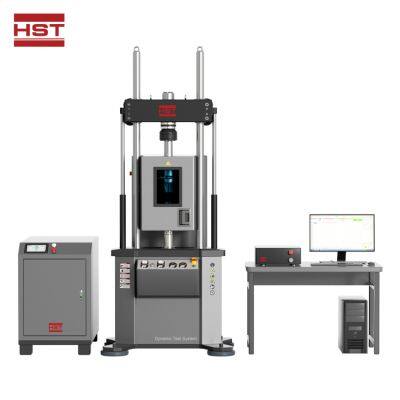

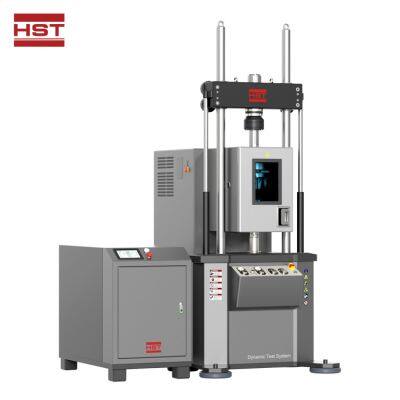

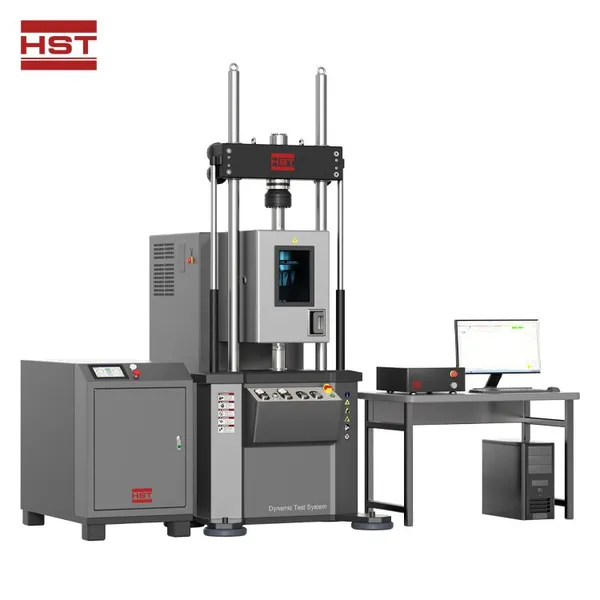

HST-HFT25BG 25T 250kN High Low Temperature Electro-hydraulic Servo Dynamic Static Fatigue Testing System
US$ 40000 - 46000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.05~1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST ASTM E647-based Fatigue Crack Growth Testing Using DCPD Methodology Fatigue Testing MachineUS$ 594821.50 - 629811.00MOQ: 1 Set -
HST E647 Based Crack Growth Testing Electro-Hydraulic Universal Fatigue Testing MachineUS$ 1294611.50 - 1301609.40MOQ: 1 Set
-
HST-HFT50C 50kn LCT Dynamic Tensile Fatigue Testing EquipmentUS$ 50000 - 60000MOQ: 1 Set
-
HST-HFT250C 250kn LCT Dynamic Tensile Fatigue Testing EquipmentUS$ 50000 - 60000MOQ: 1 Set
-
HST-HFT100C 100kn LCT Dynamic Tensile Fatigue Testing EquipmentUS$ 50000 - 60000MOQ: 1 Set
Accuracy
≤± 0.05~1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Electro-hydraulic servo dynamic static fatigue testing system
Model
HST-HFT25BG
Max. test load
25kN
Testing machine accuracy
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1%
Actuator dynamic stroke
150mm
Load measuring range
0.5~25(2%-100%FS)
Displacement measuring range
0~150mm(±75mm)
Deformation indication relative error
±0.5%
Frequency
0.01-20HZ (50Hz optional)
Power Supply
AC 380V± 10%, 50Hz
HST-HFT25B 25kN Electro-hydraulic
Servo Dynamic static fatigue testing system
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is mainly used to detect a variety of metals,
non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending,low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave,random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control, Software powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is mainly used to detect a variety of metals,
non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending,low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave,random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control, Software powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
Standards
GB / T2611-2007 《Tester General technical requirements》
GB / T16826-2008 《Hydraulic servo universal testing machine》
GB 3075 《Axial fatigue testing metal》
JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
GB / T228-2010 《Metallic materials at room temperature tensile test method 》
HB5287 Axial Loading Fatigue Test Method for Metal Materials
EN10002 Tensile Test of Metallic Materials
JJG 556-2011 Axial Force Fatigue Testing Machine
HG／T 2067-1991 Technical specifications for rubber fatigue testing machine
ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture toughness
ASTM E1820 2001 test standard for measuring fracture toughness
GB / T2611-2007 《Tester General technical requirements》
GB / T16826-2008 《Hydraulic servo universal testing machine》
GB 3075 《Axial fatigue testing metal》
JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
GB / T228-2010 《Metallic materials at room temperature tensile test method 》
HB5287 Axial Loading Fatigue Test Method for Metal Materials
EN10002 Tensile Test of Metallic Materials
JJG 556-2011 Axial Force Fatigue Testing Machine
HG／T 2067-1991 Technical specifications for rubber fatigue testing machine
ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture toughness
ASTM E1820 2001 test standard for measuring fracture toughness
Specifications:
Model | HST-HFT25B |
Force capacity | 25kN |
Load range | 0.5～25(2%-100%FS) |
Testing machine accuracy | Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
Actuator dynamic stroke | 150mm |
Displacement measuring range | 0～150mm(±75mm) |
Displacement measurement resolution | 0.001mm |
Deformation indication relative error | ±0.5% |
Force coaxiality | ≤5% |
Frequency Range | 0.01-20HZ (50Hz optional) |
Effective distance between columns | 540mm |
Maximum test space | 800mm (exclude hydraulic clamps) |
Column diameter | 80mm |
Main frame stiffness | 5×108 |
Main test wave forms | Sine wave, square wave, triangle wave, ramp wave, random waveform and external input waveform; can realize multiple sine wave forms with different frequency or amplitude combinations; random wave forms with user-defined parameters; user-imported custom wave forms |
Test control method | Load, displacement, deformation control method |
Servo pump station specifications | Flow 40L/min, 21Mpa |
Machine Dimensions | About 1010*720*2900mm |
Hydraulic power unit | About 1350X800X1275mm |
Machine Weight | About 1200KG |
Hydraulic power unit Weight | About 900KG |
Power supply | AC 380V± 10%, 50Hz |
Test machine host:
* Two column frame structure, servo actuator lower
* Upper beam: hydraulic lifting, hydraulic locking
* Column: Hard chrome plated and polished
Company Profile
Recommend Products
50N-5KN Single Column Universal Testing Machine | Electronic Universal Testing Machine with 10kN Pneumatic Grips | Electronic Universal Testing Machine with Hydraulic grips |
Electronic Universal Testing Machine with Temperature Chamber | 50kN -1000kN Hydraulic Dynamic Static Fatigue Testing Machine | 100kN -2000kN Servo Hydraulic Universal Testing Machine |
Customer Photos
Exhibition
Certifications
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),19 years focusing on test instruments field,14 yearsexporting experience. How to choose the most suitable products? Our professional team will give you the best suggestion as long as you tell us what
kind of test you need to do and the required specification.
How to operate the machine ?
kind of test you need to do and the required specification.
How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience.Our goal is to make you satisfied.
What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part
parts change, necessarily, our engineers may go to your place for better service.
parts change, necessarily, our engineers may go to your place for better service.
Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
