Home > Instruments & Meters > Test Instrument > Test Machine > HST-HFT50B 5T 50kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 50KN Electronic Fatigue Testing Machine

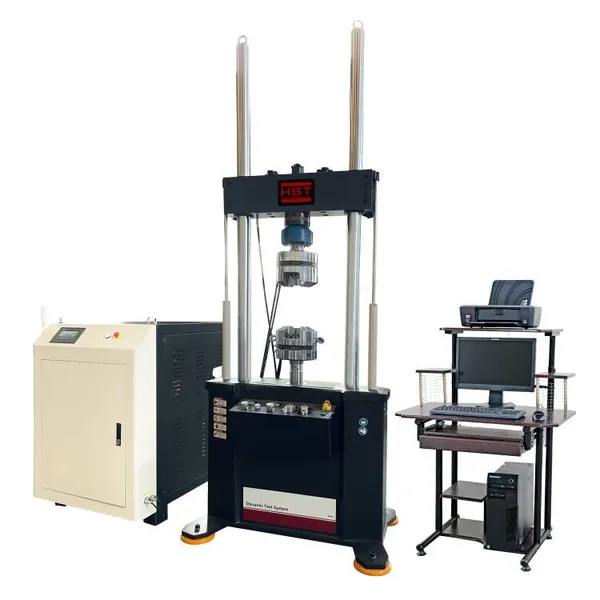

HST-HFT50B 5T 50kN Electro-hydraulic Servo Dynamic Static Fatigue Testing System 50KN Electronic Fatigue Testing Machine
US$ 50000 - 56000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
≤± 0.5~1%
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-HFT25BG 25T 250kN High Low Temperature Electro-hydraulic Servo Dynamic Static Fatigue Testing SystemUS$ 40000 - 46000MOQ: 1 Set -
HST ASTM E647-based Fatigue Crack Growth Testing Using DCPD Methodology Fatigue Testing MachineUS$ 594821.50 - 629811.00MOQ: 1 Set
-
HST E647 Based Crack Growth Testing Electro-Hydraulic Universal Fatigue Testing MachineUS$ 1294611.50 - 1301609.40MOQ: 1 Set
-
HST-HFT50C 50kn LCT Dynamic Tensile Fatigue Testing EquipmentUS$ 50000 - 60000MOQ: 1 Set
-
HST-HFT250C 250kn LCT Dynamic Tensile Fatigue Testing EquipmentUS$ 50000 - 60000MOQ: 1 Set
Accuracy
≤± 0.5~1%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing
customized support
OEM, ODM
power
/KW
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Electronic Servo Dynamic Fatigue Testing Machine
Model
HST-HFT50B
Max. test load
50kN
Load range
2~100(2%-100%FS)
Testing machine accuracy
Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1%
Actuator dynamic stroke
150mm
Displacement measuring range
0~150mm(±75mm)
Frequency
0.01-30HZ (50Hz,100Hz optional)
Force coaxiality
≤5%
Power Supply
AC 380V± 10%, 50Hz
HST-HFT50B Electro-hydraulic Servo Dynamic static fatigue testing system
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application:
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is mainly used to detect a variety of metals,
non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending,low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave,random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control, Softwarepowerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defenseindustry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
This series computer Control Electro-hydraulic Servo Fatigue Testing Machine is mainly used to detect a variety of metals,
non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending,low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave,random wave, combination waveform.
This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.
Fully digital measurement and control system implementation force, displacement, deformation closed loop control, Softwarepowerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defenseindustry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.
Standards:
GB / T2611-2007 《Tester General technical requirements》
GB / T16826-2008 《Hydraulic servo universal testing machine》
GB 3075 《Axial fatigue testing metal》
JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
GB / T228-2010 《Metallic materials at room temperature tensile test method 》
HB5287 Axial Loading Fatigue Test Method for Metal Materials
EN10002 Tensile Test of Metallic Materials
JJG 556-2011 Axial Force Fatigue Testing Machine
HG／T 2067-1991 Technical specifications for rubber fatigue testing machine
ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture toughness
ASTM E1820 2001 test standard for measuring fracture toughness
GB / T2611-2007 《Tester General technical requirements》
GB / T16826-2008 《Hydraulic servo universal testing machine》
GB 3075 《Axial fatigue testing metal》
JB / T9379-2002 《Tension and compression fatigue test machine technical conditions》
GB / T228-2010 《Metallic materials at room temperature tensile test method 》
HB5287 Axial Loading Fatigue Test Method for Metal Materials
EN10002 Tensile Test of Metallic Materials
JJG 556-2011 Axial Force Fatigue Testing Machine
HG／T 2067-1991 Technical specifications for rubber fatigue testing machine
ASTM E399－09 Metallic materials Kic standard test for linear elastic plane strain fracture toughness
ASTM E1820 2001 test standard for measuring fracture toughness
Specifications:
Model | HST-HFT50B |
Force capacity | 50kN |
Load range | 2～100(2%-100%FS) |
Testing machine accuracy | Static indication accuracy: ±0.5% Dynamic loading accuracy: ±1% |
Actuator dynamic stroke | 150mm |
Displacement measuring range | 0～150mm(±75mm) |
Displacement measurement resolution | 0.001mm |
Deformation indication relative error | ±0.5% |
Force coaxiality | ≤5% |
Frequency Range | 0.01-30HZ (50Hz,100Hz optional) |
Effective distance between columns | 545mm |
Maximum test space(mm) | 800mm (exclude hydraulic clamps) |
Working table height(mm) | 825mm |
Column diameter | 76.2mm |
Main frame stiffness | 3×108 |
Main test wave forms | Sine wave, square wave, triangle wave, ramp wave, random waveform and external input waveform; can realize multiple sine wave forms with different frequency or amplitude combinations; random wave forms with user-defined parameters; user-imported custom wave forms |
Test control method | Load, displacement, deformation control method |
Servo pump station specifications | Flow 40L/min, 21Mpa |
Machine Dimensions | About 1010*720*2900mm |
Hydraulic power unit | About 1350X800X1275mm |
Machine Weight | About 1200KG |
Hydraulic power unit Weight | About 900KG |
Power supply | AC 380V± 10%, 50Hz |
Machine details:

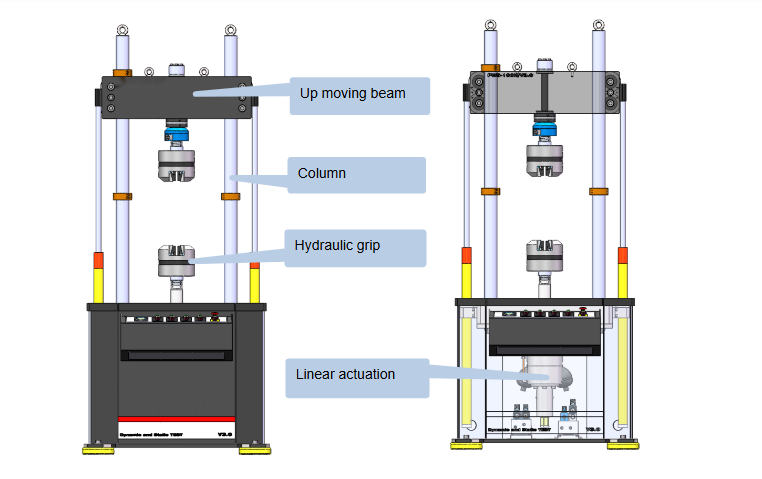

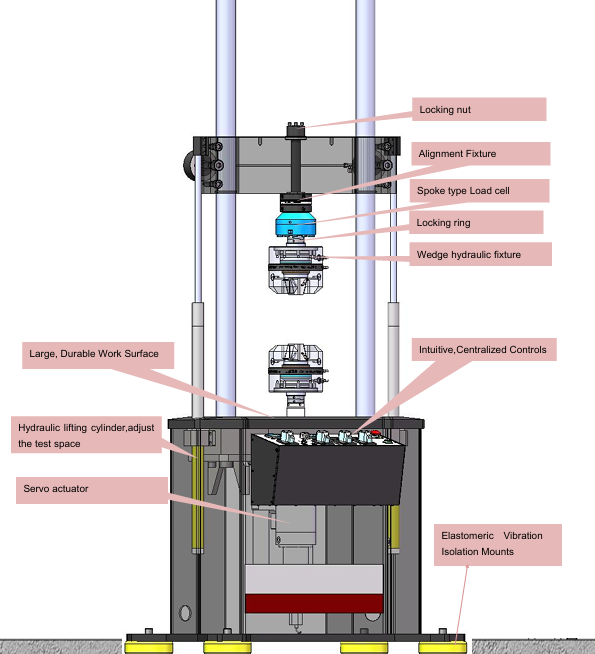

Test machine host:
* Two column frame structure, servo actuator lower
* Upper beam: hydraulic lifting, hydraulic locking
* Column: Hard chrome plated and polished
* Two column frame structure, servo actuator lower
* Upper beam: hydraulic lifting, hydraulic locking
* Column: Hard chrome plated and polished
