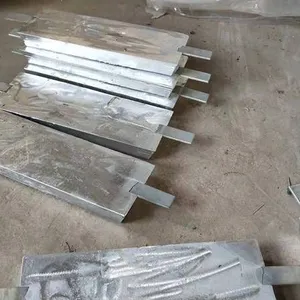

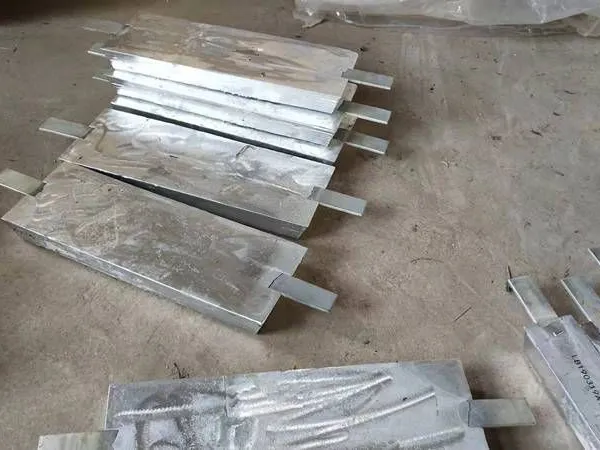

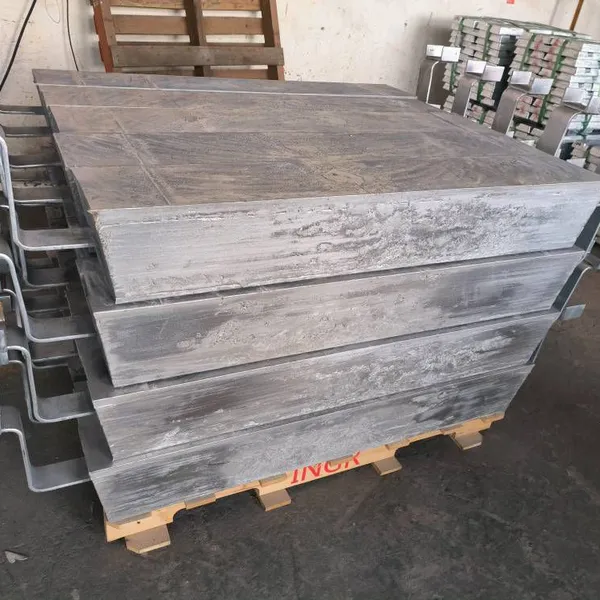

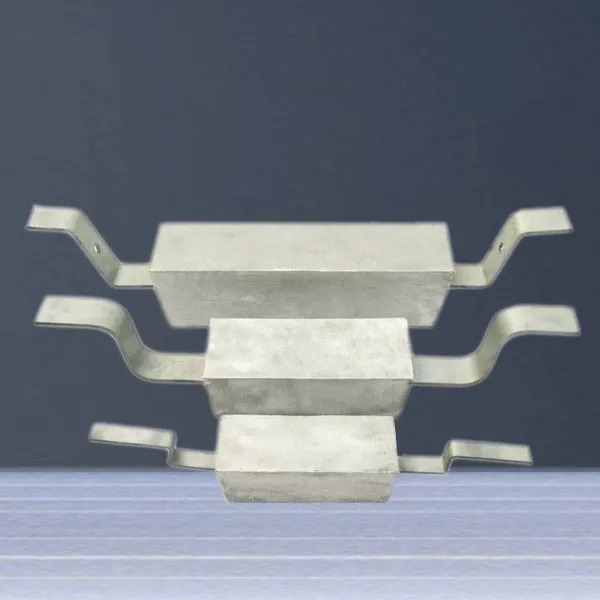

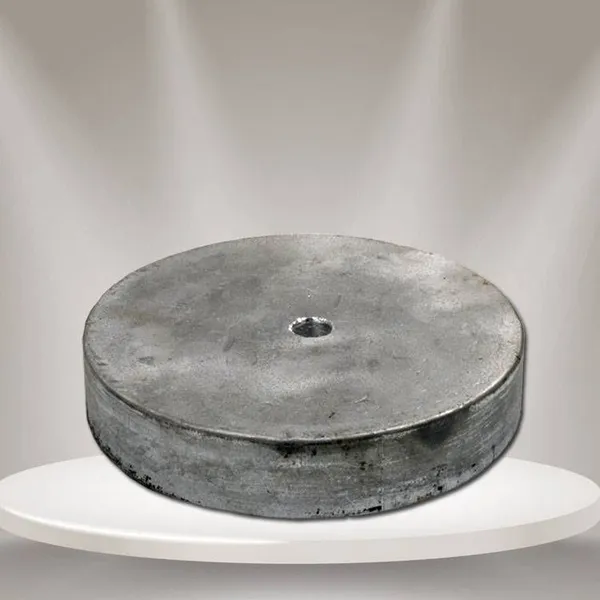

3kg Magnesium Alloy Anode for Reservoir Gates
Magnesium Anode: Abbreviation for magnesium alloy sacrificial anode, also known as magnesium alloy anode or magnesium sacrificial anode. It is used in the cathodic protection system and is an important equipment and material to prevent electrochemical corrosion. Due to the high potential of magnesium alloy anodes, they are often used for the cathodic protection of buried structures, such as buried oil pipelines, natural gas and gas pipelines.
The magnesium alloys produced by Jiaozuo Libo Light Alloy Co., Ltd. are made of high-quality raw materials. The anode potential is negative, and the electricity generated per unit mass is large. It is an ideal sacrificial anode material. It is suitable for the cathodic protection of metal structures in media such as soil, fresh water and seawater, such as oil and gas pipelines, storage tanks, hot water exchangers, condensers, etc.
The magnesium alloy sacrificial anodes are produced in accordance with the national standard GB/T17731 - 2004 "Magnesium Alloy Sacrificial Anodes". The anodes used for pipelines also comply with SY/T0019 - 97 "Design Specification for Sacrificial Anode Cathodic Protection of Buried Steel Pipelines".
This product has the following characteristics: (1) Small specific gravity and relatively negative potential; (2) High driving voltage for iron and low current efficiency; (3) Especially suitable for high-resistivity media.
(For resistivity greater than 100Ω·m, it is recommended to use strip magnesium anodes.
Classification of magnesium anodes:
1. High-potential magnesium alloy sacrificial anode
2.2. Bracelet-type magnesium alloy sacrificial anode
3.3. Assembled magnesium alloy sacrificial anode
4.4. Strip magnesium alloy sacrificial anode 5. National standard magnesium alloy sacrificial anode
5. Magnesium alloy sacrificial anode
6. Implementation standard: GB/T17731 - 2009 Magnesium Alloy Sacrificial Anodes
7. SY/T0019 - 97 Design Specification for Sacrificial Anode Cathodic Protection of Buried Steel Pipelines
8. Performance of magnesium alloy sacrificial anodes: Large electricity generated per unit mass and high potential; it is an ideal sacrificial anode material.
9. Characteristics of magnesium alloy sacrificial anodes:
10. (1) Small specific gravity and relatively negative potential.
11. (2) High driving voltage for iron and low current efficiency.
12. (3) Especially suitable for high-resistivity media.
13.△For resistivity greater than 100Ω?m, it is recommended to use strip magnesium anodes.
14. Uses of magnesium anodes: Mainly used for the anti-corrosion protection of oil and gas transmission, water supply and drainage pipelines, underground cables, chemical industry, communication, harbors, ships, reservoir gates and other projects in underground and fresh water. For example, oil and gas pipelines, storage tanks, hot water exchangers, condensers, etc. Our company can produce high-potential and low-potential magnesium anodes.
15. Specification: 2kg, 4kg, 8kg, 11kg, 14kg, 22kg (can be customized according to customer requirements).
16. Service and support: The products of Jiaozuo Libo Light Alloy Co., Ltd. are produced with high-quality raw materials, meeting national standards. Each product comes with a product inspection report, a certificate of conformity, and product instructions. Free telephone technical guidance is provided.
