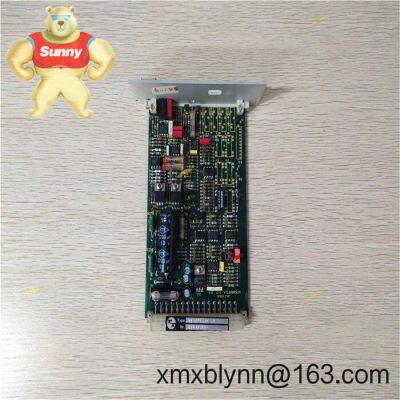

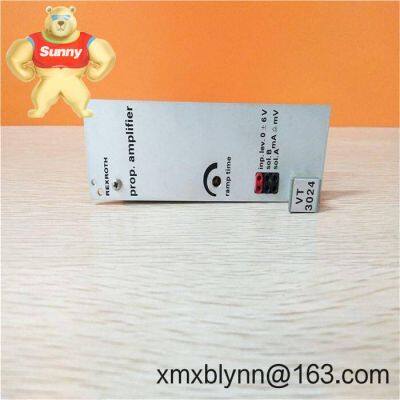

Help CenterBosch Rexroth VT3024 High-Precision Proportional Amplifier for Demanding Hydraulic Control
Related Products
-
2AD160B-B350R2-BS03-D2N1 PLC Module Ability to Quickly Respond to Changes in Control SignalsNegotiableMOQ: 1 Bag -
DKC01.3-200-7-FW Drive Controller Parallel or Discrete Input InterfaceNegotiableMOQ: 1 Bag
-
HVE04.2-W075N Directional Control Valve Control the Flow Direction of Hydraulic FluidNegotiableMOQ: 1 Bag
-
VT-HNC100-1-23/W-08-C-0 R900959000 Rexroth Controller /AmplifierUS$ 5500 - 5650MOQ: 1 Piece
-
VT-HNC100-1-23W-08-P-0 VT-HNC100 Digital Axis Controllers Indramat ControlsUS$ 5278.00MOQ: 1 Pallet
✓ 365-day warranty – covers defects but not field damage from improper installation
✓ 1-week delivery for in-stock units (typically ships same day if ordered by 2PM EST)
✓ 50% advance payment, balance before shipment – FedEx/UPS/DHL options available
✓ Never more than 4 weeks for special orders – we'll confirm lead time upfront
Sub-millisecond response times – crucial for avoiding pressure spikes in extrusion lines. One thing I appreciate is how it handles sudden load changes without that annoying "hunting" behavior.
Integrated diagnostics – LED indicators for overcurrent/short-circuit faults mean you're not guessing why the press stopped. Saved a bottling plant 3 hours of downtime last month during a night shift.
Field-adjustable gain settings – no laptop needed for basic tuning. Typically gets 90% of applications dialed in with just the front-panel potentiometers.
EMC-hardened design – operates reliably near VFDs and welders where cheaper amps drop signals. In many cases, this eliminates the need for expensive external filters.
Universal valve compatibility – works with most Rexroth 4WR... series valves out of the box. Had a customer successfully retrofit it into a 15-year-old metal former last quarter.
| Parameter | Specification |
|---|---|
| Brand/Model | Bosch Rexroth VT3024 |
| HS Code | 8537.10.90 (Electrical control apparatus for voltages ≤1000V) |
| Power Requirements | 20-30V DC, 1.5A max (ripple tolerance ±10%) |
| Dimensions & Weight | 120 × 72 × 58 mm / 0.38 kg (DIN rail mounted) |
| Operating Temperature | -25°C to +70°C (derate above 55°C) |
| Signal Inputs | 0-10V / ±10V analog (10kΩ impedance), PWM capable |
| Output Current | 0-2.5A continuous (peak 4A), short-circuit protected |
| Installation | Top-hat DIN rail (35mm), vertical mounting preferred |
You'll typically find these in applications where hydraulic smoothness equals profit – like plastic injection molding machines needing precise cavity pressure control, or mobile cranes requiring jerk-free boom movements. One paper mill I worked with uses them on calender stacks; apparently the 0.5% repeatability spec reduced web breaks by 30% during high-speed runs. Also surprisingly common in test rigs – aerospace hydraulics labs love how it handles rapid direction changes without overshoot.
Let's be real – hydraulic components get blamed when systems underperform. The VT3024's compatibility with legacy Rexroth valves means you're not rewriting control programs during retrofits (I've seen projects save $15k+ in engineering hours). And while it's not the cheapest amp out there, its 8-year field life in typical factory conditions? That's where the real savings kick in. One maintenance manager showed me his spreadsheet – factoring in downtime costs, the VT3024 pays for itself in 14 months versus generic alternatives.
Installation & Maintenance EssentialsMount vertically in IP54+ cabinets – horizontal mounting traps heat near the power stage (seen amps fail prematurely when installed flat)
Use shielded twisted-pair for analog inputs, drain shield at controller end only – ground loops cause 70% of signal noise issues
Leave 20mm clearance above/below for convection cooling (that metal heatsink needs airflow)
Annual maintenance: Blow out dust with dry air, check terminal torque (0.6Nm), verify zero-point calibration with multimeter
Safety note: Always disconnect hydraulic pressure before servicing – residual energy in accumulators can be dangerous
All units ship with CE, UL 60947-4-1, and RoHS 3 compliance documentation. Bosch Rexroth's ISO 9001:2015-certified production means each VT3024 undergoes 48-hour burn-in testing – not just spot checks. You might notice the thicker conformal coating on PCBs compared to competitors; that's why these survive washdown environments in food processing plants. And yes, the 365-day warranty covers component failures but excludes damage from voltage spikes (use a line reactor on noisy mains).
