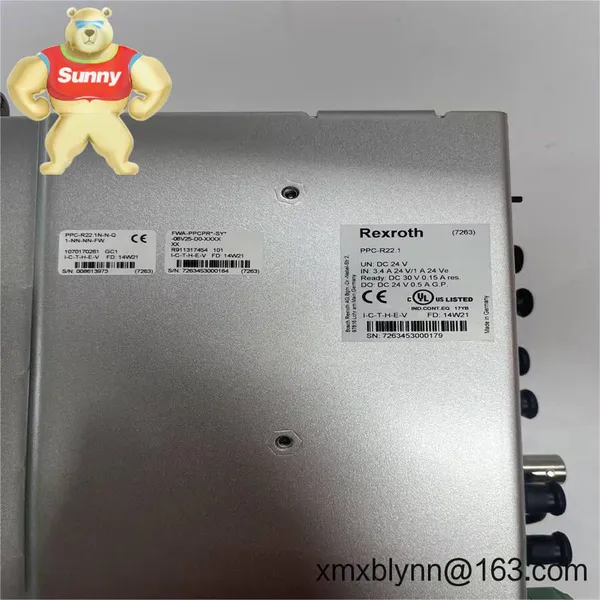

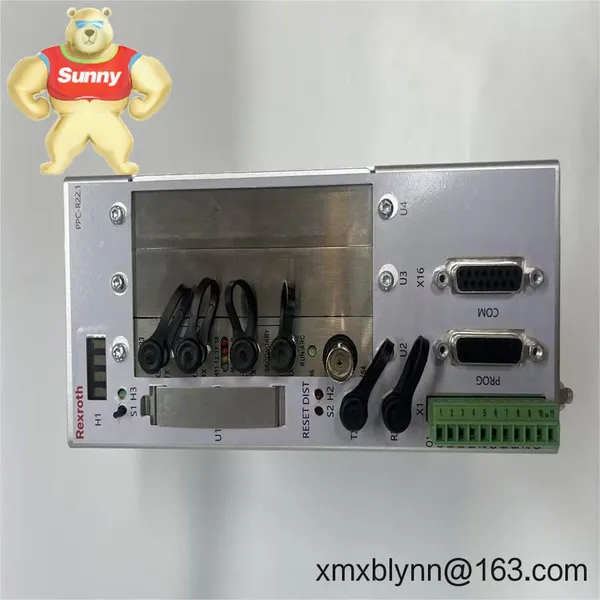

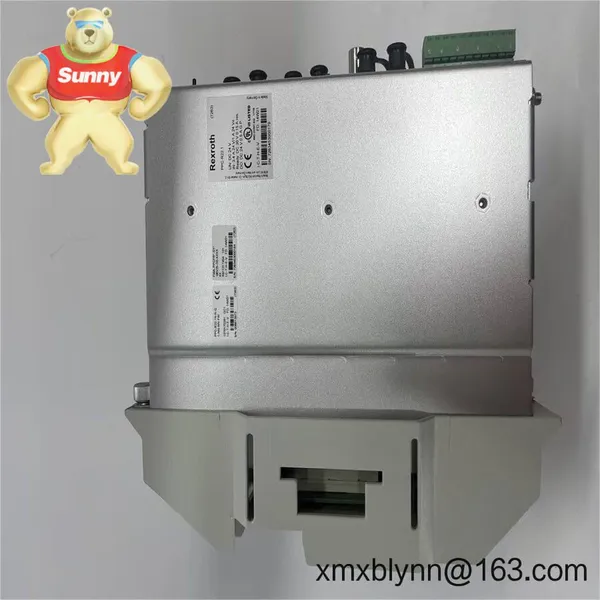

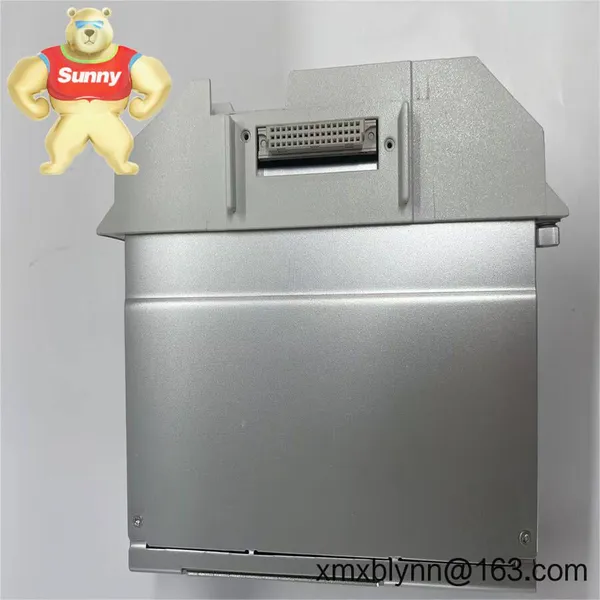

Help CenterRexroth PPC-R22.1N-T-Q2-G2-NN-FW – Multi‑Axis Motion and Machine Control for Demanding Lines
Related Products
-
REXROTH FCS01.1E-W0011-A-04-NNBV High‑Efficiency AC Frequency Converter – Energy‑Saving Speed Control for 3‑Phase MotorsUS$ 3216.00MOQ: 1 Blade -
REXRTOH SYHNC100-NIB-22a/W-24-P-D-E24: The Axis Controller That Keeps Your Production Line Breathing at 3 AMUS$ 236.00MOQ: 1 Blade
-
Bosch Rexroth HMV01.1R-W0018-A-07-FNN1: Precision Hydraulic Valve Control ModuleUS$ 236.00MOQ: 1 Blade
-
Rexroth VTS0234-47/AP025: High-Speed Servo Drive for Precision Motion ControlUS$ 236.00MOQ: 1 Blade
-
Bosch Rexroth MSK061C-0300-NN-S1-UG0-NNNN: Your Go-To Compact Servo Motor for Tight SpacesUS$ 236.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week when in stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
Coordinated multi-axis motion control – SERCOS-based synchronization for precise profiling, camming, and gearing in many cases without extra hardware.
Fieldbus connectivity – Options in this build typically include PROFIBUS-DP and a SERCOS interface, making it straightforward to slot into mixed-vendor lines.
24 VDC cabinet power – Low-voltage supply simplifies integration and service in standard industrial panels.
Rack-mounted form factor – Slides into a control cabinet subrack for clean wiring, quick swap, and good shielding.
Service-friendly diagnostics – Serial service port and status LEDs help maintenance teams troubleshoot fast during downtime.
Firmware-ready (FW) – Delivered prepared for application firmware; we can stage firmware and basic parameters on request to speed commissioning.
| Brand / Model | Rexroth PPC-R22.1N-T-Q2-G2-NN-FW |
| HS Code | 8537.10 (Boards/panels for electric control, ≤1000 V) |
| Power Requirements | 24 VDC nominal (typical), cabinet supply; current draw depends on configuration |
| Dimensions & Weight | Rack module (approx. 3U height); weight typically ~1–1.5 kg depending on options |
| Operating Temperature | 0 to +45 °C typical for control cabinets; non-condensing |
| Signal I/O Types | SERCOS drive interface; digital/analog I/O via expansion modules or remote I/O on fieldbus |
| Communication Interfaces | SERCOS fiber optic for multi-axis control; PROFIBUS-DP (option); service serial port (RS-232) |
| Installation Method | 19-inch control-cabinet subrack mounting; shielded wiring and proper grounding recommended |
You might notice that the PPC-R22.1N shows up where mechanical timing and multi-axis coordination are critical:
Packaging lines (form-fill-seal, cartoning, wrapping) with cams and product tracking
Printing and converting machinery needing register control and tension management
Machine tools and handling systems requiring interpolated moves and sequencing
Woodworking and electronics assembly where deterministic motion is preferred
Drop‑in continuity – Keeps existing SERCOS and PROFIBUS infrastructure, reducing retrofit risks and validation time.
Stable lifecycle support – We can assist with firmware matching and parameter migration, which typically shortens commissioning.
Predictable TCO – Mature platform means fewer surprises, easier spares planning, and straightforward troubleshooting.
Compatibility – Works with Rexroth IndraDrive/EcoDrive servo families and common remote I/O over fieldbus.
Cabinet & mounting – Install in a 19-inch compliant subrack. Maintain 50 mm free space for airflow. Use shielded SERCOS fibers and segregate power vs. signal wiring.
Power & grounding – 24 VDC regulated supply with protective earth. From my experience, a dedicated 24 VDC line with surge protection improves uptime.
Fieldbus & drives – Close SERCOS ring properly, verify node IDs/baud on PROFIBUS, and check termination. Keep fiber bend radii within spec.
Safety – De-energize before servicing; follow lockout/tagout. Verify safety circuits in the external safety PLC or relays.
Maintenance – Periodic dust removal, connector reseat, and backup of parameters/firmware images. Firmware updates should match your validated machine software.
Spare strategy – Keep a pre-imaged spare PPC ready; it typically cuts recovery time from hours to minutes.
CE compliant; UL/cUL marking available on many variants
RoHS status depends on manufacturing year for legacy units
Manufacturer warranty practices vary by region; our coverage is 365 days
Rexroth IndraDrive (e.g., HCS/HMD) or EcoDrive (e.g., DKC) servo drives via SERCOS
Rexroth servo motors (e.g., MKD, MHD) with integrated feedback
Remote I/O over PROFIBUS-DP for digital/analog expansion
Service cable for RS‑232 diagnostics and firmware loading
