Bosch Rexroth SYHNC100-NIB-23/W-24-P-D-E23-A012 Heavy‑Duty Digital Axis Controller for Hydraulic Motion

Bosch Rexroth SYHNC100-NIB-23/W-24-P-D-E23-A012 Heavy‑Duty Digital Axis Controller for Hydraulic Motion thumbnail-1
Bosch Rexroth SYHNC100-NIB-23/W-24-P-D-E23-A012 Heavy‑Duty Digital Axis Controller for Hydraulic Motion thumbnail-2

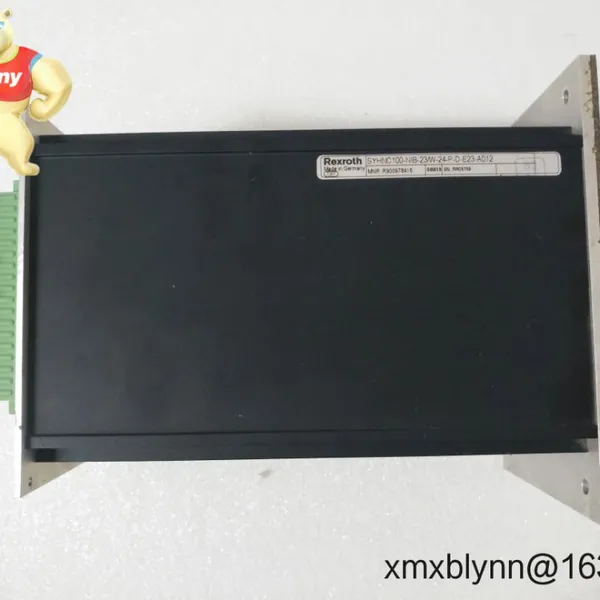

Bosch Rexroth SYHNC100-NIB-23/W-24-P-D-E23-A012 Heavy‑Duty Digital Axis Controller for Hydraulic Motion photo-1

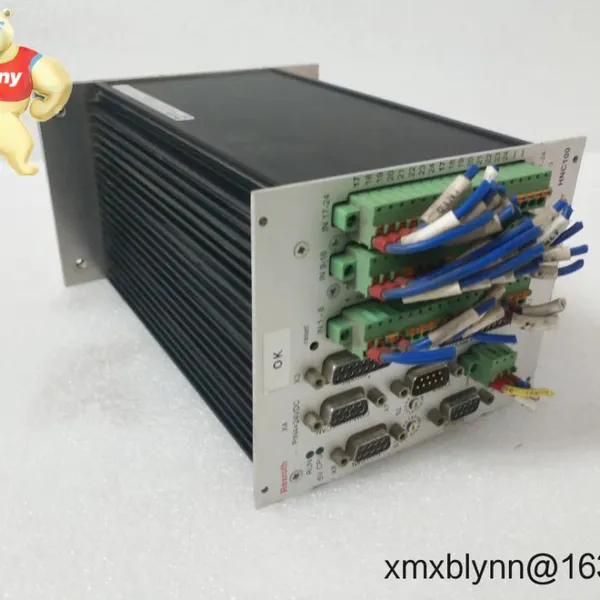

Bosch Rexroth SYHNC100-NIB-23/W-24-P-D-E23-A012 Heavy‑Duty Digital Axis Controller for Hydraulic Motion photo-2
US$ 3216.00 ≥1 Blade
Key Specifications
Get Latest Price
I/O Number:
Rexroth SYHNC100-NIB-23/W-24-P-D-E23
Place of Origin:
America
Communication Interface:
Modubus
Contact Supplier Request Quote Chat Now
Xiamen Xiongba E-commerce Co., LTD
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
I/O Number Rexroth SYHNC100-NIB-23/W-24-P-D-E23
Place of Origin America
Communication Interface Modubus
Product name Variable frequency driver
Model Number SYHNC100-NIB-23/W-24-P-D-E23-A012
Condition NEW
Warranty One Year
Package Original Packaging
HS Code 853710
Order Placement Process & Guarantees

  • Warranty: 365 days

  • Delivery time: 1 week for in‑stock items; no more than one month at the latest

  • Payment terms: 50% advance payment; full payment prior to delivery

  • Express options: FedEx, UPS, DHL

You place the model and quantity, we confirm stock and test status, then proceed with proforma invoice and shipment booking. You might notice that we keep lead times realistic—spare parts are tested and packaged with ESD and moisture protection in most cases.

Key Features

  • Closed-loop hydraulic axis control: Position, pressure, and force control with stable loop behavior for heavy-duty applications.

  • 24 V DC industrial power: Standard cabinet supply simplifies integration with existing control panels.

  • Flexible feedback interfaces: Typically supports incremental/SSI encoders and analog transducers for cylinders and valves.

  • Fieldbus connectivity: Options on this family often include CANopen or PROFIBUS DP; a service port simplifies commissioning.

  • Deterministic cycle times: Consistent control loop timing helps achieve repeatable part quality on presses and molding machines.

  • Robust I/O set: 24 V digital I/O and ±10 V analog signals for valve command, sensor inputs, and interlocks.

  • Commissioning tools: Parameter-based setup reduces startup time and keeps maintenance predictable.

Technical Specifications
Brand / Model Bosch Rexroth / SYHNC100-NIB-23/W-24-P-D-E23-A012 (HNC100 series variant)
HS Code 8537.10 (Programmable controllers; control panels for ≤1000 V)
Power Requirements 24 V DC nominal (typical industrial supply); consumption is low compared to a servo drive and usually under 20 W
Operating Temperature 0…+50 °C in a ventilated control cabinet (non‑condensing)
Signal Input/Output Types 24 V digital I/O; ±10 V analog outputs for valve command; analog inputs for pressure/position transducers; incremental/SSI encoder feedback (E23 option typically indicates encoder capability)
Communication Interfaces Service port (commonly RS‑232/USB adaptor); fieldbus on this family often CANopen or PROFIBUS DP
Installation Method Control cabinet mounting; follow standard EMC wiring and grounding; pair with Rexroth proportional/servo valves

Note: Exact I/O population and bus options depend on the specific option string; the above reflects common capabilities of SYHNC/HNC100 variants.

D1F2A77952A7729F5FB225D562FE4249

Application Fields

  • Metal forming and hydraulic presses needing fast switchover between position and pressure control.

  • Injection molding and die casting machines where repeatability and mold protection typically matter.

  • Servo-hydraulic test rigs and fatigue testers with high-resolution feedback.

  • Timber and paper machinery (log handling, press sections) and retrofits of legacy electro-hydraulic systems.

  • General industrial machinery requiring closed-loop axis control without a full-blown motion PLC.

Advantages & Value

  • Reliability: HNC100 lineage is known for long service life and stable loop control in harsh environments.

  • Compatibility: Works well with Rexroth proportional valves, standard SSI/incremental encoders, and common pressure transducers.

  • Lower integration effort: Parameter-based commissioning and familiar 24 V I/O save build time and panel space.

  • Lifecycle support: In many cases, firmware tools and spare parts are still available across the HNC100 family.

  • Total cost: Compared with replacing a full PLC platform, a dedicated axis controller usually cuts downtime and retrofit cost.

One thing I appreciate is how maintenance teams can replace a unit, reload the parameter set, and be back in production quickly. A maintenance supervisor from a press line told us the “swap‑and‑run” approach reduced unplanned downtime by more than half compared to their old card rack.

Installation & Maintenance

  • Cabinet & environment: Mount in a clean, ventilated control cabinet (IP54 or better). Maintain 24 V DC within tolerance; avoid condensation.

  • Wiring & EMC: Use shielded cables for encoder and analog signals; ground shields at the cabinet side; segregate power and signal wiring.

  • Hydraulic integration: Pair with properly sized Rexroth proportional valves and calibrate deadband/zero to match your hydraulics.

  • Safety: Implement external E‑stop circuits and valve de‑energization; the controller should not be the sole safety device.

  • Routine maintenance: Back up parameter sets; inspect connectors quarterly; keep vents free of dust; check encoder cables and transducer health.

  • Firmware & tools: Keep service software and firmware at supported revisions; update during planned shutdowns after backing up configs.

Quality & Certifications

  • CE compliant for industrial control equipment (typical for this series)

  • RoHS-compliant manufacturing practices

  • Produced under ISO 9001 quality management by the manufacturer

  • 1-year warranty (365 days) as stated above

Helpful Accessories

  • SSI/incremental encoder cables and adapters

  • Pressure/force transducers (4–20 mA or ±10 V) matched to your cylinder ranges

  • Rexroth proportional/servo valves with ±10 V command inputs

  • Fieldbus interface cabling (CANopen or PROFIBUS DP where applicable)
