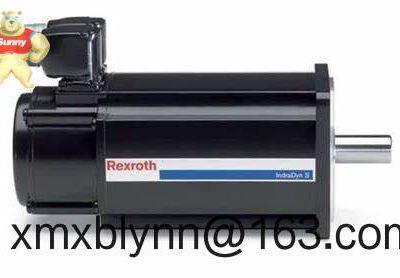

Help CenterBosch Rexroth MSK040C-0600-NN-M1-UG1-NNNN – High‑Torque IndraDyn S Servo Motor for Compact, Fast Axes
Related Products
-
Bosch Rexroth SYHNC100-NIB-23/W-24-P-D-E23-A012 Heavy‑Duty Digital Axis Controller for Hydraulic MotionUS$ 3216.00MOQ: 1 Blade -
Rexroth Indramat DKS01.1-W030B-DL05-00 AC Servo Drive – Reliable 30 A Axis Control for Fast, Precise MotionUS$ 2216.00MOQ: 1 Blade
-
Rexroth PPC-R22.1N-T-Q2-G2-NN-FW – Multi‑Axis Motion and Machine Control for Demanding LinesUS$ 2216.00MOQ: 1 Blade
-
REXROTH FCS01.1E-W0011-A-04-NNBV High‑Efficiency AC Frequency Converter – Energy‑Saving Speed Control for 3‑Phase MotorsUS$ 3216.00MOQ: 1 Blade
-
REXRTOH SYHNC100-NIB-22a/W-24-P-D-E24: The Axis Controller That Keeps Your Production Line Breathing at 3 AMUS$ 236.00MOQ: 1 Blade
Warranty: 365 days
Delivery: 1 week if in stock; no more than 1 month at the latest
Payment: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
High torque density – The MSK040 frame typically delivers strong continuous torque relative to its size, great for tight machine layouts.
Smooth, precise motion – Low cogging design and high-resolution feedback help achieve stable velocity and crisp positioning.
Encoder integrated – Variant-dependent digital feedback compatible with Rexroth IndraDrive; ideal for synchronized multi-axis lines.
Robust construction – Industrial-grade sealing and bearings for 24/7 duty in packaging, assembly, and light machining environments.
Flexible connectors – Motor-side power and feedback connectors oriented per the “UG1” option for easier cable routing in compact cabinets.
Surface cooling – Natural convection/surface-cooled operation; no external fan needed in most use cases.
| Brand / Model | Bosch Rexroth MSK040C-0600-NN-M1-UG1-NNNN (IndraDyn S) |
| HS Code | 8501.31 (AC motors ≤ 750 W, typical classification; confirm per region) |
| Power Requirements | Driven by a compatible Rexroth IndraDrive; motor receives 3‑phase output from the drive (voltage/current per drive and nameplate) |
| Frame / Mounting | Frame size 040; flange mounting (IEC-compatible); M1: keyed shaft variant |
| Cooling & Protection | Surface-cooled (natural convection); housing sealing suitable for industrial environments (IP rating per nameplate) |
| Operating Temperature | Typically 0…+40 °C ambient for rated data (application-dependent) |
| Feedback / I/O | High‑resolution encoder (variant-dependent); integrated thermal sensor; separate power and feedback connectors |
| Brake | Code “NN” typically indicates no holding brake (verify against motor nameplate) |
| Communication Interfaces | Encoder protocol as specified by the variant (e.g., Rexroth-compatible digital feedback via IndraDrive) |
| Installation Method | Flange mount to machine frame; connect to IndraDrive power/feedback cables per Rexroth wiring standards |
From my experience, the MSK040C format fits best where small inertia and quick acceleration matter more than raw horsepower. Typical roles include:
Pick-and-place and SCARA axes in electronics or medical device assembly
Packaging machinery: film feed, sealing jaws, rotary knives, small unwind/rewind stations
Light-duty indexing tables and feeders in printing and labeling
Auxiliary axes on compact CNC, grinding, or EDM handling modules
One packaging client told me they swapped in this MSK040C variant and shaved roughly 12–15% off cycle time without changing their gearbox, simply due to the motor’s torque-to-inertia balance.
Reliability under duty – MSK series motors are built for continuous operation; fewer unplanned stops typically means lower cost of downtime.
Rexroth ecosystem compatibility – Smooth plug-in with IndraDrive (cables, parameter sets, safety options), reducing commissioning effort.
Lifecycle support – Global spare parts and service; firmware and parameter tools widely available to maintenance teams.
Cost control – Compact footprint can avoid mechanical redesign; in many cases you can reuse mounts and couplings thanks to the standardized flange and shaft.
Mounting – Rigidly flange-mount to a flat, vibration-damped surface. Align shaft carefully; avoid side loads beyond spec.
Wiring – Use Rexroth-approved power and encoder cables; maintain proper shielding and grounding to limit EMI. Route power and signal separately where possible.
Environment – Provide free air around the housing for heat dissipation. Keep within typical 0…+40 °C ambient for rated performance.
Safety – Lock-out/tag-out before servicing; discharge drive DC bus; verify connectors are fully seated and strain-relieved.
Routine checks – Inspect connectors and seals, clean dust buildup on the housing, and monitor bearing noise. Update drive firmware/parameters when swapping encoders or windings.
CE compliant; UL/cUL recognition commonly available for MSK series
RoHS-conform design in most current builds
Manufacturer’s warranty typical for Rexroth motors; our sales warranty: 365 days
Rexroth IndraDrive units (e.g., HCS01/HCS02/HCS03 series) sized to the “0600” winding data
Rexroth motor power and feedback cable sets for MSK motors (lengths as required by the installation)
Precision couplings or planetary gearboxes sized for the MSK040 shaft and torque
If you share the exact nameplate or project duty (torque/speed, ambient, brake needed), I can match the winding “0600” and feedback option to a pre-validated IndraDrive sizing, so commissioning is straightforward.
