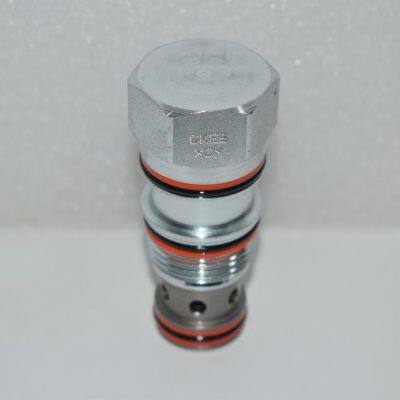

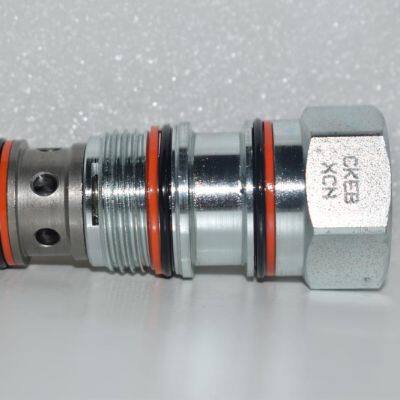

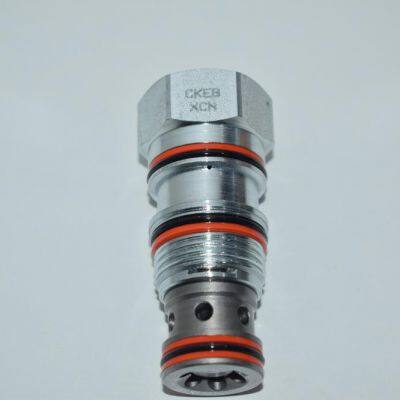

High-Performance Hydraulic-Controlled Directional Valve, Multi-Brand Compatible With Standard Pilot Pressure, Check Valve CKEBXCN
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Socket:
T-2A
Flow Capacity:
120 L/min
Maximum Operating Pressure:
350bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
90 days
Related Products
-
Compatible With Sun and Haidefos Hydraulic Valve Models, Customizable Check Valve CBDCLHNNegotiableMOQ: 1 Piece -
Sun Hydraulics Compatible Hydraulic Valve, Customizable Check Valve CKCBXCVNegotiableMOQ: 1 Piece
-
Alloy Cartridge Valve Compatible With SUN Multi-Brand High-Efficiency Shuttle-Check Valve FSDSXANNegotiableMOQ: 1 Piece
-
Alloy Steel Direct-Operated Hydraulic Sequence Valve, Replaces SUN With Reverse Function Check Valve SCCALDNNegotiableMOQ: 1 Piece
-
Domestic Hydraulic Valve With Throttling Function, Balance Valve Replacing SUN Counterbalance Valve CBBALHNUS$ 21.5 - 22.9MOQ: 1 Piece
Socket
T-2A
Flow Capacity
120 L/min
Maximum Operating Pressure
350bar
Minimum Operating Pressure
0.03bar/1psi
Installation Torque
61-68 Nm
Model Weight
0.24kg
Pilot ratio
3：1
Sealing Material
Nitrile
Optional Sealing Material
Optional
Feature
Standard Pressure Guidance
Trademark
HNZG
Origin
Shangrao City of Jiangxi Province
Contact me for more product information

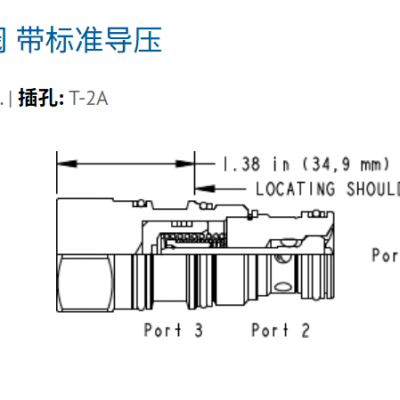

This valve is a pilot-operated hydraulic check valve. It features a non-sealing pressure guide, a steel valve seat, and is non-vented. It allows fluid to flow freely from the valve port (port 2) to the load port (port 1) while blocking reverse flow. The pressure at the pilot port (port 3) opens the valve to allow flow from port 1 to port 2. The pilot pressure required at port 3 to open the valve is directly proportional to the load pressure at port 1. The pressure at port 2 directly opposes the pilot pressure.
