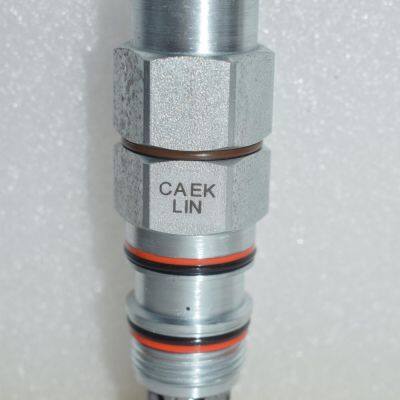

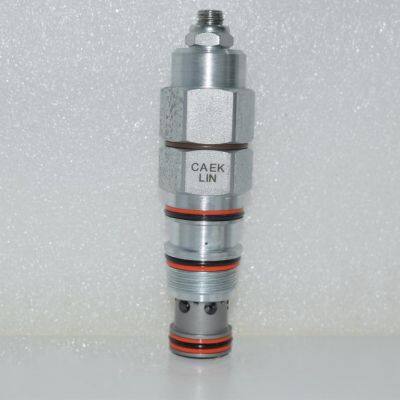

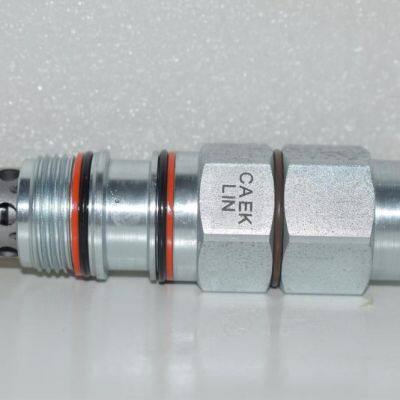

Professionally Manufactured Hydraulic Balance Valves, Compatible With Multiple Brands and Original Quality Valve CAEKLIN
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model:
CAEKLIN
Flow capacity:
120 L/min
Maximum operating pressure:
280 bar
Payment & Shipping
Payment Methods:
Port of Shipment:
No port restrictions
Delivery Detail:
90 days
Related Products
-
High-Quality OEM Compatible Multi-Brand Cartridge Valve Pilot-Assisted Semi-Flow Balance Valve CBBLLJN for Import and ExportNegotiableMOQ: 1 Piece -
Domestic Hydraulic Valve With Throttling Function, Balance Valve Replacing SUN Counterbalance Valve CBBALHNUS$ 21.5 - 22.9MOQ: 1 Piece
-
Imported Standard Balance Valve, Domestic Stock Load Holding Valve, Alloy Steel Counterbalance Valve CBCALHNNegotiableMOQ: 1 Piece
-
OEM Cartridge Valve Compatible With SUN and Other Brands, New Model Balance Valve With External Drain CWCKLINNegotiableMOQ: 1 Piece
-
Balance Valve, Compatible With the Same Model Hydraulic Valves From Sun and HydraForce, Customizable Cartridge Valve CBCALANNegotiableMOQ: 1 Piece
Model
CAEKLIN
Flow capacity
120 L/min
Maximum operating pressure
280 bar
Socket
T-2A
Material
Alloy steel
Valve installation torque
61-68 Nm
Minimum working pressure
28bar
Sealing material
Nitrile
Optional sealing materials
Optional
Control method
Standard
Trademark
HNZG
Origin
Shangrao City, Jiangxi Province
Contact me for more information on products not yet listed

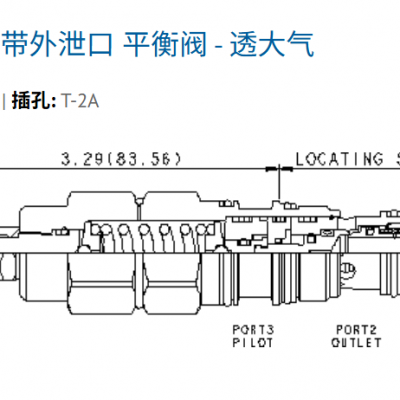

The externally vented pilot-assisted balancing valve is used to control overrunning loads. It allows oil to flow freely in one direction from the directional valve (port 2) to the load port (port 1), while the direct-acting, pilot-assisted relief valve function can control the flow from port 1 to port 2. The pilot assistance at port 3 reduces the effective setting of the relief function according to the pilot ratio coefficient. Since the spring chamber is connected to the atmosphere, the back pressure at port 2 does not affect the valve setting. This valve is also known as a motion control valve or a cross-over center valve.
