Home > Industrial Equipment & Components > Valve > Other Valves & Parts > Balance Valve, Compatible With the Same Model Hydraulic Valves From Sun and HydraForce, Customizable Cartridge Valve CBCALAN

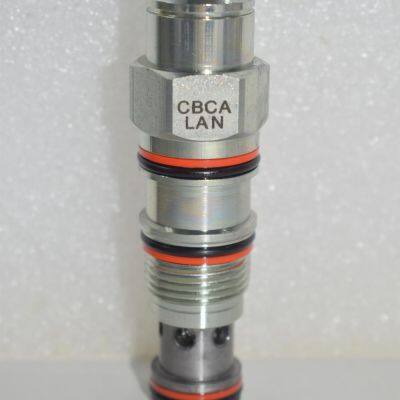

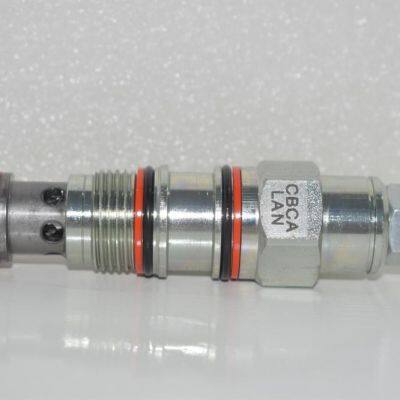

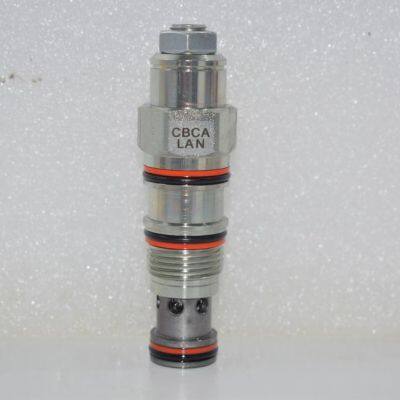

Balance Valve, Compatible With the Same Model Hydraulic Valves From Sun and HydraForce, Customizable Cartridge Valve CBCALAN
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model:
CBCALAN
Flow capacity:
60 L/min
Maximum operating pressure:
280 bar
Payment & Shipping
Payment Methods:
Port of Shipment:
No port restrictions
Delivery Detail:
90 days
Related Products
-
Similar to SUN Hydraulic Valves Customizable High-Performance Balance Valve CWEALINNegotiableMOQ: 1 Piece -
Professionally Manufactured Hydraulic Balance Valves, Compatible With Multiple Brands and Original Quality Valve CAEKLINNegotiableMOQ: 1 Piece
-
High-Quality OEM Compatible Multi-Brand Cartridge Valve Pilot-Assisted Semi-Flow Balance Valve CBBLLJN for Import and ExportNegotiableMOQ: 1 Piece
-
Domestic Hydraulic Valve With Throttling Function, Balance Valve Replacing SUN Counterbalance Valve CBBALHNUS$ 21.5 - 22.9MOQ: 1 Piece
-
Compatible and Interchangeable With Sun, HydraForce, and Caterpillar ‘s Same Name Models, Customizable Non-balanced Conical Valve LOHAXDNNegotiableMOQ: 1 Piece
Model
CBCALAN
Flow capacity
60 L/min
Maximum operating pressure
280 bar
Factory default setting
30cc/min
Pressure ratio
3：1
Valve installation torque
41-47 Nm
Model weight
0.16kg
Sealing material
Nitrile
Optional sealing materials
Optional
Control method
Standard
Trademark
HNZG
Origin
shangrao city of jiangxi province
Contact me to get more information.
The pilot-assisted open balancing valve is used to control overrunning loads. It allows oil to flow freely in one direction from the directional valve (port 2) to the load port (port 1), while the direct-acting, pilot-assisted relief valve function can control the flow from port 1 to port 2. The pilot assistance at port 3 reduces the effective set value of the relief function according to the pilot ratio. This valve is also referred to as a motion control valve or a crossover valve.
