Domestic Hydraulic Valve With Throttling Function, Balance Valve Replacing SUN Counterbalance Valve CBBALHN

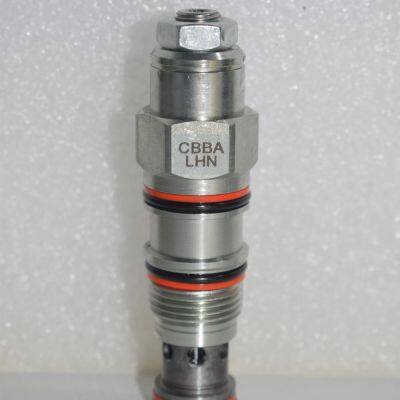

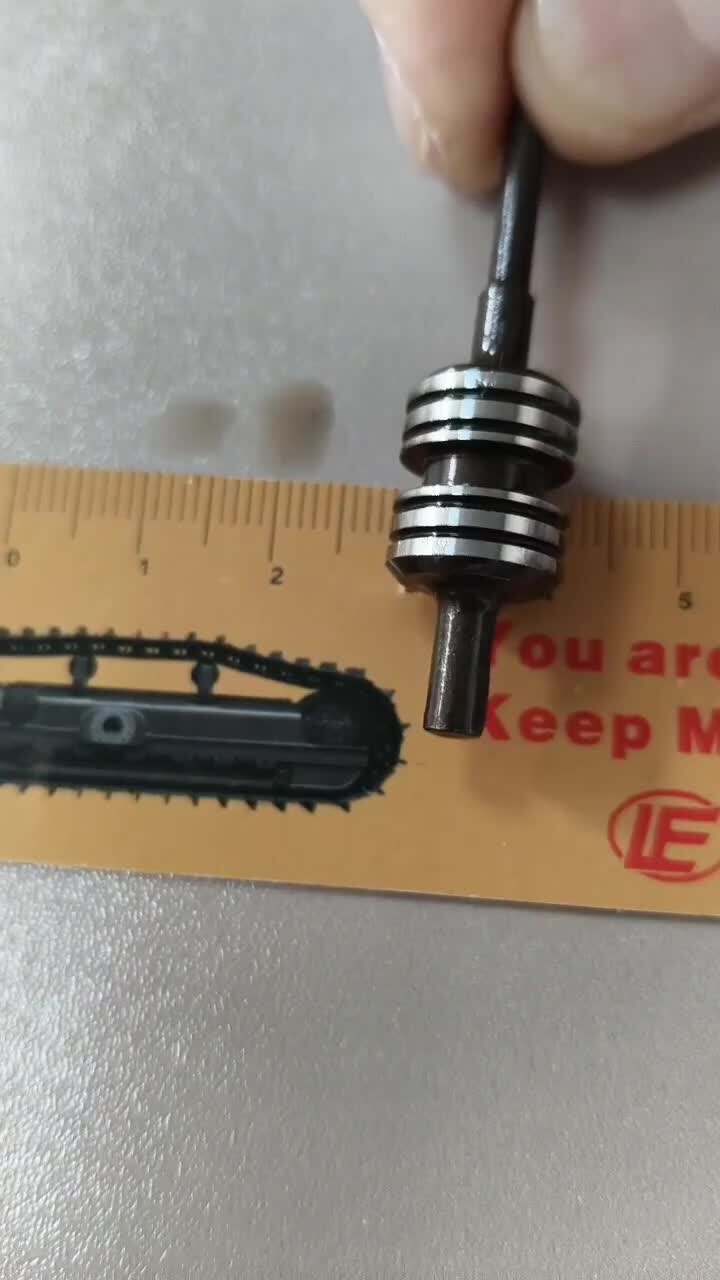

Domestic Hydraulic Valve With Throttling Function, Balance Valve Replacing SUN Counterbalance Valve CBBALHN photo-1

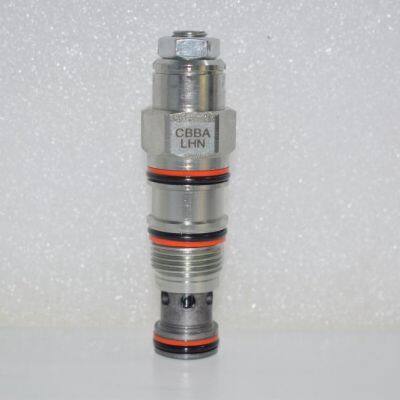

Domestic Hydraulic Valve With Throttling Function, Balance Valve Replacing SUN Counterbalance Valve CBBALHN photo-2
Domestic Hydraulic Valve With Throttling Function, Balance Valve Replacing SUN Counterbalance Valve CBBALHN photo-3

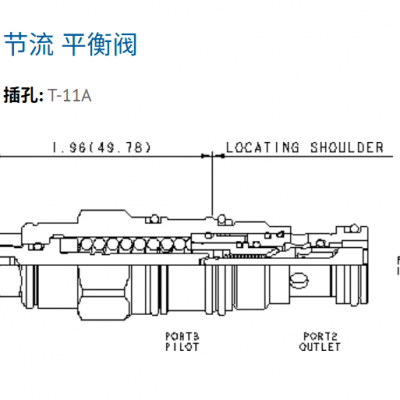

Domestic Hydraulic Valve With Throttling Function, Balance Valve Replacing SUN Counterbalance Valve CBBALHN photo-4
US$ 21.5 - 22.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Socket:
T-11A
Flow Capacity:
20 L/min
Maximum Operating Pressure:
280bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
90 days
Socket T-11A
Flow Capacity 20 L/min
Maximum Operating Pressure 280bar
Factory default setting 30 cc/min
Installation Torque 41-47 Nm
Model Weight 0.16kg
Pilot ratio 3:1
Sealing Material Nitrile
Optional Sealing Material Optional
Feature Throttle
Trademark HNZG
Origin Shangrao City of Jiangxi Province

Contact me for more product information

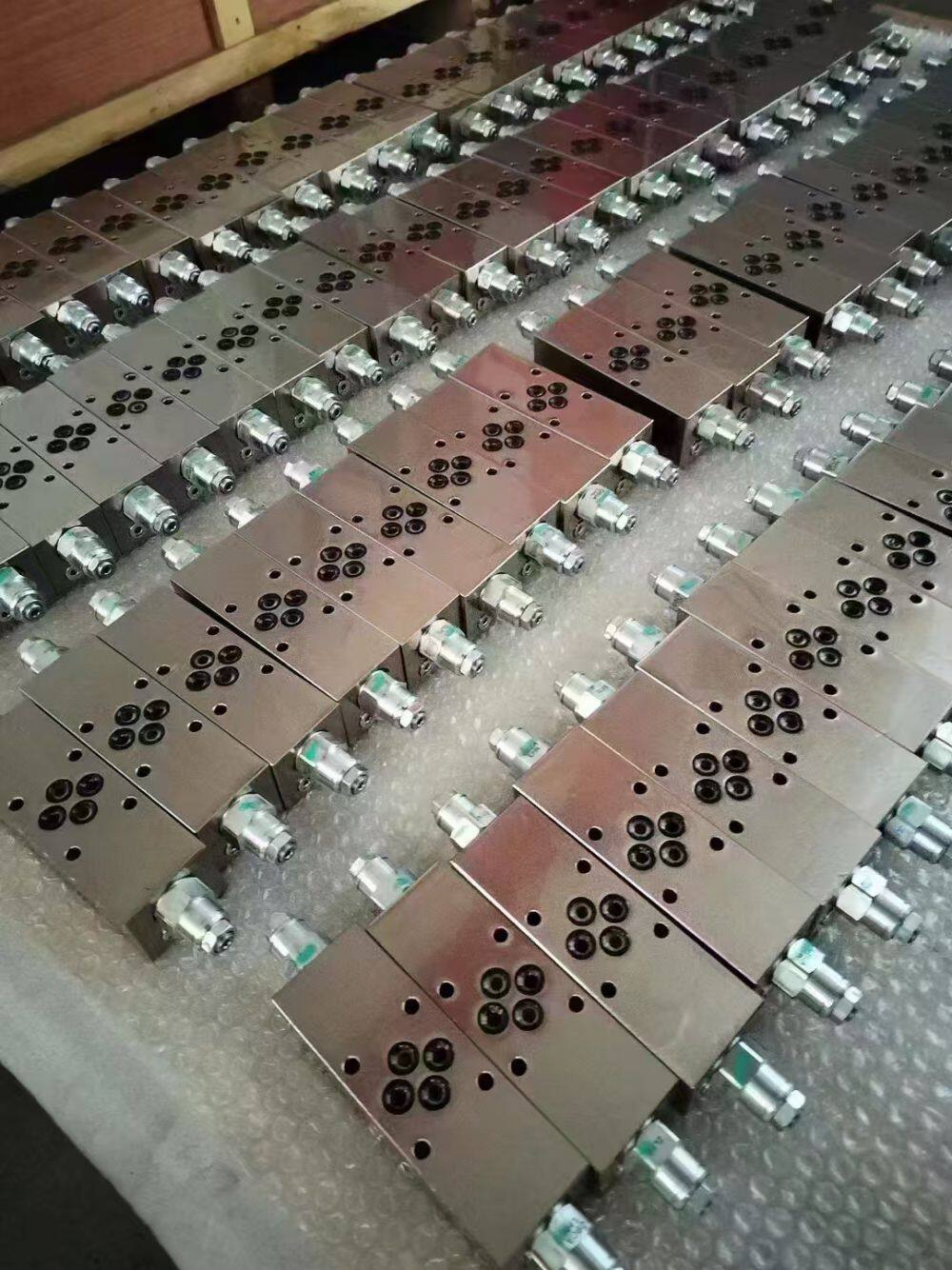

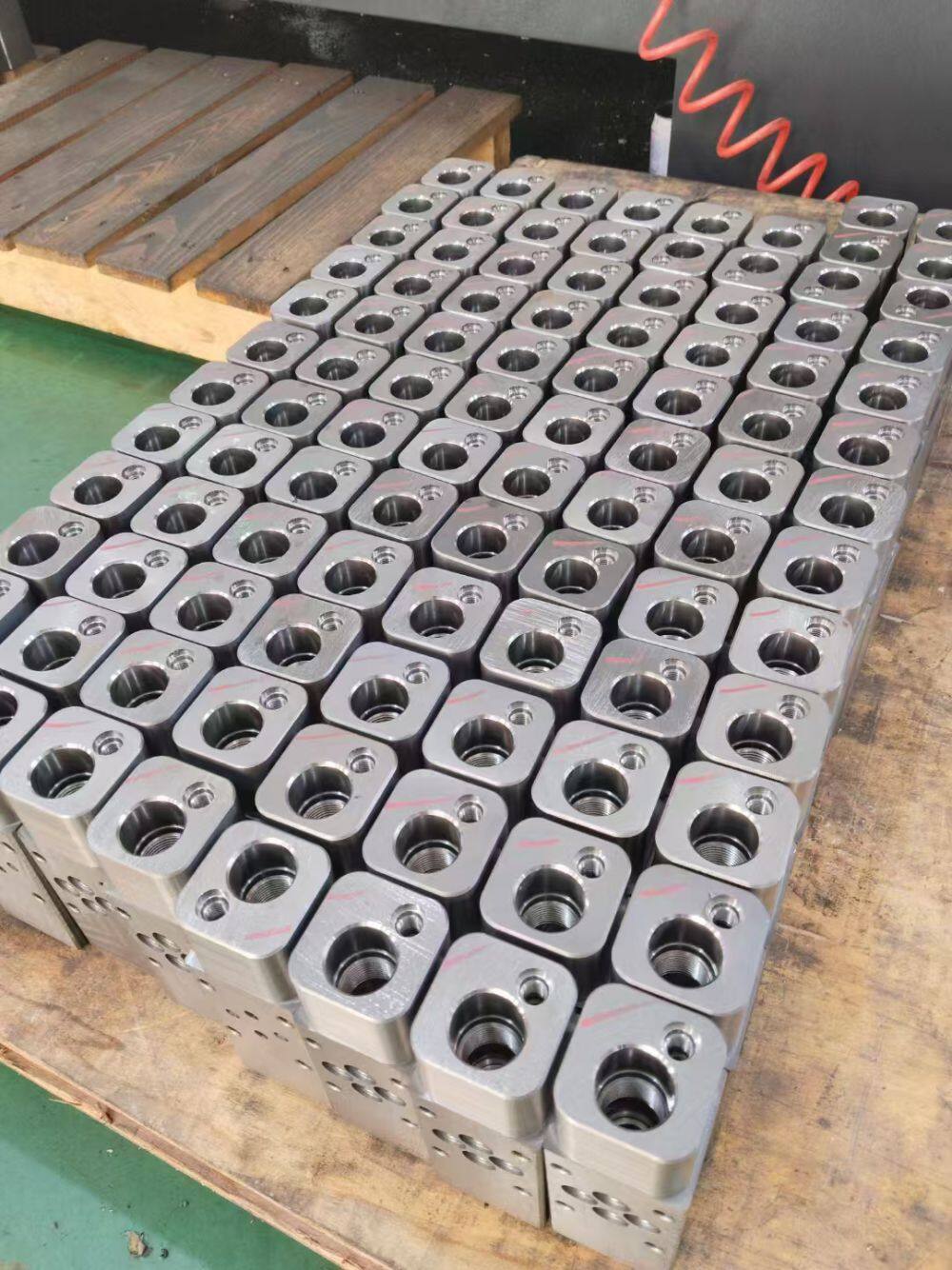

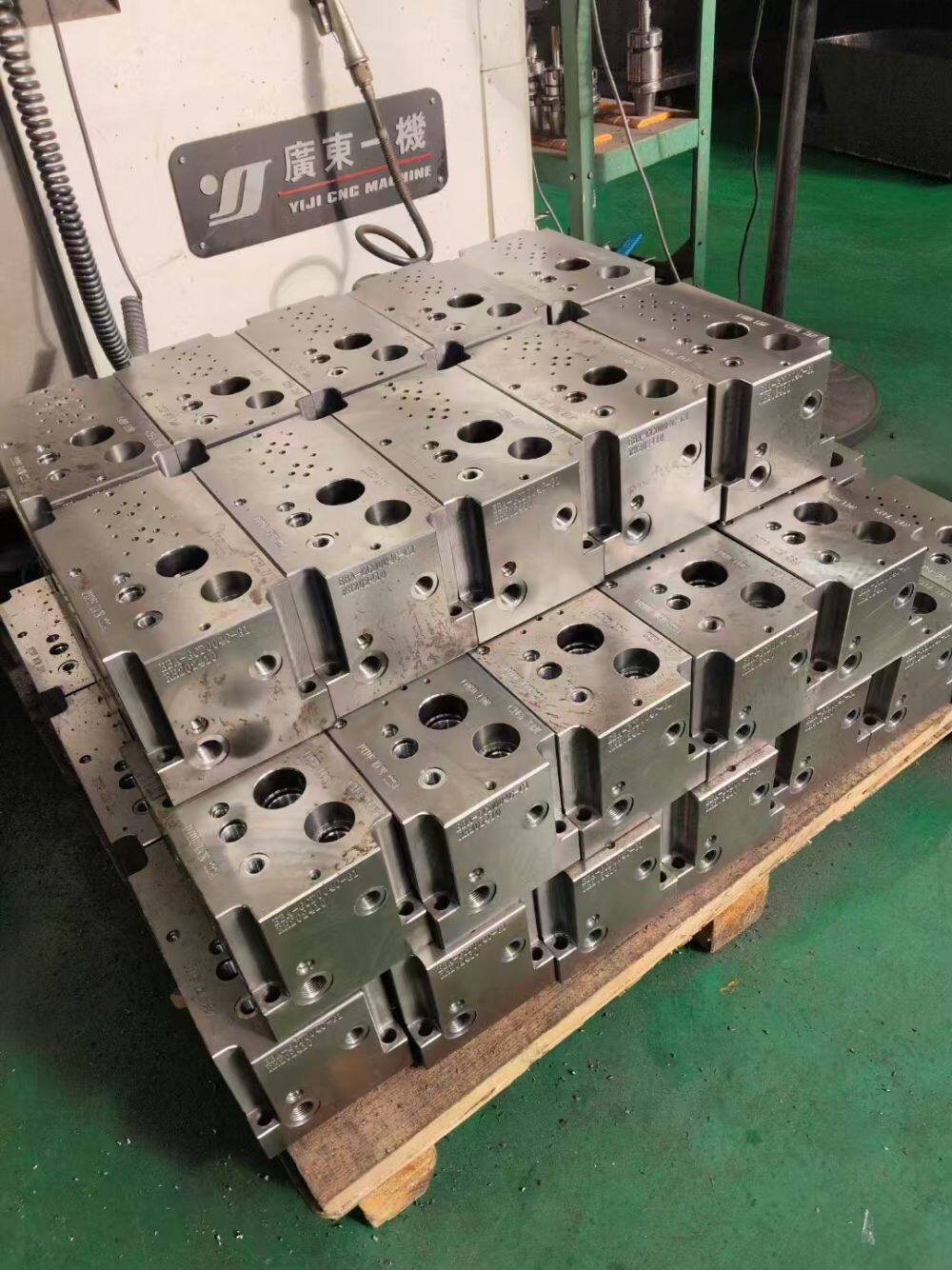

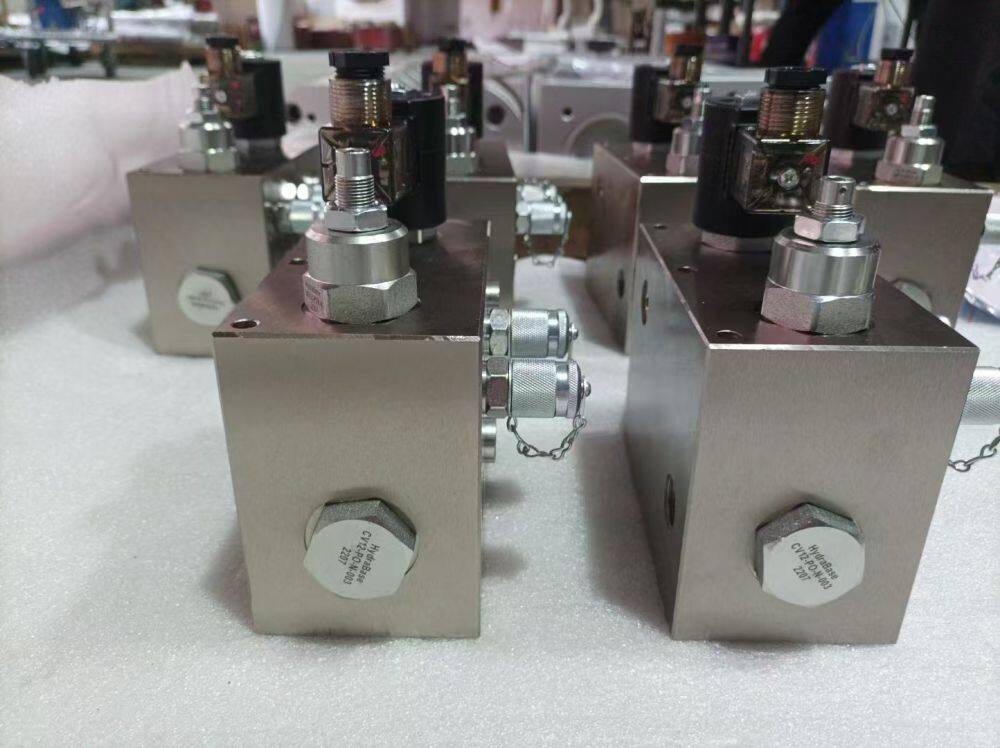

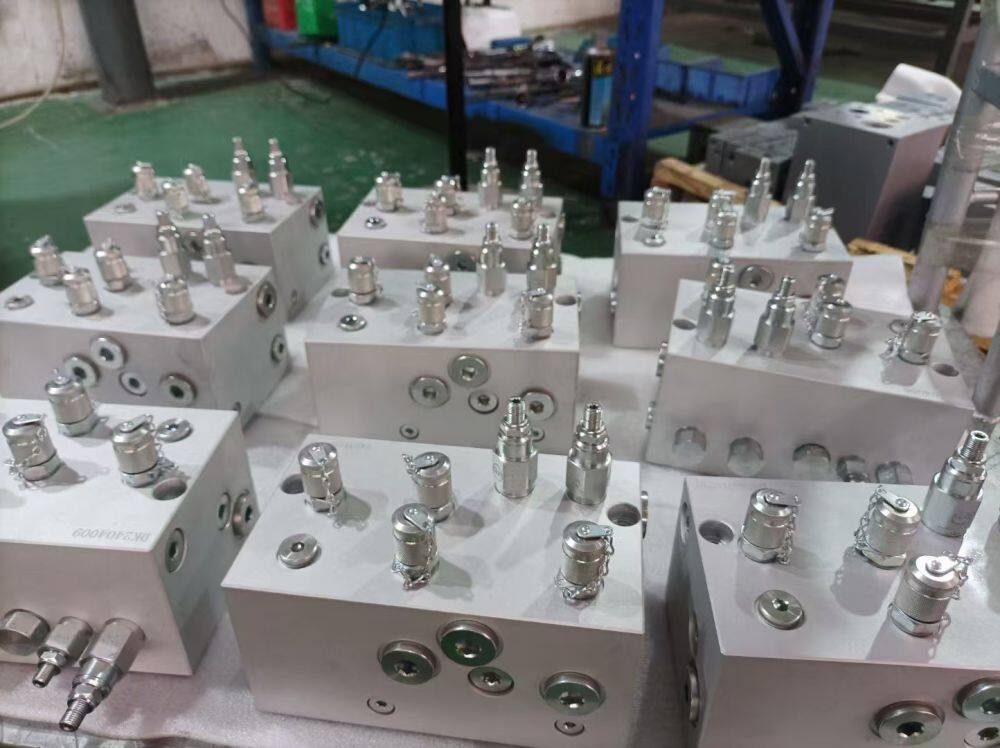

1 (20).jpg1 (23).jpg1 (24).jpg1 (25).jpg1 (26).jpg

The pilot-assisted opening balance valve is used to control overrunning loads. It allows oil to flow freely in one direction from the directional valve (port 2) to the load port (port 1), while the direct-acting, pilot-assisted relief valve function can control the flow of liquid from port 1 to port 2. The pilot assistance at port 3 reduces the effective set value of the relief function according to the pilot ratio coefficient. This valve is also referred to as a motion control valve or a cross-center valve.

Product Tags: Domestic , with Throttling Function , Balance Valve
