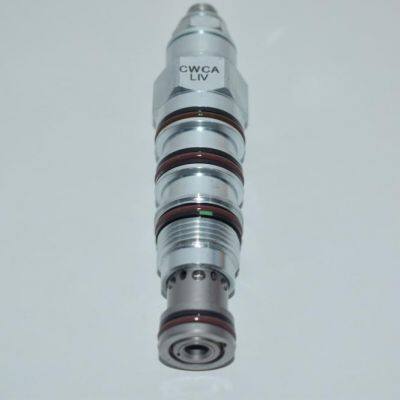

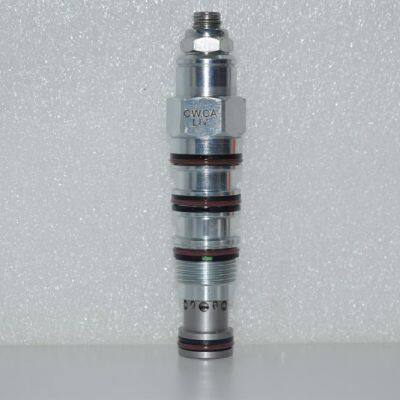

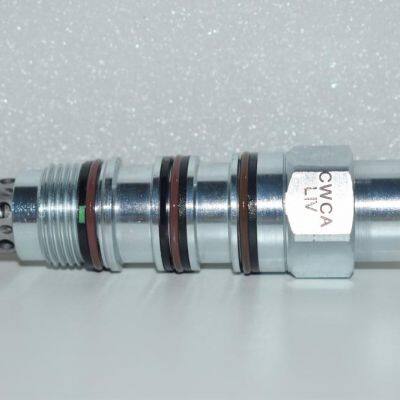

Compatible With Various Models of Hydraulic Valves From Haidefos, Sun, Rexroth; Customizable Balance Valve CWCALIV
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model:
CWCALIV
Flow capacity:
60 L/min
Maximum operating pressure:
280 bar
Payment & Shipping
Payment Methods:
Port of Shipment:
No port restrictions
Delivery Detail:
90 days
Related Products
-
Customizable Relief Valve, Compatible With Sun, HydraForce‘s Same-Name-Model Hydraulic Valves RPGELWNNegotiableMOQ: 1 Piece -
Pilot-Operated OEM Manufactured Hydraulic Valve With Strong Compatibility, Balance Slide Valve, Alloy Steel Relief Valve RPECLNNNegotiableMOQ: 1 Piece
-
Can Replace Sun, Heide Fossen, and Rexroth Valves of the Same Model; Check Valves and Relief Valves Can be Customized RVEALWNNegotiableMOQ: 1 Piece
-
Balance Valve, Compatible With the Same Model Hydraulic Valves From Sun and HydraForce, Customizable Cartridge Valve CBCALANNegotiableMOQ: 1 Piece
-
Compatible and Interchangeable With Sun, HydraForce, and Caterpillar ‘s Same Name Models, Customizable Non-balanced Conical Valve LOHAXDNNegotiableMOQ: 1 Piece
Model
CWCALIV
Flow capacity
60 L/min
Maximum operating pressure
280 bar
Factory default setting
30cc/min
Pressure ratio
3：1
Valve installation torque
41-47 Nm
Model weight
0.19kg
Sealing material
Nitrile
Optional sealing materials
Optional
Control method
Standard
Trademark
HNZG
Origin
shangrao city of jiangxi province
Contact me to get more information of more products

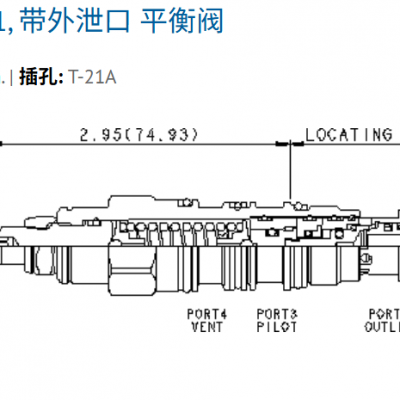

The pilot-assisted, externally actuated balanced valve is used to control overrunning loads. It allows oil to flow freely in one direction from the directional valve (port 2) to the load port (port 1), while the direct-acting pilot-assisted relief function can control the flow of liquid from port 1 to port 2. The pilot assistance at port 3 reduces the effective set value of the relief function according to the pilot ratio. Since the spring chamber is vented through an external port (port 4), the backpressure at port 2 does not affect the valve's set value. This valve is also referred to as a motion control valve or an over-center valve.
