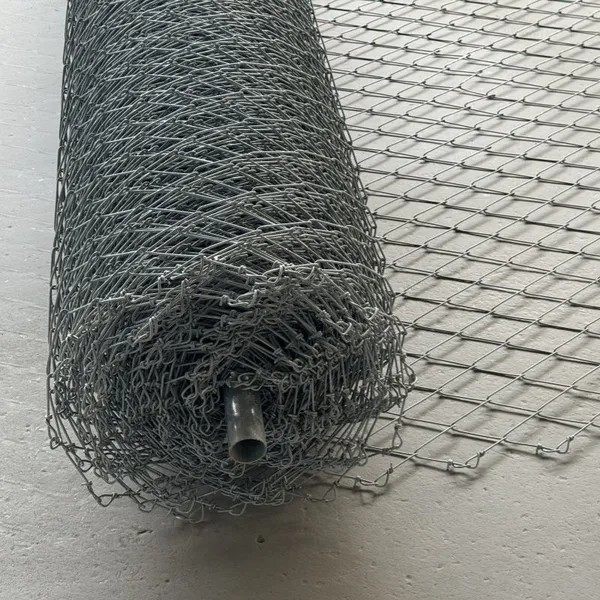

Rhomboid Steel Wire Mesh for Slope Stabilization Rockfall Barrier
US$ 5.60
1 - 9999 Meter
US$ 5.40
≥10000 Meter
Key Specifications
Get Latest Price
Material:
Galfan Steel wire
Type:
Chain Link Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chain Link High Tensile Steel Wire Rockfall Protection Mesh 65/3 for Slope StabilizationUS$ 4.90 - 5.60MOQ: 1000 Meters -
Flexible Slope Reinforcing Mesh Intercept Rockfall Protection Wire MeshUS$ 5.40 - 5.60MOQ: 1 Meter
-
Chain Link Steel Net for Protection Against Rock SlideUS$ 5.40 - 5.60MOQ: 1 Meter
-
Reinforced Hexagonal Wire Mesh for Rockfall and Slope Protection SystemsUS$ 3.00 - 3.10MOQ: 2000 Meters
-
Wholesale Hr30 Rockfall Protection Mesh Reinforced Hexagonal Netting for Slope Protection and RockfallUS$ 2.5 - 11.2MOQ: 1 Meter
Technique
Woven
Model Number
65/3
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Chain link
Product name
Steel wire Mesh
Diameter
3.0mm
Mesh size
83*143mm
Tensile tensile strength
>1770Mpa
Wire Material
High-tensile steel wire
Corrosion protection
super coating
coating
150g/㎡
Tensile resistance of a wire
12.5KN
Tensile strength
110KN/m
High tensile Slope Protection Wire Mesh Manufacturer
Slope stabilization system is a mitigation system consisting of a high-tensile steel wire mesh. It is used in combination with soil and/or rock nails to stabilize steep slopes in unconsolidated material and rock liable to slip and break out.
We have independently developed state-of-the-art production equipment, professional knowledge and experience to provide customers with high-quality high-strength rockfall mesh products, ensuring that the tensile strength of the high-strength mesh meets the requirements and can pass on-site simulation tests. Whether you need standard specifications or customized special high-strength wire mesh products, our use of technology enables us to flexibly provide faster production and shorter delivery times to meet the needs of different customers and industries.
Introduction to Steel Wire Mesh Products：
1. wire diameter:3.0mm
2. high tensile strength :1770Mpa
3. mesh size:80mm x 140mm
4. Mesh shape:diamond
5. Material:high tensile
steel wire
steel wire
6.Corrosion protection:super coating
7.Coating:150g/m2
8.Breaking load of single wire:12.5KN
9.Tensile strength:110KN/m
10.Roll length : Roll = 30m 【as per site requirement 】
10.Roll length : Roll = 30m 【as per site requirement 】
11.Total surface per roll : Roll = 117m²
12.Weight per m² : g = 1.65kg/m²
13.Weight per mesh roll : Roll = 193kg
13.Weight per mesh roll : Roll = 193kg
14.Mesh edges : Mesh ends Knotted
Packing & Delivery
Applications
Our high-strength wire mesh products are used for slope stabilization, erosion control and rockfall protection, providing safer and more sustainable solutions with excellent high tensile properties.
Function
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
