Rhomboid High-tensile Wire Mesh SNS Flexible Slope Stability System Rockfall Protection Fence
US$ 8.00
3000 - 4999 Square Meters
US$ 7.80
≥5000 Square Meters
Key Specifications
Get Latest Price
Material:
High-tensile Wire, High-tensile Steel Wire
Type:
Chain Link Mesh
Application:
Protecting Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Tensile Rockfall Net Slope Stability System Steel Mesh SNS Slope Protection Wire Mesh Rockfall Barriers MeshUS$ 5.20 - 5.80MOQ: 100 Meters -
Factory Sales High Tensile Wire Mesh Slope Protection Wire Mesh for Rock Fall Protect Cover the Slope Wire MeshUS$ 5.20 - 5.80MOQ: 100 Meters
-
3.0mm Woven Steel Wire Mesh High-tensile Mesh With Chain-link Structure for Underground RockburstUS$ 5.20 - 5.80MOQ: 100 Meters
-
Double Twist Hexagonal Mesh Rockfall Netting Drapery System for for Rockfall Mitigation Slope Consolidation WorksUS$ 0.45MOQ: 100 Square Meters
-
HR20 HR30 HR50 HR100 Rock Barrier Netting Custom-Sized Steel Wire Netting for Mountain Road SafetyUS$ 2.5 - 11.2MOQ: 1 Meter
Application
Protecting Mesh
Technique
Woven
Model Number
45/2 65/3 65/4 80/3 80/4 80/4.6 Construction
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Plain Weave
Diameter
2.0mm 3.0mm 4.0mm 4..6mm Construction
Tensile Strength
>1770Mpa
Compound
95%Zn-5%Al alloy coating
Coating
min. 150g /m²

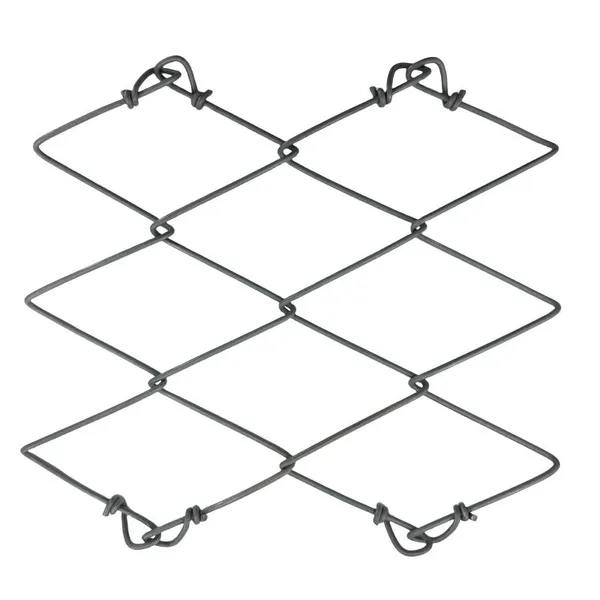

Mesh shape
Rhomboid
Mesh width
48mm,65mm,63mm,80mm,
Roll width
3m Construction
Roll length
10m,20m,30m Construction
Mesh edges
Mesh ends Knotted
Technical data |
45/2 |
65/3 |
65/4 |
||
Wire diameter |
2mm |
3mm |
4mm |
||
Steel quality |
High-tensile steel wire |
||||
Mesh shape |
Rhomboid |
||||
Tensile strength of steel wire |
＞1770 N/mm² |
＞1770 N/mm² |
＞1770 N/mm² |
||
Tensile strength steel wire mesh |
min.85kN/m |
min.150kN/m |
min.150kN/m |
||
Diagonal |
62×95mm（+/-3%） |
83×143mm（+/-3%） |
83×138mm（+/-3%） |
||
Mesh width |
48mm（+/-3%） |
65mm（+/-3%） |
63mm（+/-3%） |
||
Compound protection |
Zn/AI coating of steel wires |
||||
Compound of corrosion protection |
95% Zn / 5% AI |
||||
Coating |
min.125g/㎡ |
min.150g/㎡ |
min.150g/㎡ |
||
≤5% dark brown rust in salt spray test according to EN ISO 9227 |
1500 hours
（ETA-17/0118）
|
1700 hours
（ETA-17/0118）
|
1400 hours
（ETA-17/0118）
|
||
Roll with |
2m，2.5m，3m，3.5m，4m，4.5m，customizable |
||||
Roll length |
10m，20m，30m，as per site requirement customizable |
||||
Mesh edges |
Mesh ebds knotted |
||||

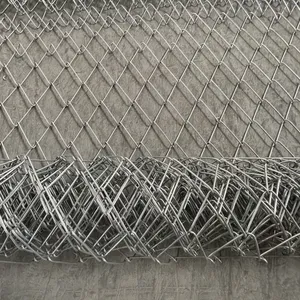

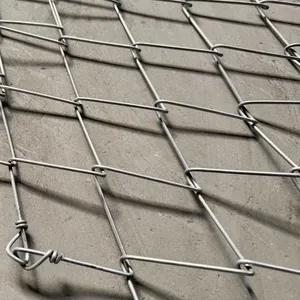

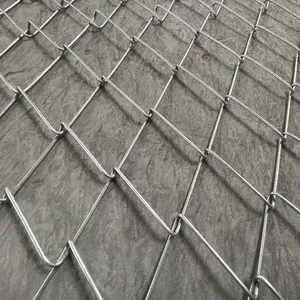

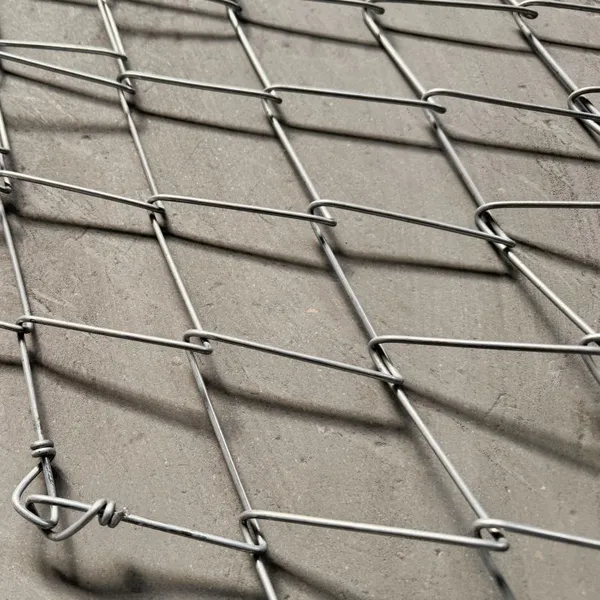

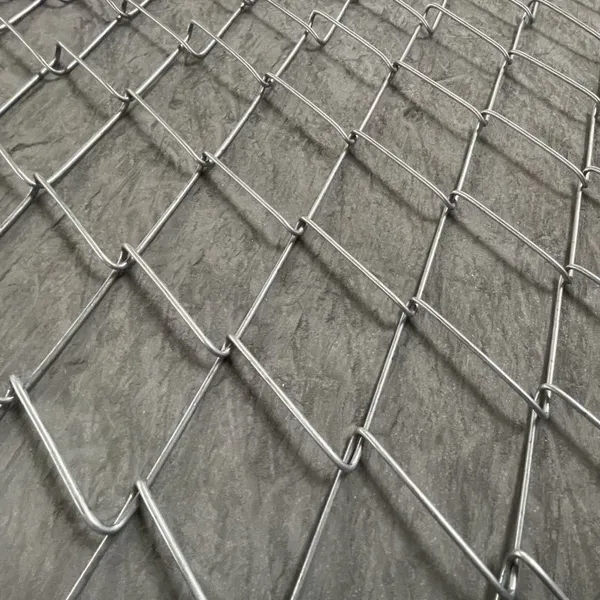

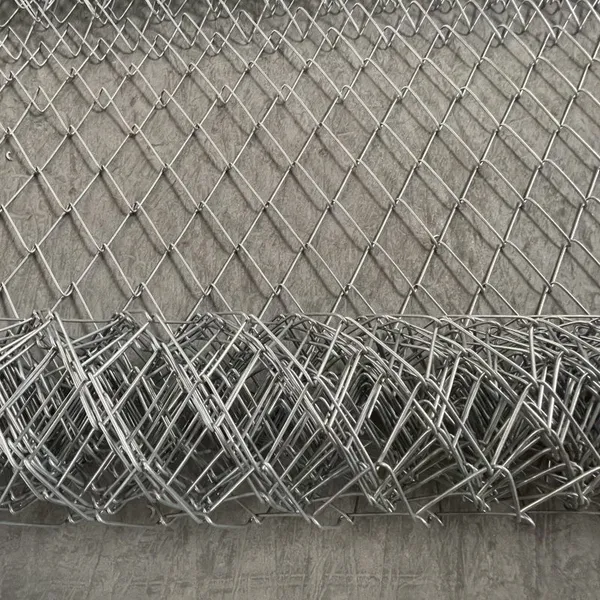

High-tensile Steel Wire mesh Flexible slope stabilization system rockfall barrier mesh
system consists of four main components:
High-tensile Steel Wire Mes
Is made of the high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.

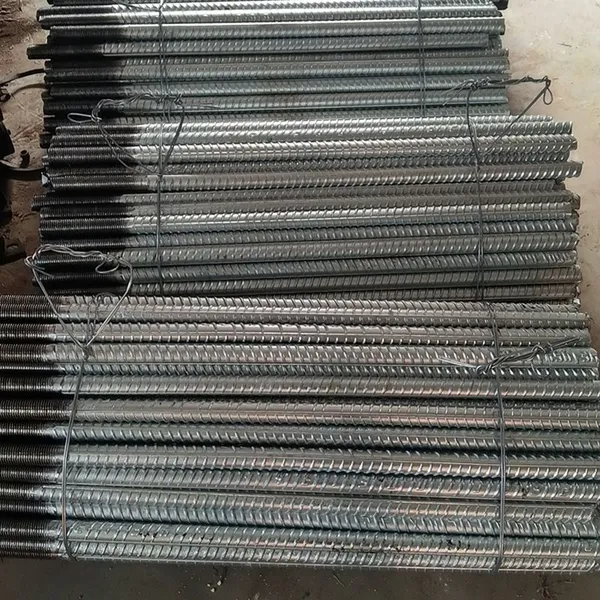

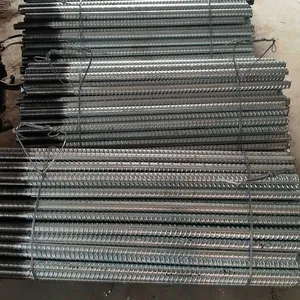

Soil or Rock Nails （Steel Anchor）
steel wire mesh can be anchored in accordance with plan with commercial soil or rock nails. The main anchors of the system are installed in a grid typically from 6.6 to 13.1 ft (2.0 to 4.0m) horizontal and vertical spacing. Anchor consists of commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).

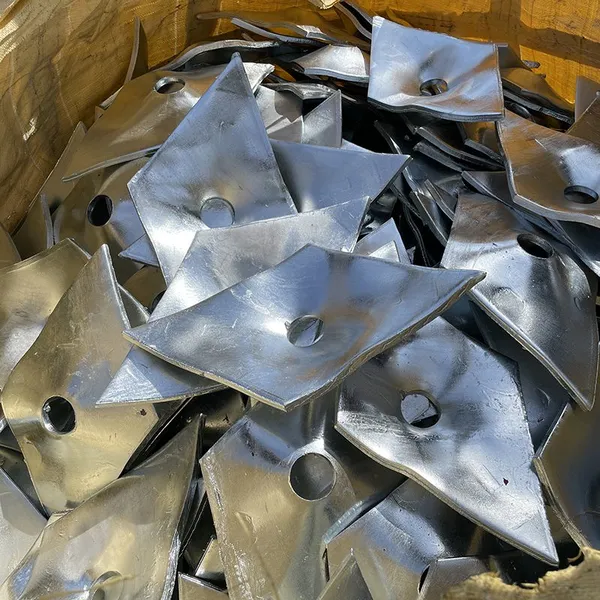

Spike Plates
These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm), 13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.
Application
High-tensile steel wire meshfeaturing 2 mm, 3 mm or 4 mm wire made from high-tensile steel, can be used to stabilize virtually any kind of slope, whether it consists of rock or loose soil. Coupled with either of three different sized spike plates, the TECCO offers an attractive nail grid and, therefore, maximum efficiency during installation.
Rockfall Protection System
Wherever roads, railway lines or other infrastructures need to be protected against rockfall our drapes made from high-tensile steel wire nets are a perfect economical solution. They allow rockfalls to be controlled and guided into the deposition zones.
Rockfall Protection barriers
Due to intercepting rocks and other objects that slide off when the mountain or slope is unstable, it reduces the safety ofpedestrians and vehicles as well as damage to public facilities.
Slope Stabilization System
slope stabilization system is a mitigation system consisting of a high-tensile steel wire mesh. It is used in combination with soil and/or rock nails to stabilize steep slopes in unconsolidated material and rock liable to slip and break out.
Erosion control
Re-vegetation mesh
High-tensile steel wire meshand an erosion control mat. this innovative combination is used to stabilize slopes, dams, and cuttings. At the same time it provides protection against surface erosion and supports vegetation growth – all on a particularly high level of efficiency and performance.
Underground &open pit mining
Rock mesh are used in mines, on access roads, and railway tunnels for reinforcing existing infrastructure or ensuring the utmost stabilization for new structures from the onset, from box cut to abandonment of a mine.
Characteristics of the high-tensile steel wire mesh
●High-tensile steel wire (>256 KSI)
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
