Reinforced Hexagonal Wire Mesh for Rockfall and Slope Protection Systems
US$ 3.10
2000 - 19999 Meters
US$ 3.00
≥20000 Meters
Key Specifications
Get Latest Price
Material:
LOW CARBON STEEL WIRE
Type:
Double Twisted Hexagonal mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale Hr30 Rockfall Protection Mesh Reinforced Hexagonal Netting for Slope Protection and RockfallUS$ 2.5 - 11.2MOQ: 1 Meter -
Double Twisted Hexagonal Woven Mesh for Slope Stabilization & Rockfall Protection Plain Weave Cut-to-Order for SaleUS$ 2.5 - 11.2MOQ: 1 Meter
-
Rhomboid High-tensile Wire Mesh SNS Flexible Slope Stability System Rockfall Protection FenceUS$ 7.80 - 8.00MOQ: 3000 Square Meters
-
High Tensile Rockfall Net Slope Stability System Steel Mesh SNS Slope Protection Wire Mesh Rockfall Barriers MeshUS$ 5.20 - 5.80MOQ: 100 Meters
-
Factory Sales High Tensile Wire Mesh Slope Protection Wire Mesh for Rock Fall Protect Cover the Slope Wire MeshUS$ 5.20 - 5.80MOQ: 100 Meters
Technique
Woven
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
22-30 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Double Twisted
Product name
Hexagonal Rockfall Netting
Wire diameter
2.7
Selvedge wire diameter
3.4
Construction
Double Twist
Corrosion Protection
Zn or Zn-Al Galvanized or Zn-Al with PVC
Coating
245g/㎡
Roll Length
25mm,customizable
Roll width
3mm,customizable
Usage
Rockfall and slope Protection
Wholesale Reinforced Hexagonal wire mesh for Rockfall and slope Protection mesh
Area of Application

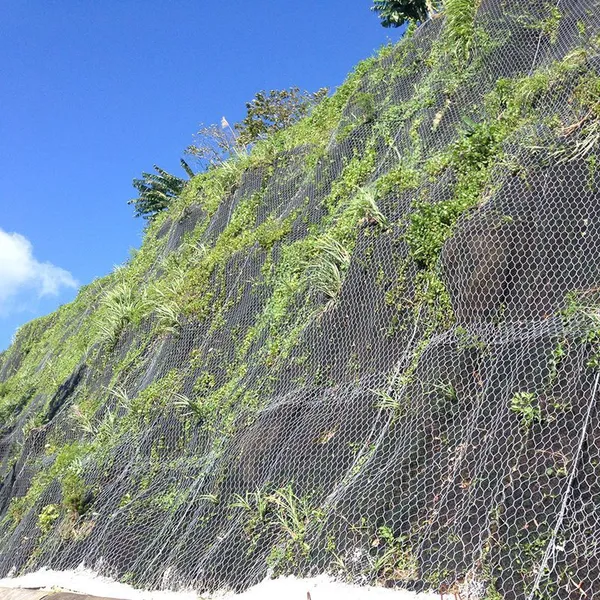

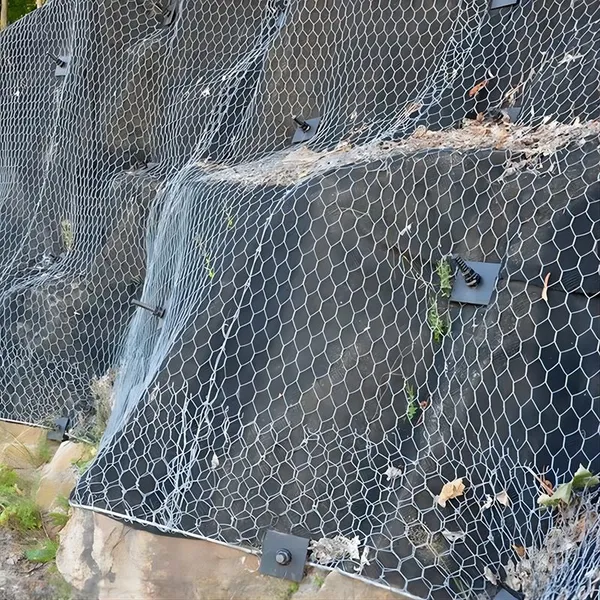

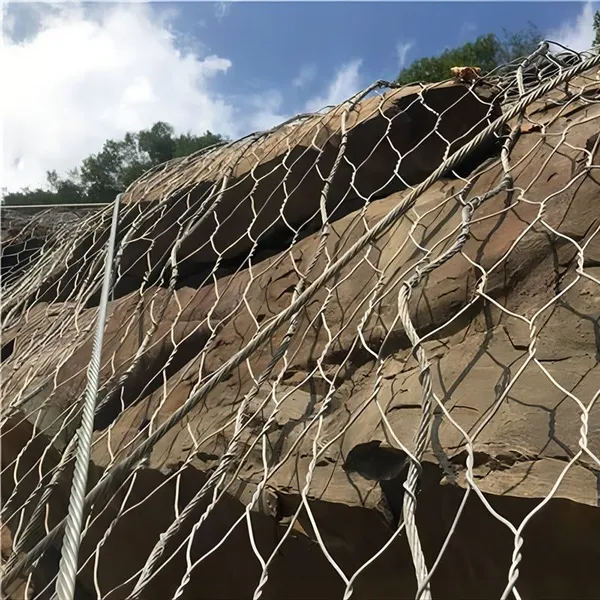

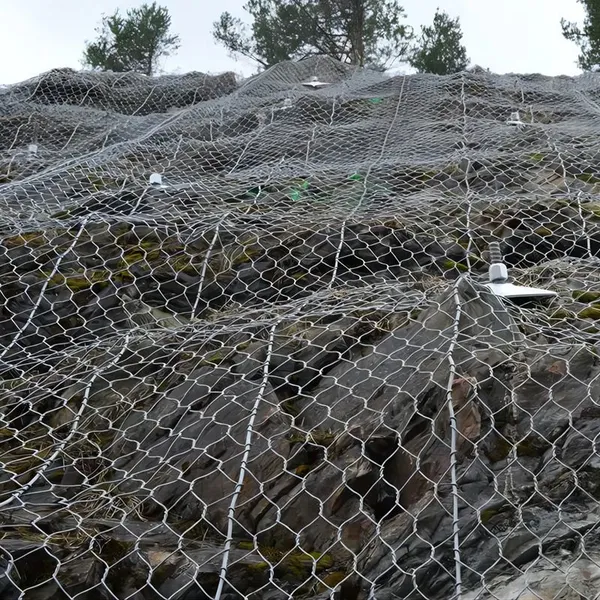

Hexagonal netting 60/80/2.7 is a double twisted mesh product used for standard strength applications in slope stabilization solutions. The mesh can be used for both stabilizing slopes as a pinned mesh system, as well as installed to control erosion as a drape system.
Hexagonal netting 60/80/2.7 is a double twisted mesh product used for standard strength applications in slope stabilization solutions. The mesh can be used for both stabilizing slopes as a pinned mesh system, as well as installed to control erosion as a drape system.
Technical Data
Model |
60/80/2.7 |
80/100/2.7 |
80/100/3.0 |
Mesh Size (mm) |
60 × 80 |
80 × 100 |
80 × 100 |
Mesh Opening (mm) |
60 |
80 |
80 |
Wire Diameter (mm) |
2.7 |
2.7 |
3.0 |
Selvedge Wire Diameter |
3.4 |
3.4 |
3.9 |
Number of Mesh Openings, Length (per m) |
17 |
17 |
13 |
Number of Mesh Openings, Width (per m) |
13 |
13 |
10 |
Fastener Diameter |
3.0 |
3.0 |
3.0 |
Roll Length (m) |
25 |
25 |
25 |
Roll Width (m) |
3.0 |
3.0 |
3.0 |
Physical Properties
Model |
60/80/2.7 |
80/100/2.7 |
80/100/2.7 |
Wire Diameter (mm) |
2.7 |
2.7 |
2.7 |
Wire Tensile Strength (N/mm2) |
350–550 |
350–550 |
350–550 |
Wire Elongation (%) |
＞ 10 |
＞ 10 |
＞ 10 |
Min. Mass of Coating (g/m2) |
245 |
245 |
255 |
Mesh Opening (mm) |
60 × 80 |
80 ×100 |
80× 100 |
Mesh Tensile Strength, Lengthwise (kN/m) |
44 |
52 |
62 |
Mesh Tensile Strength, Crosswise (kN/m) |
23 |
27 |
29 |
Mesh Puncture Strength (kN) |
Not applicable |
Not applicable |
32 |
Features of hexagonal wire mesh
- Corrosion and rust resistance.
- Weather resistance.
- High tensile strength.
- Easy to install and uninstall.
- Environmental friendly.
- Wide range of applications.
- Corrosion and rust resistance.
- Weather resistance.
- High tensile strength.
- Easy to install and uninstall.
- Environmental friendly.
- Wide range of applications.
