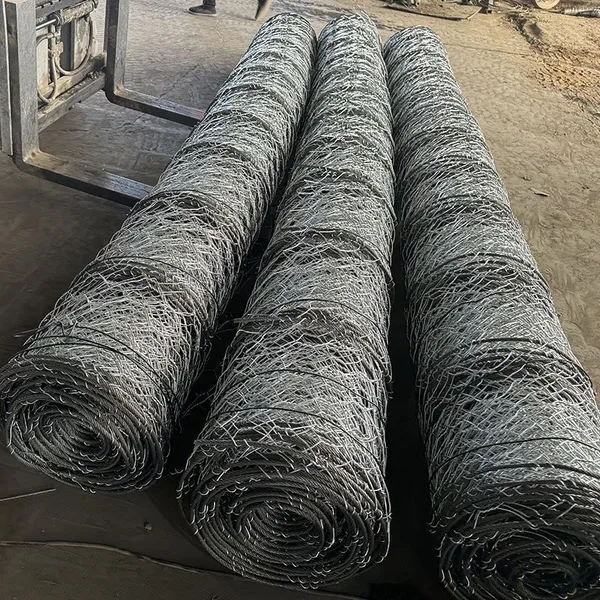

Galvanized Hexagonal Mesh Gabion Rockfall Netting PVC Coated Plain Weave Woven Netting for Rockfall Protection Competitive Price
US$ 2.5 - 11.2
MOQ: 1 Meter
Key Specifications
Get Latest Price
Material:
Galvanized Steel Wire
Type:
Reinforced Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Supply 60*80mm Galvanized Hexagonal Wire Mesh Barrier Plain Weave Technique for Slope Vegetation Zn-Al Woven MaterialUS$ 2.5 - 11.2MOQ: 1 Meter -
Hr20 Barrier Netting Slope Security Wire Mesh Factory for Rock Falling ProtectionUS$ 2.5 - 11.2MOQ: 1 Meter
-
High Tensile Strength Rock Netting Plain Weave Drapery Mesh for Slope Rockfall Movement Factory Price Cutting Processing ServiceUS$ 2.5 - 11.2MOQ: 1 Meter
-
Wholesale Hexagonal Woven Steel Wire Mesh Netting Rockfall Protection for Slope With Custom Cutting ServiceUS$ 2.5 - 11.2MOQ: 1 Meter
-
Hexagonal Galvanized Steel Wire Mesh Factory Sale Grid for Snow Avalanche Rockfall Barriers Custom Cutting Processing ServiceUS$ 2.5 - 11.2MOQ: 1 Meter
Technique
Woven
Model Number
Rhrock5
Brand Name
longen
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Cutting
Weave Style
Plain Weave
Feature
Double Twist
Corrosion Protection
Zn or Zn-Al Galvanized or Zn-Al with PVC
Roll Length (m)
25m
Roll width (m)
3m
Mesh Opening (mm)
60 * 80 80 * 100
Wire Diameter (mm)
2.7mm 3.0mm
Selvedge Wire Diameter
3.4/3.9mm
Product name
Hexagonal Wire Mesh barrier Hexagonal Netting for slope vegetation
fitting
Rope Anchor /Spike plates/ Steel Rings
Product Description
Hexagonal rockfall netting is a high-tensile wire mesh system engineered to prevent rockslides and falling debris. This galvanized steel mesh, available in rolls for easy installation, features durable PVC-coated or Galfan-coated construction options.
Ideal for cliff face reinforcement, mountain slope protection, and embankment stabilization, its double-twisted hexagonal pattern provides superior impact resistance. Choose between corrosion-resistant stainless steel wire, low-carbon steel wire, or zinc-aluminum alloy variants to match terrain requirements in coastal, alpine, or industrial environments.
Engineered to Outperform Falling Rocks !
Contact me for best quotation and best solution for slope!
Specification
HR Variant | Nominal longitudinal tensile strength (Peak value) | Ultimate punching force | Ultimate punching displacement | Nominal roll width (by container) | Nominal roll length |
HR 20 | 255 ± 5 kN/m | 195 ± 5 kN | 230 ± 10 mm | 2.75m | 25/40m |
HR 30 | 180 ± 10 kN/m | 155 ± 12 kN | 400 ± 50 mm | 2.85m | 25/40m |
HR 50 | 130 ± 10 kN/m | 125 ± 12 kN | 450 ± 50 mm | 2.75m | 25/40m |
HR 100 | 83 ± 5 kN/m | 90 ± 8 kN | 450 ± 50 mm | 2.85m | 25/40m |
Quality you can rely on.
We provide customers with the best quality products and services at competitive prices. The factory has introduced a quality management system based on ISO 9001 standards.
We provide customers with the best quality products and services at competitive prices. The factory has introduced a quality management system based on ISO 9001 standards.

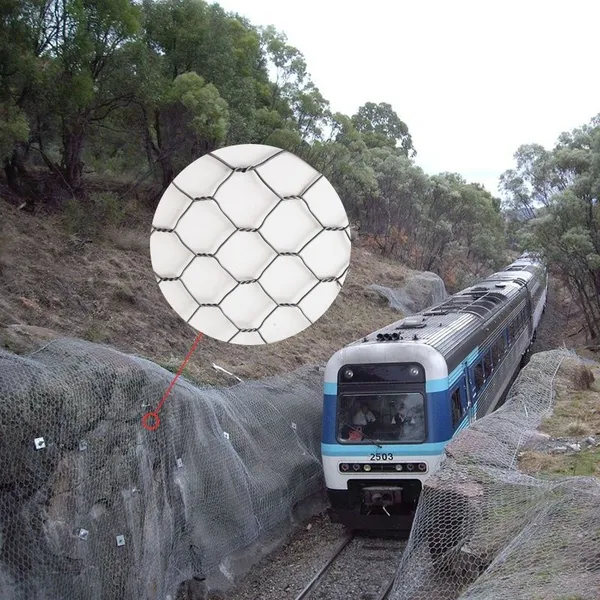

Application
What types of applications can rockfall protection be used for?
Rockfalls can endanger people and property, and if you are in an environment where this is a possibility, you must consider the option of metal mesh rockfall protection. Places where rockfall protection is commonly needed include:
Nature trails and parks: Recreational areas that have exposed rock walls, such as cliffs and rock formations, in nature may
require rockfall protection.
Construction sites: Construction sites need to be safe, and during construction, loose debris and rocks are likely to fall off,especially if demolition is involved. Even if a property has passed the demolition stage, accidents and dangers can occur, and wire mesh can add a layer of safety and protection between the site and the outside world.
Roads: While winding roads on mountainsides may be picturesque, landslides can occur at any time. Highways and other
transportation corridors require additional protection to protect pedestrians and vehicles.
Hillary or mountainous areas: Any building near rock walls and cliffs needs additional protection from potential rock falls.
Rockfalls can endanger people and property, and if you are in an environment where this is a possibility, you must consider the option of metal mesh rockfall protection. Places where rockfall protection is commonly needed include:
Nature trails and parks: Recreational areas that have exposed rock walls, such as cliffs and rock formations, in nature may
require rockfall protection.
Construction sites: Construction sites need to be safe, and during construction, loose debris and rocks are likely to fall off,especially if demolition is involved. Even if a property has passed the demolition stage, accidents and dangers can occur, and wire mesh can add a layer of safety and protection between the site and the outside world.
Roads: While winding roads on mountainsides may be picturesque, landslides can occur at any time. Highways and other
transportation corridors require additional protection to protect pedestrians and vehicles.
Hillary or mountainous areas: Any building near rock walls and cliffs needs additional protection from potential rock falls.
Detailed Images
Packing & Delivery
Company Profile
FAQ
Q1: What are your payment terms?
A1: We accept wire transfer (T/T), Letter of Credit (L/C), Western Union, or payments via Alibaba. Terms: 30% deposit upfront,
with the remaining 70% due before shipment. We provide photos and packaging details for your approval before final payment.
Q2: Do you offer after-sales support?
A2: Quality and service are our top priorities. Complimentary after-sales assistance is provided to ensure long-term satisfaction.
Q3: Can you produce custom-designed products?
A3: Yes, we specialize in bespoke manufacturing based on your designs, specifications, or technical drawings.
Q4: How do you justify your pricing?
A4: Our quotations include transparent cost breakdowns to demonstrate competitive and fair pricing.
Q5: Do you accept client-provided designs?
A5: Absolutely. We work closely with your designs to deliver tailored solutions.
A1: We accept wire transfer (T/T), Letter of Credit (L/C), Western Union, or payments via Alibaba. Terms: 30% deposit upfront,
with the remaining 70% due before shipment. We provide photos and packaging details for your approval before final payment.
Q2: Do you offer after-sales support?
A2: Quality and service are our top priorities. Complimentary after-sales assistance is provided to ensure long-term satisfaction.
Q3: Can you produce custom-designed products?
A3: Yes, we specialize in bespoke manufacturing based on your designs, specifications, or technical drawings.
Q4: How do you justify your pricing?
A4: Our quotations include transparent cost breakdowns to demonstrate competitive and fair pricing.
Q5: Do you accept client-provided designs?
A5: Absolutely. We work closely with your designs to deliver tailored solutions.
