Chain Link High Tensile Steel Wire Rockfall Protection Mesh 65/3 for Slope Stabilization
US$ 5.60
1000 - 4999 Meters
US$ 5.40
5000 - 9999 Meters
US$ 5.10
10000 - 19999 Meters
US$ 4.90
≥20000 Meters
Key Specifications
Get Latest Price
Material:
High-tensile Steel Wire
Type:
Rockfall protection mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GTC-65 SNS Flexible Slope Reinforcing Mesh G65/3 G65/4 Intercept Rockfall Protection Wire High Tensile Strength Mesh WholesaleUS$ 5.40 - 5.60MOQ: 1 Meter -
Chain Link Steel Net for Protection Against Rock SlideUS$ 5.40 - 5.60MOQ: 1 Meter
-
Reinforced Hexagonal Wire Mesh for Rockfall and Slope Protection SystemsUS$ 3.00 - 3.10MOQ: 2000 Meters
-
Wholesale Hr30 Rockfall Protection Mesh Reinforced Hexagonal Netting for Slope Protection and RockfallUS$ 2.5 - 11.2MOQ: 1 Meter
-
Double Twisted Galvanized Steel Hexagonal Woven Mesh Slope Stabilization Rockfall Protection High Strength Plain Weave CuttingUS$ 2.5 - 11.2MOQ: 1 Meter
Technique
Woven
Model Number
65/3
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8 ~ 14 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Chain link
Product name
Rockfall protection mesh
Diameter
3.0mm
Mesh size
inscribed circle diameter of mesh 65 mm
Tensile tensile strength
>1770Mpa
Wire Material
High-tensile steel wire
Compound protection
Zn/AI coating of steel wires
Compound of corrosion protection
95% Zn / 5% AI
coating
150g/㎡

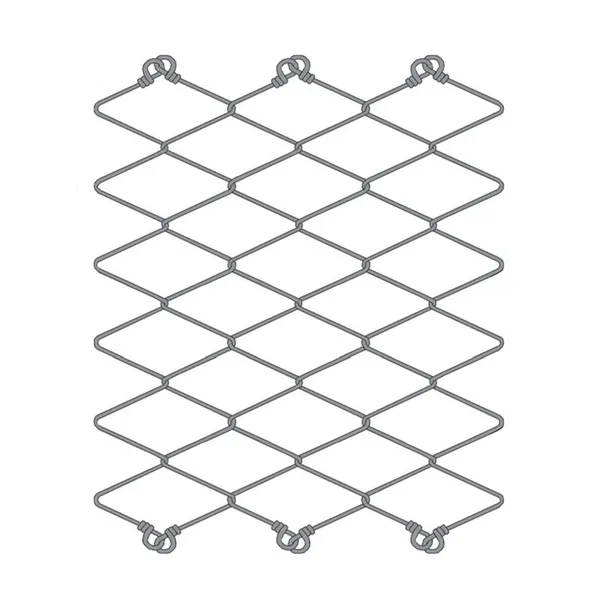

Mesh edges
Mesh ebds knotted
Slope Rockfall Protection Mesh
Wherever roads, railway lines or other infrastructures need to be protected against rockfall our rockfall protection mesh made from high-tensile steel wire nets are a perfect economical solution. They allow rockfalls to be controlled and guided into the deposition zones.
Slope Protection Wire Mesh are engineered with high-quality materials that are built to withstand the forces of nature. These systems are designed to be long-lasting, ensuring durable protection against rockfalls over an extended period. This reliability reduces the need for frequent maintenance and replacement, saving you time and money in the long run.
Our factory can provide various specifications of slope protection wire mesh products.
-For details, please contact us
Product Description
Our nets and meshes have a wire tensile-strength of over 1770 N/mm2 and can withstand high dynamic loads without big deformation.
Specification
Technical Data Sheet
CE European Technical Approval ETA-17/0118
Technical data |
65/3 |
Wire diameter |
3mm |
Steel quality |
high-tensile steel wire |
Tensile resistance of a wire |
12.5kN |
Mesh shape |
Rhomboid |
Tensile strength of steel wire |
＞1770 N/mm² |
Tensile strength steel wire mesh |
min.150kN/m |
Diagonal |
83×143mm（+/-3%） |
Mesh width |
65mm（+/-3%） |
Compound protection |
Zn/AI coating of steel wires |
Compound of corrosion protection |
95% Zn / 5% AI |
Coating |
min.150g/㎡ |
≤5% dark brown rust in salt spray test according to EN ISO 9227 |
1700 hours（ETA-17/0118） |
Roll with |
2m，2.5m，3m，3.5m，4m，customized |
Roll length （as per site requirement） |
10m，20m，30m，customized |
Mesh edges |
Mesh ebds knotted（customized） |
Details Images
Main Components
High-tensile Steel Wire Mes
Is made of the high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.
Soil or Rock Nails （Steel Anchor）
steel wire mesh can be anchored in accordance with plan with commercial soil or rock nails. Anchor consists of commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).
Spike Plates
Rigid spike plates reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the Steel Wire Mesmesh.These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.
The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm), 13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.
Packing & Delivery
Product Application
Function
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
Characteristics of the high-tensile steel wire mesh
●High-tensile steel wire (>256 KSI)
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
