Factory Sales High Tensile Wire Mesh Slope Protection Wire Mesh for Rock Fall Protect Cover the Slope Wire Mesh
US$ 5.80
100 - 4999 Meters
US$ 5.60
5000 - 9999 Meters
US$ 5.40
10000 Meters
US$ 5.20
≥10001 Meters
Key Specifications
Get Latest Price
Material:
High-tensile Steel wire, High-tensile Steel wire
Type:
Chain Link Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3.0mm Woven Steel Wire Mesh High-tensile Mesh With Chain-link Structure for Underground RockburstUS$ 5.20 - 5.80MOQ: 100 Meters -
Flexible Slope Rockfall Netting Active Protection System Rockfall Steel Wire Mesh High-tensile Rockfall NettingUS$ 0.45MOQ: 100 Square Meters
-
3.0mm High-tensile Steel Wire Mesh Rockfall Netting for Slope Protection SystemUS$ 84.00 - 94.00MOQ: 1 Roll
-
Wholesale 80/3 Mesh Chain Link Barrier Active Rockfall Protection System for Mining Woven Technique Bending Processing ServiceUS$ 2.9 - 8.8MOQ: 1 Square Meter
-
Cheap Price Rockfall Netting High Tensile Steel Wire 80/4 Reinforcement Net for Mining/Tunnels SolutionsUS$ 2.9 - 8.8MOQ: 1 Square Meter
Technique
Woven
Model Number
65/3
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Plain Weave
Product name
Slope Protection Wire Mesh
Wire diameter
3.0mm
Tensile strength
≥ 1770 N/mm²
Mesh shape
Rhomboid
Mesh width
inscribed circle diameter of mesh 65 mm
Tensile strength of mesh
150 kN/m
Compound
95%Zn-5%Al alloy coating
Coating
150g /m²
Mesh edges
Mesh ends Knotted
Product Description
High-tensile mesh with chain-link structure for underground applications in rockburst conditions – quick & easy to install.
Tests conducted by the Western Australian School of Mines (WASM) have shown that high-tensile steel wire mesh with a wire tensile strength of at least 1,770 N/mm2 is able to withstand substantially higher static and dynamic loads than conventional reinforcement nets. This also enables higher levels of rockburst energy to be absorbed.
Technical Data Sheet
CE European Technical Approval ETA-17/0115
Technical data | 80/3 |
Wire diameter | 3mm |
Steel quality | high-tensile steel wire |
Tensile resistance of a wire | 12.5kN |
Mesh shape | Rhomboid |
Tensile strength of steel wire | ＞1770 N/mm² |
Tensile strength steel wire mesh | min.150kN/m |
Diagonal | 102×177mm（+/-3%） |
Mesh width | 80mm（+/-3%） |
Compound protection | Zn/AI coating of steel wires |
Compound of corrosion protection | 95% Zn / 5% AI |
Coating | min.150g/㎡ |
Roll with | 2.3m，2.5m，3m，3.5m，4m，customized |
Roll length （as per site requirement） | 10m，20m，30m，customized |
Mesh edges | Mesh ebds knotted（customized） |
Longen is a high-quality manufacturer of high-strength structural steel wire mesh. We have taken strict quality control measures in the production process, and the tensile strength can reach 1770MPa or above. Our products comply with the CE European technical approval ETA-17/0118, which can meet your needs. The product performance meets or exceeds your expectations. The durability of the product can effectively protect against slope instability and falling rocks, and it has high reliability.
Packing & Delivery
Details Images

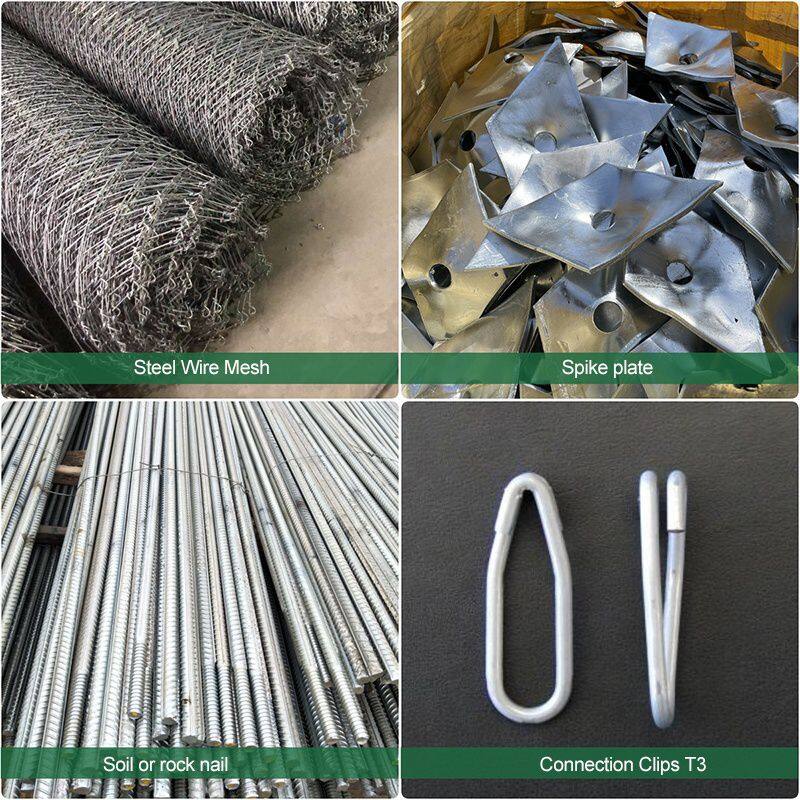

Main Components

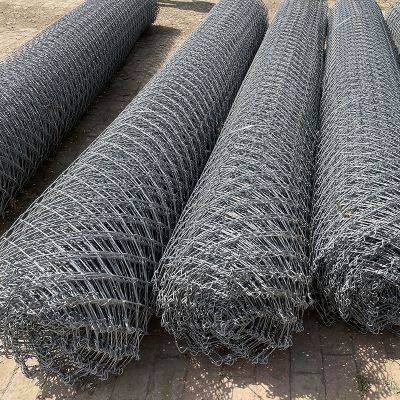

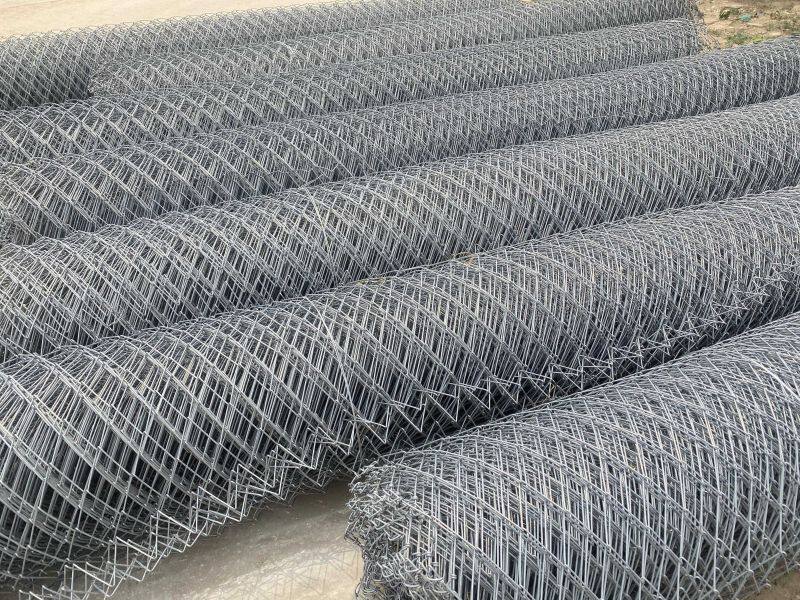

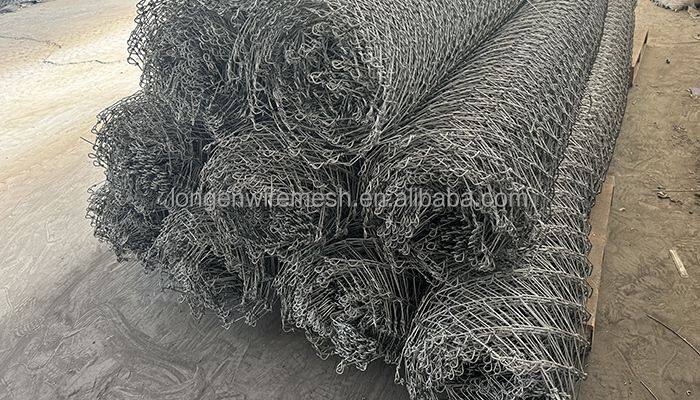

high-tensile steel wire mesh
Is made of the high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.
Soil or Rock Nails
steel wire mesh can be anchored in accordance with plan with commercial soil or rock nails. Anchor consists of commercially
available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).
available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).

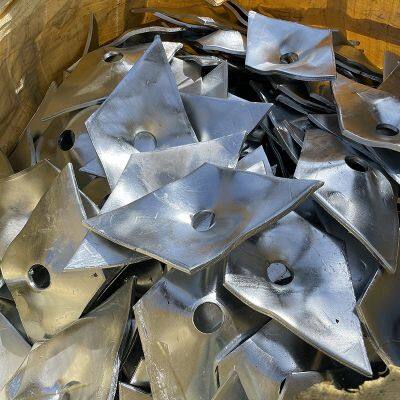

Spike Plates
Rigid spike plates reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the Steel Wire Mesmesh.These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.
The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm), 13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.
Connection Clips T3
The high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces. These clips are hot-dip galvanized and consist of 0.16" (4mm) or 0.25"(6mm) thick steel spirals.
Product Application
high-tensile steel wire mesh Function
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
• Surface Support
Characteristics of the high-tensile steel wire mesh
●High-tensile steel wire (>256 KSI)
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
