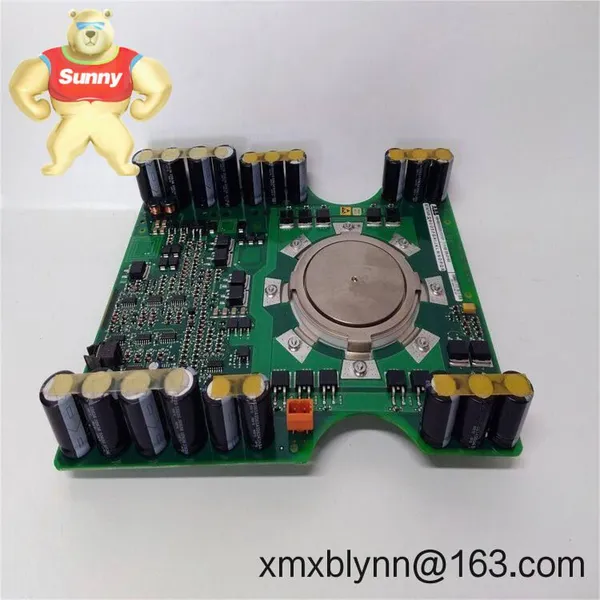

Help CenterABB 5SHX26L4520 IGCT Gate Unit – Reliable Drive Module for High-power IGCT Stacks
Related Products
-
ABB IGCT Gate Unit 5SHY3545L0002 (CVC750BE101) – Reliable Driver Module for Medium-voltage Converter StacksUS$ 7360.00MOQ: 1 Combo -
ABB 5SHX19L6020 IGCT Gate Unit – Robust, Fiber‑optic Driver for High‑power ConvertersUS$ 3360.00MOQ: 1 Combo
-
ABB 5SHY35L4510 IGCT Press-Pack – Built for Dependable Switching in Medium-voltage Power ConvertersUS$ 3360.00MOQ: 1 Combo
-
ABB 5SXE07-0164 (GVC714A101) IGCT Gate Unit – High‑reliability Drive and Protection for IGCT Power StacksUS$ 3360.00MOQ: 1 Combo
-
ABB 5SHY35L4511 IGCT Module – Press-pack Power Thyristor for Medium-voltage Drives and Grid ConvertersUS$ 3360.00MOQ: 1 Combo
Warranty: 365 days
Delivery: 1 week for in-stock; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
Direct-mount IGCT gate unit – Attaches to the press-pack IGCT body for minimal loop inductance and consistent switching behavior.
Fiber-optic command interface – Optical Rx/Tx links reduce noise susceptibility and simplify isolation in high dV/dt cabinets.
24 VDC low-voltage supply – Typically powered from a standard 24 VDC control bus, easing integration with existing cabinets.
Integrated protection and status – Provides gate monitoring and status feedback so faults are caught early, often before a shutdown cascades.
Optimized for ABB 4.5 kV-class IGCTs – Typically paired with ABB 5SHY 35L45xx devices used in MV drives, STATCOM/SVC, and traction converters.
Ruggedized for industrial environments – Designed for temperature extremes and electrical noise found in real-world substations and rolling stock.
| Brand / Model | ABB 5SHX26L4520 (IGCT Gate Unit) |
| HS Code | 8543.70 (Electrical apparatus with individual functions, NESOI) – commonly used for gate driver modules |
| Power Requirements | 24 VDC nominal (typ. 18–36 VDC), low ripple supply recommended |
| Operating Temperature | -40 to +85 °C (typical for ABB industrial gate units) |
| Signal I/O Types | Fiber-optic Rx (ON/OFF command), fiber-optic Tx (status/feedback); 24 VDC supply and status contact (where provided) |
| Communication Interfaces | Optical link (Tx/Rx) per ABB IGCT gate-unit standard; electrical low-voltage connector for supply/monitoring |
| Installation Method | Direct mounting onto the matching IGCT press-pack; screw fastening with spring-loaded gate contact; observe fiber bend radius |
| Dimensions & Weight | Ring-type gate unit for 4.5 kV-class IGCTs; low-profile design (typ. 30–40 mm height), weight ~0.6–0.8 kg (typical) |
| Compatible Devices | Typically used with ABB 5SHY 35L45xx IGCTs (4.5 kV class); verify pairing per ABB datasheet |
Values above are typical for ABB IGCT gate units in this series; for critical design limits, confirm with the 5SHX26L4520 datasheet and your specific IGCT part number.
You’ll typically see the 5SHX26L4520 in medium-voltage and high-power conversion where efficiency and protection margins matter:
Medium-voltage drives for compressors, pumps, and rolling mills
Traction propulsion and regenerative braking systems
FACTS equipment such as STATCOM/SVC
HVDC valve submodules and large wind turbine converters
Industrial UPS and pulse-power supplies with IGCT stacks
High reliability – One thing I appreciate is how ABB gate units maintain consistent gate current delivery over time, which seems to reduce nuisance trips in high-cycling applications.
System compatibility – Fiber-optic control integrates cleanly with existing firing units; swapping a unit is typically plug-and-play if you keep the same pairing.
Lower downtime risk – Proper gate protection and status feedback help maintenance teams isolate a fault quickly, often without opening the whole stack.
Total cost perspective – Using the matched ABB GU with ABB IGCTs usually means fewer tuning iterations and less risk during commissioning.
Support for legacy fleets – In many cases, this module keeps older MV drives and traction inverters serviceable without redesigning the control interface.
Cabinet environment – Mount in a clean, ventilated enclosure. Keep ambient within the stated temperature range and avoid condensation.
Mechanical fit – Install directly on the IGCT press-pack per ABB torque and contact guidelines; ensure the spring-loaded gate contact seats cleanly.
Power & wiring – Use a stable 24 VDC supply with appropriate filtering. Maintain the fiber minimum bend radius and clean fiber ends before insertion.
Safety – De-energize, discharge DC link, and follow HV lockout/tagout procedures. Observe ESD precautions when handling the unit.
Routine checks – Periodically inspect connectors, fiber links, and mounting screws. Clean dust with dry air. Where firmware/config jumpers apply, document versions/settings.
Spare strategy – From my experience, keeping one matched spare gate unit per converter leg reduces outage time significantly.
Manufactured under ABB quality systems (ISO 9001)
RoHS compliant components (typical for ABB industrial modules)
CE considerations apply at the equipment level; this is a component intended for integration by qualified personnel
Manufacturer’s warranty: 12 months (365 days)
ABB IGCTs in the 4.5 kV class (e.g., 5SHY 35L45xx series) – typical pairing with this gate unit
Fiber-optic firing units and transmitters compatible with ABB GU Rx/Tx links
24 VDC industrial power supplies with low ripple and surge protection
If you’re matching the 5SHX26L4520 to a specific IGCT part number or converter design, share the IGCT P/N and firing topology. We’ll verify electrical pairing, fiber polarity, and mechanical fit before shipment, which typically saves a round of commissioning time.
