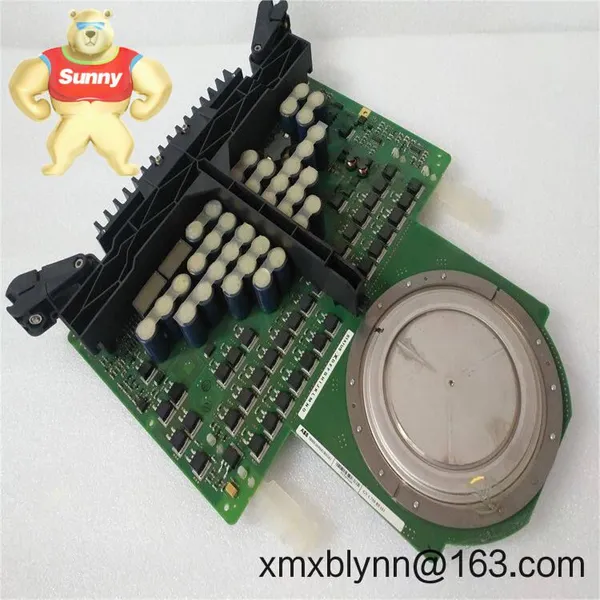

Help CenterABB IGCT Gate Unit 5SHY3545L0002 (CVC750BE101) – Reliable Driver Module for Medium-voltage Converter Stacks
Related Products
-
ABB 5SHX19L6020 IGCT Gate Unit – Robust, Fiber‑optic Driver for High‑power ConvertersUS$ 3360.00MOQ: 1 Combo -
ABB 5SHY35L4510 IGCT Press-Pack – Built for Dependable Switching in Medium-voltage Power ConvertersUS$ 3360.00MOQ: 1 Combo
-
ABB 5SXE07-0164 (GVC714A101) IGCT Gate Unit – High‑reliability Drive and Protection for IGCT Power StacksUS$ 3360.00MOQ: 1 Combo
-
ABB 5SHY35L4511 IGCT Module – Press-pack Power Thyristor for Medium-voltage Drives and Grid ConvertersUS$ 3360.00MOQ: 1 Combo
-
ABB 5SHY45L4520 IGCT Module – Reliable High-power Switching for Medium-voltage ConvertersUS$ 3360.00MOQ: 1 Combo
Warranty: 365 days
Lead time: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Packing & verification: Anti‑static packaging and power‑on functional check prior to dispatch
Dedicated IGCT drive logic – Provides the high‑current, fast edge drive required for ABB IGCT turn‑on/turn‑off behavior.
Fiber‑optic firing interface – Typically uses FO links for firing commands and status, improving noise immunity in MV cabinets.
Integrated protection functions – From desaturation/over‑current reaction to gate under‑voltage, helping protect the IGCT stack.
Service‑friendly replacement – Drop‑in assembly on the IGCT stack with repeatable connectors to cut changeover time.
Industrial power range – Designed for the thermal and electrical stress found in MV drives and FACTS equipment.
Traceable code pairing – The CVC750BE101 reference assists with matching revisions across multi‑module stacks.
| Brand / Model | ABB 5SHY3545L0002 (also marked CVC750BE101) |
| HS Code | 8537.10 (Boards/panels for electric control; typical classification for gate units) |
| Power Requirements | 24 VDC nominal supply (typical), operating current depends on switching duty and stack configuration |
| Dimensions & Weight | Gate‑unit card form factor for IGCT stacks; compact, serviceable design; refer to ABB drawing for exact size |
| Operating Temperature | Typically 0 °C to +70 °C in ventilated cabinets (consult specific datasheet for limits) |
| Signal Input/Output Types | Fiber‑optic firing command; status/diagnostic outputs; local test points for service (varies by revision) |
| Communication Interfaces | FO link to the drive control; discrete harness connections for power and interlocks |
| Installation Method | Direct mounting on IGCT stack with standoffs/screws; fiber and low‑voltage harness connectors |
Note: Specific ratings and connector pinouts can vary between revisions. Matching by both 5SHY3545L0002 and CVC750BE101 is recommended when replacing a single module in a multi‑stack system.
Medium‑voltage motor drives (e.g., pump, compressor, and fan duty in oil & gas, mining, cement)
Static VAR compensators (SVC) and STATCOM equipment in substations
Wind turbine converters and marine propulsion systems using IGCT stacks
Traction and heavy industrial power converters where fiber‑optic firing is standard
Reduced downtime: Form/fit/function replacement typically means faster return to service during outages.
Compatibility confidence: Matching code “CVC750BE101” helps align with the exact hardware generation in your cabinet.
Reliability under MV noise: Fiber‑optic triggering and robust protection reduce nuisance trips in electrically harsh rooms.
Lifecycle support: We assist with cross‑check against installed BOMs and can recommend companion parts (fiber leads, harnesses).
Environment: Mount inside a sealed or filtered MV drive cabinet with adequate ventilation; avoid condensation and dust accumulation.
Wiring: Supply stable 24 VDC; route FO links and low‑voltage harness away from busbars; verify connector keys before power‑on.
Safety: Observe ESD precautions; lockout/tagout HV sections; discharge DC link capacitors before handling the stack.
Commissioning checks: Confirm fiber polarity (TX/RX), interlock continuity, and monitor gate‑unit status LEDs if available.
Routine care: Quarterly cleaning with dry air at low pressure; inspect FO terminations and standoffs; review event logs if your drive supports them.
Spares strategy: In many cases, plants keep at least one matched gate unit per converter leg to minimize MTTR.
CE conformity for industrial environments (per ABB product family)
RoHS compliant materials, lead‑free assembly
Manufactured under ISO 9001 quality management systems
Manufacturer’s standard warranty practices apply; our supply carries a 365‑day warranty
“We swapped the 5SHY3545L0002 during a planned stop; fiber alignment and 24 V checks took longer than the physical change. The drive synced back without re‑tuning.” That’s typical feedback—most of the time the mechanical fit is straightforward, and the attention goes into harness routing and interlocks.
