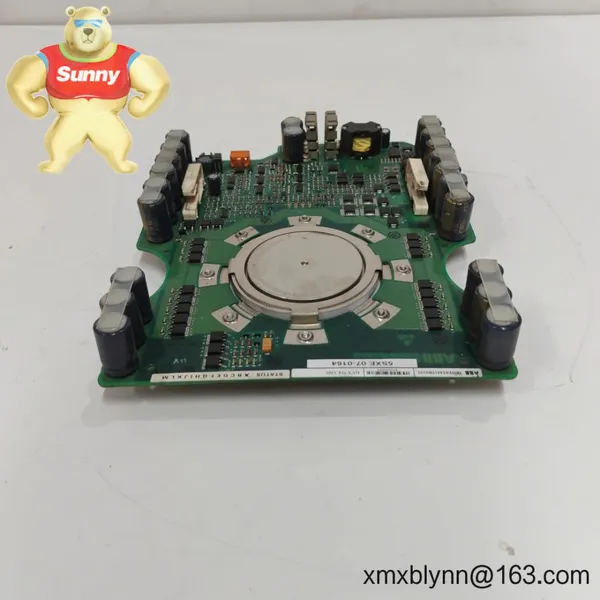

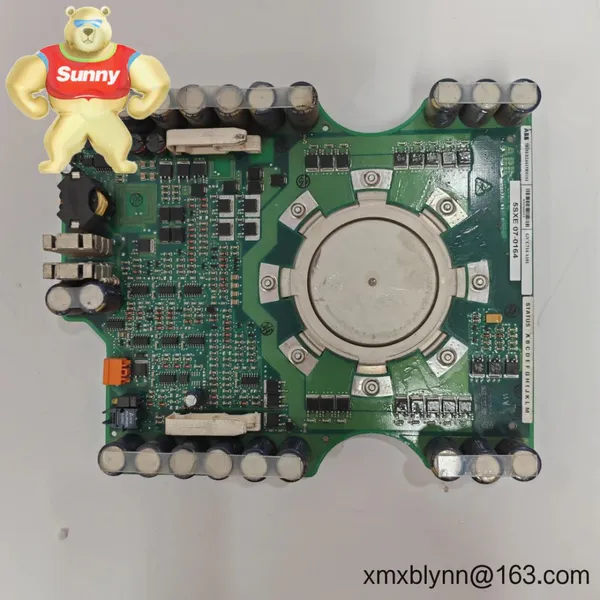

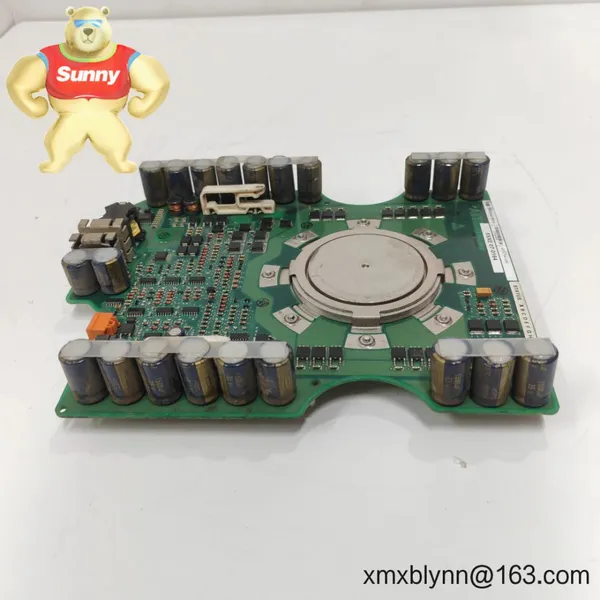

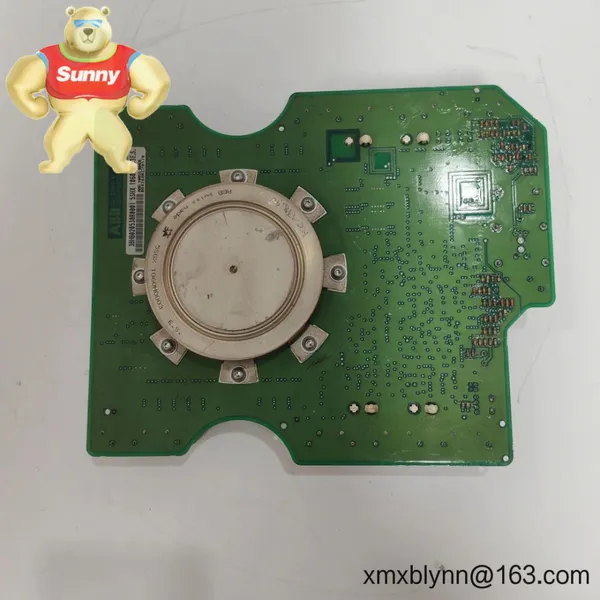

Help CenterABB 5SXE07-0164 (GVC714A101) IGCT Gate Unit – High‑reliability Drive and Protection for IGCT Power Stacks
Related Products
-
ABB 5SHY35L4511 IGCT Module – Press-pack Power Thyristor for Medium-voltage Drives and Grid ConvertersUS$ 3360.00MOQ: 1 Combo -
ABB 5SHY45L4520 IGCT Module – Reliable High-power Switching for Medium-voltage ConvertersUS$ 3360.00MOQ: 1 Combo
-
ABB IMDS003 Digital Output Slave Module – Reliable DO Control for ABB DCS InstallationsUS$ 1360.00MOQ: 1 Combo
-
ABB IOR810 (P-HB-IOR-80010000) – S800 I/O Gateway Module for HN800US$ 1360.00MOQ: 1 Combo
-
ABB KUC755AE117 Control Board – Reliable Replacement for ACS/Drive System ControlUS$ 12360.00MOQ: 1 Combo
Warranty: 365 days
Delivery: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment; full balance before delivery
Express: FedEx, UPS, DHL
Dedicated IGCT drive capability – Provides the high peak gate current and controlled turn-off needed for ABB IGCTs, helping minimize switching losses and stress.
Integrated protection – Desaturation/overcurrent detection and fast fault signaling to protect the semiconductor in abnormal conditions.
Fiber‑optic signaling – Noise-immune trigger and feedback channels, typically used in medium-voltage environments with high EMI.
24 VDC supply – Industrial-friendly power input simplifies cabinet integration and service.
Status indication and alarms – Local LEDs plus a dry-contact output (typically) for system PLCs, so operators see issues early.
Conformal-coated PCB – In many cases delivered with protective coating for improved reliability in dusty or humid environments.
Form-fit replacement – Suited for ABB IGCT-based converters and drives, reducing engineering time during maintenance or upgrades.
| Brand / Model | ABB 5SXE07-0164 (GVC714A101) |
| Product Type | IGCT Gate Unit (Gate Driver) |
| HS Code | 850490 (Parts of static converters) – typical classification; confirm with local customs |
| Power Requirements | 24 VDC nominal (commonly 18–30 VDC), ripple within industrial limits |
| Operating Temperature | Typically −25 °C to +70 °C (cabinet-mounted) |
| Signal Input/Output Types | Fiber‑optic trigger/feedback; status LEDs; dry‑contact fault/alarm (typical) |
| Communication Interfaces | Fiber‑optic channels to controller; service/test headers as applicable |
| Installation Method | Direct mount to IGCT housing or stack plate; cabinet integration with secured fiber and 24 VDC feed |
| Dimensions & Weight | Compact PCB assembly; low-profile, typically |
| Compatibility | For ABB IGCT stacks (5SHY/5SNA families in the matching current class); check code pairing for your converter |
This gate unit is typically used in high-power and medium-voltage systems where IGCTs are preferred for efficiency and robustness:
Medium-Voltage Variable Speed Drives for oil & gas, mining, cement, and water
Static VAR Compensators (SVC) and STATCOM systems
Marine propulsion and large test benches
Wind turbine converters and heavy-duty rectifier/inverter bridges
Traction and DC traction substations (where IGCT stacks are deployed)
Reliability under stress – Stable triggering and protection help extend IGCT life and reduce unplanned downtime.
Compatibility – Works within ABB IGCT ecosystems, so control wiring, fibers, and mechanics usually align with existing stacks.
Cost control – Drop-in replacement minimizes retrofit engineering and field labor.
Serviceability – Fiber diagnostics and clear LED indications speed troubleshooting during outages.
Supply assurance – We quote realistic lead times and back them up with tested units before shipment.
A maintenance engineer from a cement plant told us this gate unit “made a tough stop easy”—swap, fiber check, a quick health test, and the MV drive was back in service before the next shift.
Installation & MaintenanceCabinet and mounting – Install in a clean, ventilated cabinet; follow IGCT stack mounting points to maintain creepage/clearance and cooling paths.
Power and wiring – Use a regulated 24 VDC feed with proper grounding. Observe fiber polarity (Tx/Rx) and minimum bend radius.
Safety – De‑energize the power stack, discharge DC link, and apply ESD precautions. Confirm interlocks before commissioning.
Commissioning checks – Verify gate signals via fiber test, monitor status LEDs, and confirm fault relay behavior with the PLC.
Routine maintenance – Quarterly visual inspection, connector re‑seat if needed, dust removal with dry air, and verification of fiber cleanliness/coupling. Firmware updates are rarely required; if applicable to your variant, follow ABB service notes.
Manufactured within ISO 9001 quality systems
CE and RoHS compliance typical for ABB industrial electronics
Components and PCB materials selected for industrial temperature ranges
Warranty: 12 months (365 days) from delivery
ABB IGCT devices (e.g., 5SHY/5SNA series matched to your current/voltage class)
Fiber‑optic transmitter/receiver cables rated for MV environments
24 VDC industrial power supply with filtered output
Snubber networks and current sensors specified for your converter topology
One thing I appreciate is how predictable this unit behaves during fault events—trip signaling is clean, and recovery steps are consistent, which saves real time in the field. If you share your stack code or converter type, we can confirm the exact pairing and ship the correct GVC714A101 variant promptly.
