Machine Vibration Analysis Trainer
To gain an in-depth understanding of different vibration signatures, controlled experiments on a device that emulates real world machinery are needed. While analysis of a single machinery fault may be beneficial, there are many occasions when the analysis of the interaction between dynamic stiffness, resonance, and speed is essential in order to gain an understanding of real world vibration spectra.
Simple methods for introducing controlled and calibrated faults.
Study the vibration spectra of common faults, learn fault signatures and validate rules provided in training courses.
Bench top machine for hands-on training and skill sharpening.
Learn machine condition monitoring and predictive maintenance.
Manual with exercises for individually paced study.
Learn resonance and variable speed diagnostics.
Learn to determine vibration transmission path and perform root-cause analysis.
Validate balancing procedures above and below the first critical resonance.

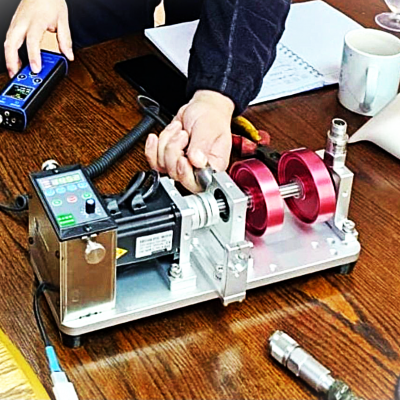

The PT300mini micro-vibration fault simulation demonstration bench is modularly designed and can be quickly adjusted to a simply supported rotor or cantilever rotor, single disc or double disc structure. Supports vibration acceleration sensor, photoelectric phase sensor, eddy current probe (shaft vibration and key phase) testing, with corresponding standard mounting screw holes and brackets. The test bench can simulate common machine failures such as: static, couple, dynamic unbalance and cantilever rotor unbalance, misalignment, loosening, bearing failure (outer ring, inner ring, rolling elements, wear loosening), eccentricity, resonance and other actual machine vibration problems. It can perform various dynamic balance tests such as single-sided, double-sided, and cantilever, as well as knocking, start-stop tests, etc.
Send Inquiry to This Supplier
You May Also Like
-
SAT500 Shaft Alignment Trainer Portable Vibration SimulatorUS$ 2980MOQ: 1 Combo
-
PT100 Bearing Fault Simulator-alenian Machinery Fault SimulatorUS$ 2980MOQ: 1 Combo
-
PT300 Machinery Fault Simulator–LiteUS$ 3980MOQ: 1 Combo
-
PT300PRO Machine Vibration SimulatorUS$ 2980MOQ: 1 Combo
-

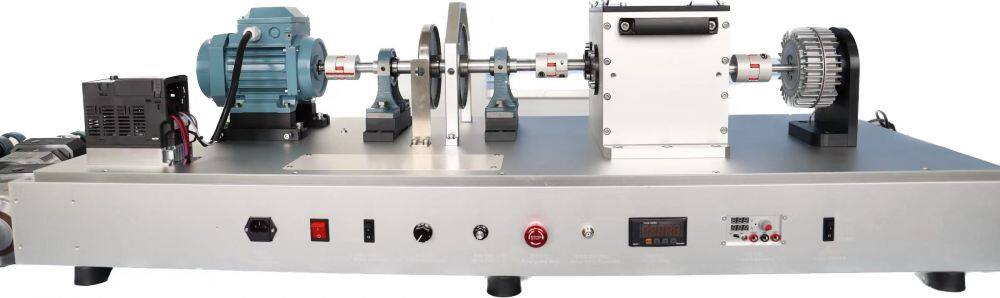

PT500mini Machinery Fault SimulatorUS$ 3799MOQ: 1 Combo
-
