Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine

Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine thumbnail-1
Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine thumbnail-2
Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine thumbnail-3
Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine thumbnail-4
Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine thumbnail-5

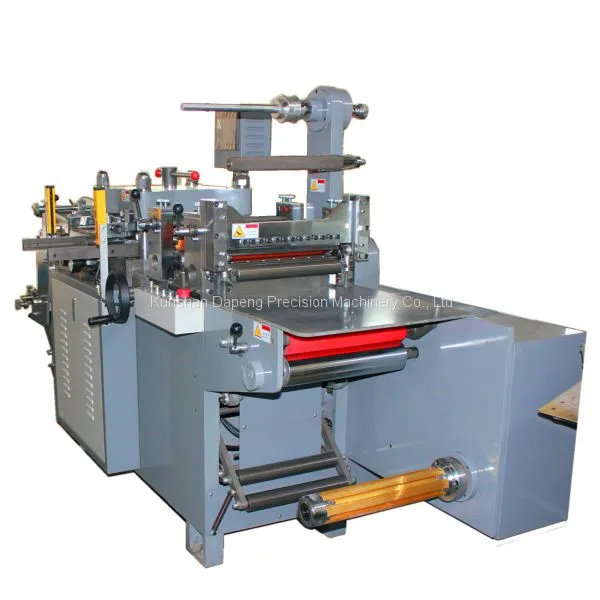

Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine photo-1

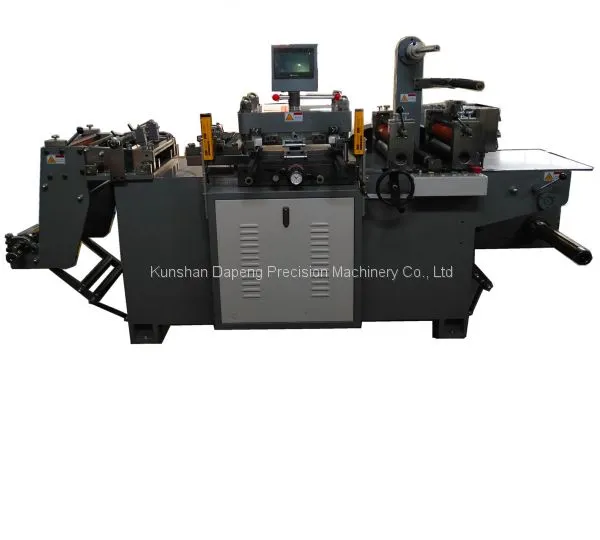

Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine photo-2

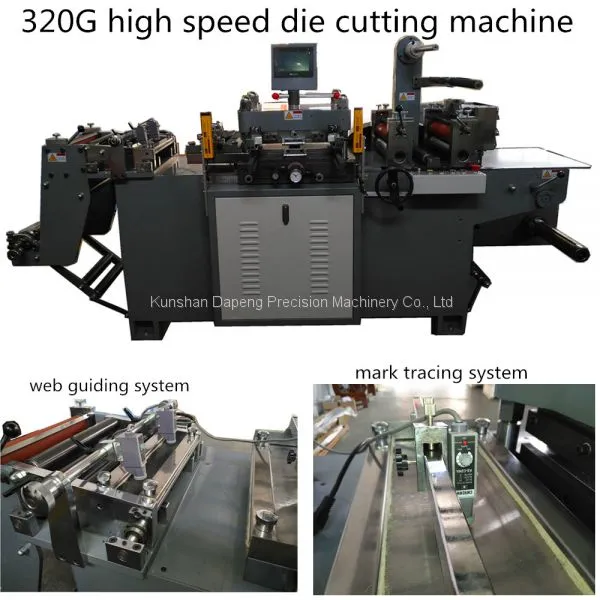

Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine photo-3
Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine photo-4

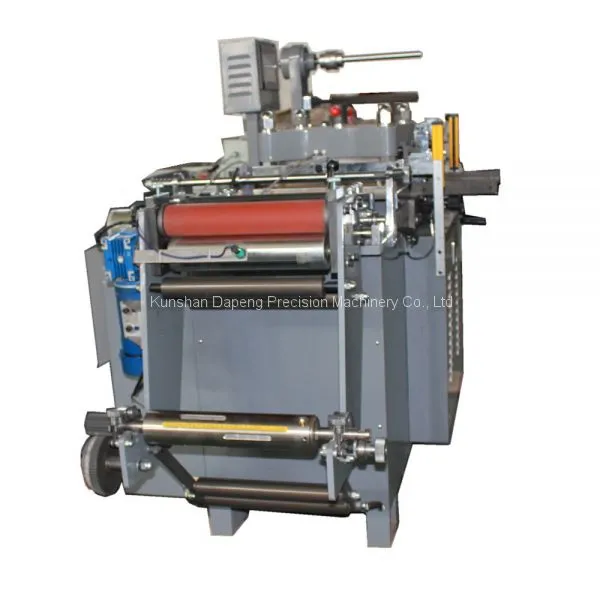

Tablets Mobile Phone Optical Adhesive OCA Die Cutting Machine photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
DP
Place of Origin:
China
Model Number:
DP-320G
Contact Supplier Request Quote Chat Now
Kunshan Dapeng Precision Machinery Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DP
Place of Origin China
Model Number DP-320G
Type Other, automatic die cutting machine
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Voltage 380
Application sticker die cutting machine
Rated Power 2200
Condition New
Power(W) 2200
Dimensions 2700*1050*1400mm
Max. Cutting Depth 10mm
Saw Blade Diameter adjustable
No-Load Rotational Speed adjustable

First , Machine main technical data

A. max die cutting speed                       300 cuts/minute

B. die cutting area                            320*300mm（width * length ）

C. unwind roll max diameter                    500mm

D. max paper roll diameter                     320 mm

E. left to right position precision :          ±0.50mm

F.  Step Accuracy  ：                             ±0.10mm

G. Total power ：                               about 6.0kw

H. Power Voltage：                             1P  220V   50HZ

I. Machine Net weight                          about 1650kg

J. machine size（length *width * height ）： 2700*1050*1400mm（ Removable 1600*1050*1400mm）

K.   shipping term : FOB Shanghai

L. Lead Time : 20 days of production time after received deposit

Second , machine configuration

1 , unwinding part

A. Aluminum guiding roller                        B. unwinding air-shaft

C. unwind pulling material roller + steel roller    D. unwind pulling material motor300W

E. unwind damping device                          F. Electric Eye ( paperless automatic stop)



2, laminating part ( optional function )

1. filming device ( unwinding function )

A. Filming unwinding roller

2. filming device ( unwind rewind function )

A.  filming unwinding roller                     B. filming rewinding roller

C. filming rewinding motor                       D. Aluminum guiding roller



3.       Rectification system

A.Aluminum guiding roller                       B. rectification motor 70W

C. Rectification electric eye



4.       printed mark tracing part

A. Paper platform                 B. Electric eye holder

C. Color tracking electric eye





5.       punching hole part ( optional part )

1.Mechanical type punching hole

A.  punching hole mold            B. Connection block (connect with up die cutting plate)

2. Pneumatic punching hole

A. punching hole mold             B. Pneumatic cylinder



6.       die cutting part

A.Die cutting seat assembly (can move left and right – paper unwind direction)

B. Main motor 2.2KW

C.automatic supply oiling system ( copper tube connect wire, semi sealing type , Lubricating oil recycling  )

D.Buffer spring

E. Down cutting plate seat height adjustment ( 2 Inclined plate)

F. Up cutting plate seat Obliquely turn up system ( more easy to change the cutting dies)



7.       Pulling material part

A.pulling material roller+ steel roller

B.pulling material servo motor  2.2kw(Zhejiang Dongling)

C.Timing belt



8.       Waste scrap part

A.  guiding roller                      B.  waste scrap rewind roller

C. Buffer Disposal Device - Optional function

（For some thick adhesive material difficult to scrap material ）



9. sheeting blade part

A.Aluminum guiding roller                B. Cutter clutch assembly

C. up cutting blade (inserting steel)    D. down cutting blade (inserting steel）



10.  Rewinding part

A.  Aluminum guiding roller              B. rewinding cushioning device

C. Rewinding pulling material rubber roller+ steel roller

D. rewinding motor 800W ( when sheeting can stop)



11.   Hot foil stamping part ( optional part )

1. Stepper motor stamping device  ADD USD1400 if add this type

A. Hot stamping unwind roller

B. Aluminum guiding roller

C. hot stamping pulling material roller

D. hot stamping pulling material motor ( stepper motor )



2. Servo motor hot stamping device ADD USD1800 if add this type

A. Hot stamping unwind roller

B. Aluminum guiding roller

C. hot stamping pulling material roller

D. hot stamping pulling material motor ( servo motor 0.75KW Zhejiang Dongling)

12.   electric control part

A.PLC （Panasonic）

B.Touch screen ( Weinview TK6070IQ)

C. Servo motor driver (Zhejiang Dongling)

D. Frequency speed converter ( HUALAN)

E. Power switch  220-2-110（ Taiwan）



13.  metal sheet , safety cover etc

14.   others

A. Tools                  B. Operation manual



15.   Machine structure

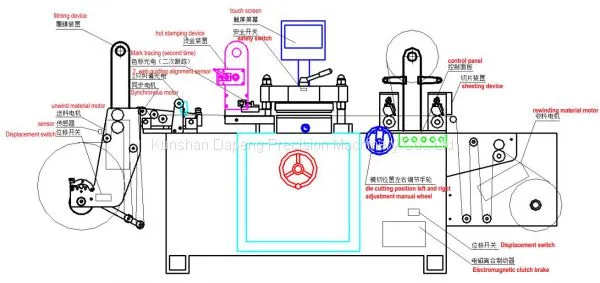

Machine picture


Product Tags: die cutting machine , automatic cutting machine , label die cutting machine
