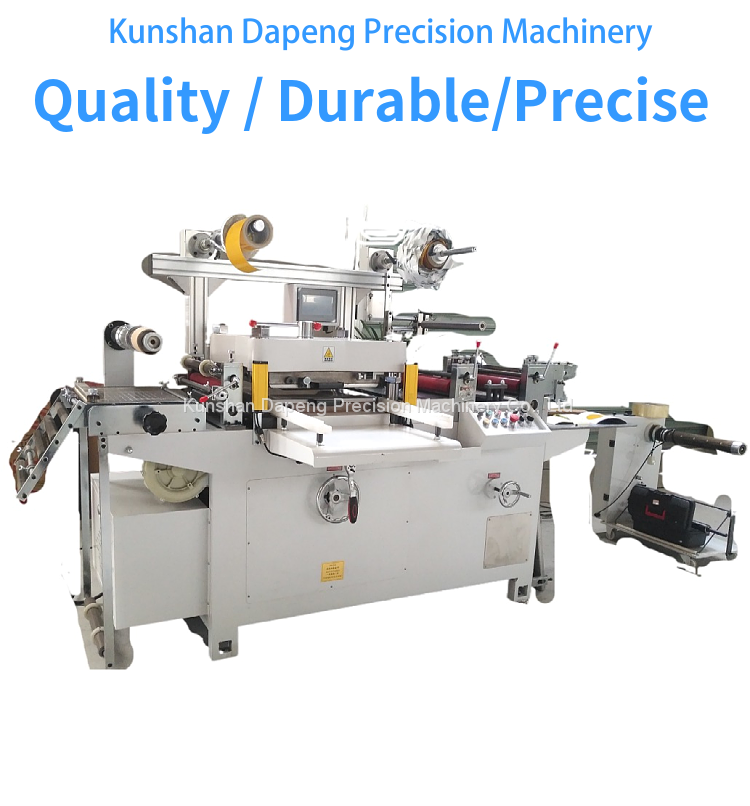

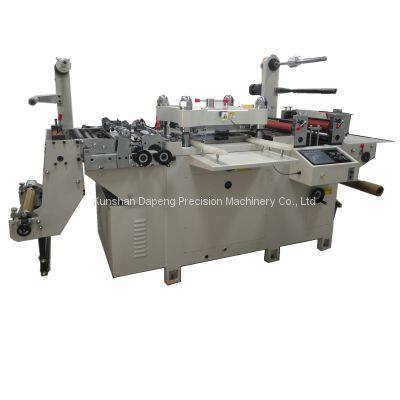

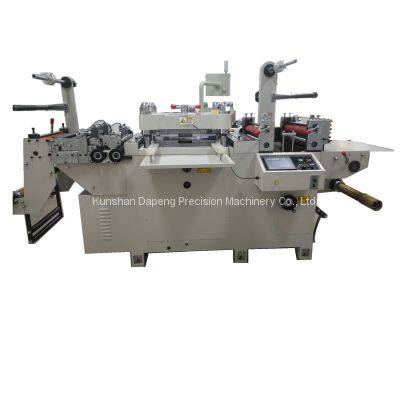

Flatbed die-cutting machine (DP-420B)
Strong structure, high speed, high efficiency, easy operation , running stably
Flatbed die-cutting machine (DP-420B)
Functional characteristics:

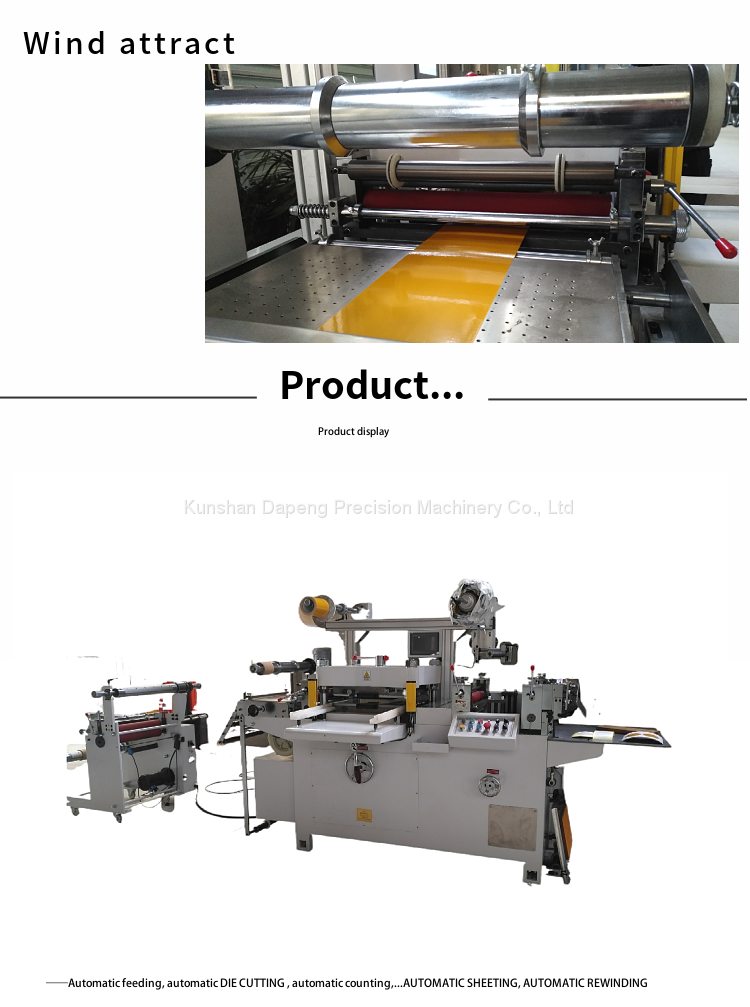

the machine enjoys multi-layer sticking partial sticking multi-strip tape sticking etc,the imported motor is used for the receiving bottom sheet of sticking film.feeding-filming(enjoying multi-layer sticking and partial sticking)-die-cutting-waste draining-slitting-rolling,all of them are completed by the computer control by one turn.
Uses: various insulating materials such as electronic shield materials,PVC,film ,Mylar,copper foil,
Aluminum foil and so on.

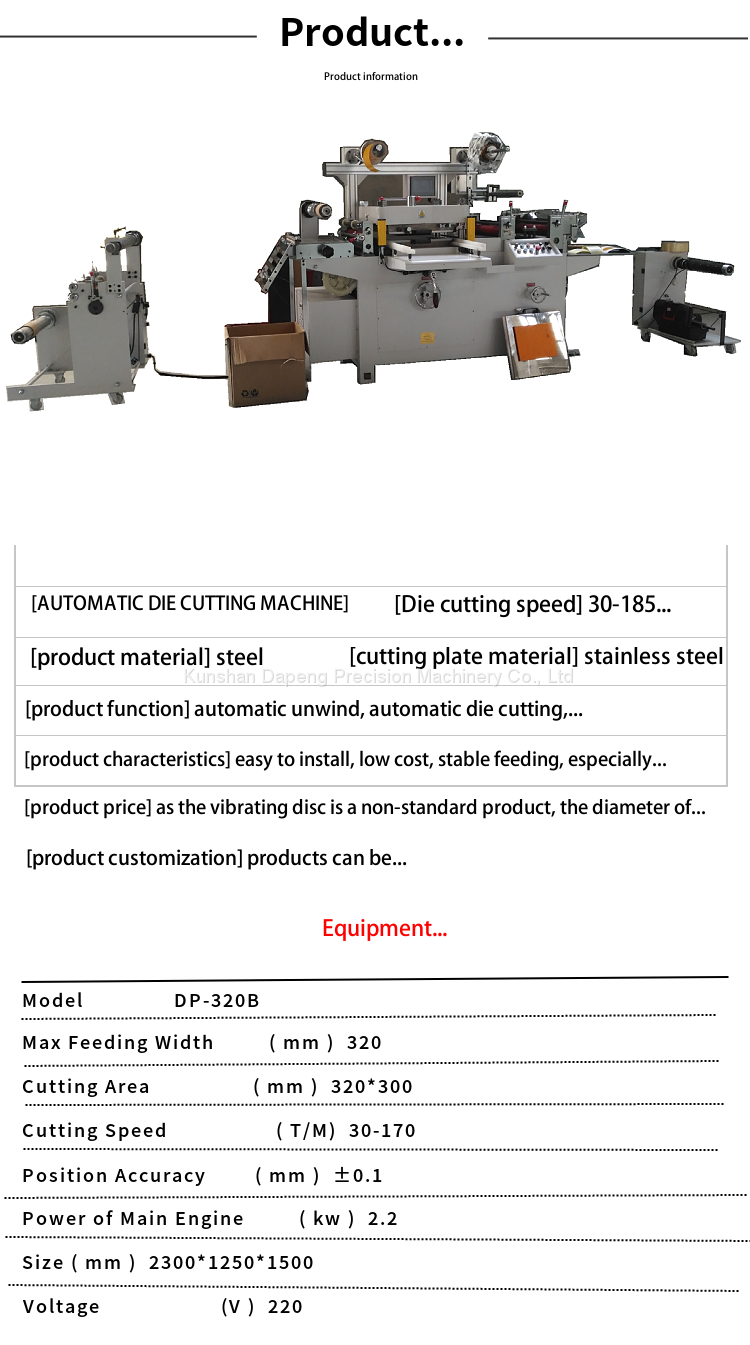

Main technical parameter:
Model |
DP-320B |
Cutting speed |
20-180t/min |
Max.unwinding diameter |
450mm |
Max webwidth |
320mm |
Max mould cutting width |
300mm |
Max mould cutting length |
300mm |
Orientation accuracy |
±0.10mm |
Power of motor |
3kw 220/380v |
Total power |
5.5kw |
Overall dimension(L*W*H) |
2250*1150*1500mm |
Machine weight |
1500kg |
