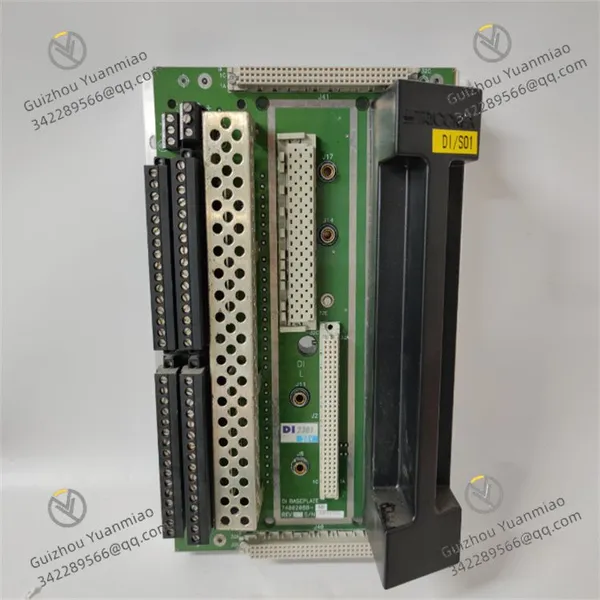

TRICONEX DI2301 7400208-020 Digital Input Baseplate

TRICONEX DI2301 7400208-020 Digital Input Baseplate photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -40℃~70℃

Relative Humidity 5% - 95% (non-condensing)

Storage Temperature -40℃~85℃

Dimensions 160mm×120mm×80mm

I. Product Overview

The TRICONEX DI2301 7400208-020 is a digital input module. As a core I/O component of the TRICONEX Triple Modular Redundancy (TMR) control system, its primary function is to accurately collect discrete digital signals from industrial sites (such as equipment status switches, limit contacts, alarm signals, safety interlock contacts, etc.) and transmit them to the TMR controller. It provides a true and reliable digital signal source for system logic judgment, equipment status monitoring, and safety interlock control, serving as a key data entry point connecting the on-site equipment layer and the control layer.

The DI2301 7400208-020 plays a particularly critical role in fields with extremely high requirements for system safety and availability, such as petrochemicals, oil and gas extraction, nuclear power plants, and rail transit. For example, in the Emergency Shutdown System (ESD) of a catalytic cracking unit in a large refinery, key safety signals like high-pressure limit switches, temperature over-limit contacts, and valve fully closed signals need to be collected in real time. The DI2301 7400208-020 can stably collect these signals in harsh environments with high temperatures, high oil-gas concentrations, and strong electromagnetic interference, ensuring the ESD system promptly determines whether the equipment is within a safe range and preventing safety accidents such as explosions and leaks caused by signal collection errors. In the reactor coolant system of a nuclear power plant, this module can collect signals such as pump operation status and gate limit signals. Its redundant design and anti-interference capability can effectively cope with signal fluctuations under extreme working conditions, ensuring the continuous and fault-free operation of nuclear facilities.

II. Core Features

(1) High Channel Density and Flexible Signal Adaptation

The DI2301 7400208-020 is equipped with 16 independent digital input channels. A single module can meet the centralized collection needs of multiple devices and multiple signal points, significantly reducing the number of modules in the control cabinet and the complexity of wiring. This module supports dual voltage level inputs of 24V DC/48V DC, with every 8 channels forming a group whose voltage type can be independently configured. It can adapt to the signal specifications of different on-site equipment without additional signal conversion modules. For instance, for proximity switch signals powered by 24V DC or travel switch signals driven by 48V DC, quick adaptation can be achieved through module hardware DIP switches or software configuration, reducing system integration costs and potential fault points.

In a robot workstation of an automotive welding workshop, signals from 12 fixture clamping status switches and 6 safety door interlock contacts in the workstation can be centrally collected by a single DI2301 7400208-020 module, without the need to split them into multiple modules. This not only simplifies wiring but also facilitates maintenance personnel to quickly locate signal links and reduce fault troubleshooting time.

(2) Triple Modular Redundant Design for Safety and Reliability

As a supporting module for the TRICONEX TMR system, the DI2301 7400208-020 adopts a triple modular redundant design for signal collection and transmission, consistent with the system architecture. Each input signal undergoes triple modular processing through independent signal conditioning circuits, photoelectric isolation circuits, and collection channels. The redundant logic inside the module performs consistency verification and deviation judgment on the three sets of collected data. If a single channel fails (e.g., photoelectric isolation chip damage, signal drift), the system can automatically shield the abnormal data and make judgments based on the other two sets of normal signals, ensuring uninterrupted and error-free signal collection with a data reliability of 99.999%.

In the control system of a pressure station for long-distance natural gas pipelines, the pipeline high-pressure limit switch signals and emergency shut-off valve fully open signals are collected in a triple modular manner by the DI2301 7400208-020. Even if a single channel of the module generates a false alarm due to electromagnetic interference, the redundant logic can quickly identify and eliminate the anomaly, preventing the control system from mistakenly triggering an emergency shutdown and ensuring the continuity and safety of pipeline transportation.

(3) Enhanced Anti-Interference and Electrical Isolation

Targeting the complex electromagnetic environment of industrial sites, the DI2301 7400208-020 adopts a channel-level photoelectric isolation (isolation voltage ≥ 2500Vrms) and all-metal shielded housing design. Each input channel is completely isolated from the module's internal power supply and control circuits, which can effectively suppress ground loop interference and common-mode interference (with a rejection ratio ≥ 70dB). The shielding effectiveness of the metal housing is ≥ 40dB, which can resist radiated interference generated by equipment such as frequency converters, high-voltage motors, and welding machines. This ensures that the signal collection error rate is ≤ 0.01% in strong electromagnetic environments like steel plants and non-ferrous metal smelters, far lower than the 0.1% error threshold of traditional digital input modules.

For example, in the continuous caster control system of a large steel plant, the strong electromagnetic radiation generated by the operation of the continuous caster motor is likely to interfere with surrounding signals. However, the DI2301 7400208-020 can stably collect mold level switch signals and roller table limit signals, with the number of signal misjudgments ≤ 1 during 24 hours of continuous operation. This ensures the continuous and stable operation of the continuous casting process and avoids slab scrapping caused by signal interference.

(4) Real-Time Diagnosis and Fault Early Warning

The module integrates a full-channel online diagnosis function, which can real-time monitor the signal status of each input channel (such as open circuit, short circuit, overvoltage, undervoltage) and the module's hardware status (such as power supply voltage, isolation circuit fault). It transmits the diagnosis results to the controller and upper computer via the TRICONEX system bus. When an open-circuit fault occurs in a channel (e.g., sensor cable breakage), the module can trigger a fault alarm within 10ms and clearly mark the fault channel number and fault type. If an abnormal power supply voltage of the module is detected, it can immediately report the power fault information to remind maintenance personnel to handle it promptly.

In the aseptic filling production line of the pharmaceutical industry, if a short circuit occurs in the channel for collecting the filling valve fully closed signal of the DI2301 7400208-020, the module can immediately report the fault. The control system then promptly pauses the filling process, avoiding unqualified pharmaceutical packaging caused by signal anomalies, reducing production losses, and shortening the Mean Time To Repair (MTTR) to less than 15 minutes.

III. Technical Specifications

(1) Electrical Parameters

Parameter Category	Specific Specifications
Number of Input Channels	16 independent digital inputs; every 8 channels form a group with configurable voltage level
Input Voltage Range	24V DC (18V~32V), 48V DC (36V~60V); switchable via hardware DIP switch/software
Input Current	4mA~8mA at 24V DC; 2mA~5mA at 48V DC
Electrical Isolation	Photoelectric isolation between channels and between channels and power supply; isolation voltage ≥ 2500Vrms (for 1 minute)
Anti-Interference Performance	Common-mode interference rejection ≥ 70dB (150Vpp, 50Hz~60Hz); Differential-mode interference rejection ≥ 50dB (20Vpp, 50Hz)
Response Time	≤ 1ms (from signal trigger to valid module output)

(2) Mechanical and Environmental Parameters

Overall Dimensions: 160mm×120mm×80mm (Length×Width×Height), compatible with TRICONEX standard TMR racks, 2U height installation
Weight: Approximately 0.8kg; lightweight design facilitates module insertion/extraction and cabinet layout
Operating Temperature Range: -40℃~+70℃, meeting the usage requirements of extremely cold areas (e.g., Northeast Oilfields) and high-temperature workshops (e.g., glass kilns)
Storage Temperature Range: -40℃~+85℃, adapting to long-distance transportation and storage environments
Protection Level: IP20 (front panel), suitable for installation in industrial control cabinets
Vibration Resistance: 5g acceleration (10Hz~2000Hz), complying with IEC 60068-2-6 standard

(3) Performance Parameters

Diagnostic Coverage: ≥ 99.9% (channel-level faults + module hardware faults)
MTBF (Mean Time Between Failures): ≥ 1,200,000 hours (complying with MIL-HDBK-217 standard, at 25℃)
Signal Filtering Time: Configurable 1ms~100ms (anti-shake filtering to avoid misjudgment caused by transient interference)
Communication Interface: Compatible with TRICONEX TMR system bus; data transmission rate ≥ 100Mbps

IV. Functions and Working Principles

(1) Digital Signal Collection Process

Signal Access and Isolation: Digital signals from industrial sites (such as switch contact on-off signals) are connected to the corresponding channels of the DI2301 7400208-020 via shielded cables. Each signal first passes through a photoelectric isolation circuit to achieve electrical isolation from the module's internal power supply and control circuits, preventing external interference (e.g., ground loops, surges) from entering the module's core circuits and ensuring the safety and stability of the collection circuit.
Signal Conditioning and Filtering: The isolated signal enters the channel-level conditioning circuit. A current-limiting resistor is used to limit the input current (preventing damage from overcurrent), and an RC filter circuit suppresses spike pulse interference. Meanwhile, the module can configure an anti-shake filtering time of 1ms~100ms via software according to the on-site interference intensity, avoiding false signal collection caused by contact bounce or transient interference.
Triple Modular Data Collection and Verification: The conditioned signal is synchronously transmitted to three independent collection units inside the module. Each unit converts the analog signal into a digital level (high level ≥ 18V DC/36V DC, low level ≤ 5V DC/10V DC) and transmits the three sets of digital signals to the verification logic unit via the internal redundant bus. The verification unit performs "two-out-of-two" or "two-out-of-three" judgment on the three sets of data (depending on system configuration). If the three sets of data are consistent, the valid signal is uploaded; if one set of data is abnormal, the fault channel is marked and the output is based on the two normal sets of data.
Data Transmission and Diagnostic Feedback: The verified valid signal is transmitted to the TMR controller via the TRICONEX system bus to provide data support for logic control. At the same time, the diagnostic unit real-time uploads information such as the status of each channel (normal/open circuit/short circuit) and the module's power supply voltage to the upper computer, which is intuitively displayed on the upper computer's monitoring interface, facilitating maintenance personnel to grasp the module's operating status in real time.

(2) Cooperative Working Mechanism with TMR System

As the I/O front-end of the TRICONEX TMR control system, the DI2301 7400208-020 achieves in-depth collaboration with the system's triple modular controllers (e.g., TRICON 5730) via a dedicated redundant bus:

Data Synchronization: The module synchronously sends the collected digital signals to the three controller units every 1ms. The controller performs consistency verification on the three sets of signals to ensure that the control logic is executed based on true and reliable input signals, avoiding misjudgments caused by the failure of a single I/O module.
Fault Tolerance: If a single collection channel of the DI2301 7400208-020 fails (e.g., filter capacitor damage), the controller can automatically ignore the abnormal data of this channel through the diagnostic information uploaded by the module and perform logic operations based on the other two normal sets of signals, preventing the system from triggering incorrect actions (e.g., false shutdown) due to the failure of a single channel.
Online Maintenance: Without shutting down the TMR system, online hot-swapping of the DI2301 7400208-020 can be performed. The system will automatically identify the new module, quickly complete parameter configuration (such as voltage level, filtering time) and data synchronization. Signal collection remains uninterrupted during the replacement process, meeting the "non-stop maintenance" requirement of industrial production and reducing production losses caused by maintenance.
