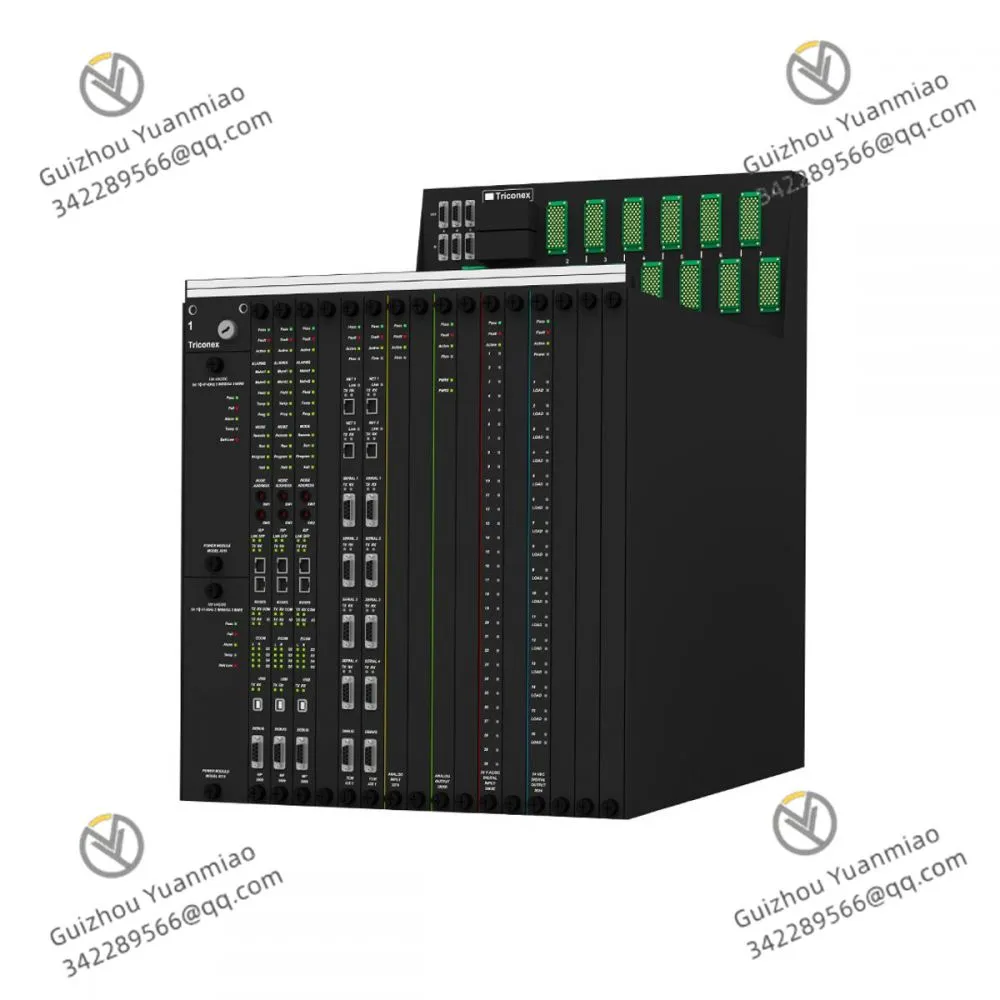

TRICONEX ICM6211 Control Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -40°C ~ 70°C

Relative Humidity 5%~95% (non-condensing)

Dimensions 100mm×160mm×30mm

I. Overview

TRICONEX ICM6211 is a dedicated interface communication module for Triple Modular Redundant (TMR) Safety Instrumented Systems (SIS). Its core positioning is a "safety-level cross-system data interaction hub - Modbus protocol conversion carrier - redundant communication link protection node". It is mainly used to realize bidirectional data transmission between TRICON systems (such as TRICON CX, TS3000) and third-party industrial equipment (such as DCS, intelligent instruments, PLC, SCADA systems), with a focus on supporting Modbus series protocols (RTU/TCP). Meanwhile, through hardware-level fault detection and redundant design, it ensures the security and continuity of data transmission, providing SIL 2-level communication assurance for the coordinated control between SIS and other systems (such as ESD command interaction, process data sharing) in high-risk scenarios like petrochemical and chemical industries.

It has three core advantages:

Two-channel redundant communication: Integrates two independent communication channels (supporting flexible configuration of Ethernet/RS485), enabling automatic switching between main and standby links to avoid data interruption caused by single-point communication faults;
Safety-level protocol processing: Built-in Modbus protocol hardware parsing unit, supporting data verification (CRC/Checksum) and fault isolation to prevent protocol parsing errors from spreading to the core control logic of TRICON;
Industrial-grade environmental resistance: Adopts wide-temperature design, enhanced anti-interference capability, and durable components, suitable for high-temperature and strong electromagnetic interference scenarios. The Mean Time Between Failures (MTBF) reaches more than 1.5 million hours, making it a core communication component for the interaction between TRICON systems and external equipment.

II. Technical Parameters

Basic Specifications

Item

Parameter Details

Equipment Type

Safety-level Interface Communication Module for TRICON System (Modbus-specific)

Compatible Systems

TRICONEX TRICON Triple Modular Redundant Safety Instrumented Systems (e.g., TRICON CX, TS3000 Series)

Functional Safety Level

Compliant with IEC 61508 standard, supporting SIL 2 level

Installation Method

Standard rack slot installation for TRICON (occupies 1 standard module slot)

Overall Dimensions

Standard size for TRICON modules (approximately 100mm×160mm×30mm, suitable for compact rack layout)

Protection Class

IP20 (Installed in the rack, protected against intrusion of solid foreign objects)

Operating Temperature Range

-40°C ~ 70°C (operation); -55°C ~ 85°C (storage)

Power Supply Requirement

Unified power supply from TRICON rack (+5V DC for logic power supply, rated current 0.6A; 24V DC for interface power supply, rated current 0.8A)

2. Performance Parameters

Communication Interface and Protocol Characteristics

Interface Type

Specification Parameters

Supported Protocols

Function Purpose

Ethernet Interface

2 channels of 10/100Base-TX RJ45 interfaces (configurable as main-standby redundancy)

Modbus TCP, TCP/IP, UDP

Connects to DCS and SCADA systems (e.g., Siemens PCS7, Rockwell FactoryTalk) to realize safety-level data upload (such as SIS fault status) and command reception (such as remote reset), supporting dual-network redundant switching (switching time

Serial Communication Interface

2 channels of RS485 interfaces (half-duplex, maximum baud rate 115200bps)

Modbus RTU (Master/Slave mode), ASCII protocol

Connects to intelligent instruments (e.g., flowmeters, pressure transmitters) and third-party PLCs (e.g., Mitsubishi FX Series) to collect non-safety-related auxiliary data (such as pump body temperature). Each channel supports 32 slave devices, with a maximum communication distance of 1200m (shielded twisted pair)

TRICON Backplane Interface

1 dedicated backplane bus interface (10Mbps)

TRICON internal system communication protocol

Communicates with TRICON CPU modules (e.g., 9760-210) and I/O modules to transmit external equipment data and system control commands, with a communication delay ≤ 1ms

Redundancy and Safety Characteristics

Two-channel Communication Redundancy: Supports main-standby redundancy configuration for Ethernet/RS485 interfaces (e.g., Ethernet 1 as the main link, Ethernet 2 as the standby link). When a fault is detected in the main link (such as link interruption, packet loss rate > 1%), it automatically switches to the standby link. No data is lost during the switching process, ensuring communication continuity;
Fault Diagnosis Capability: Diagnostic coverage rate ≥ 99%, capable of detecting 8 types of faults including "Ethernet link interruption", "RS485 communication timeout", "Modbus protocol verification error", "backplane bus communication fault", and "24V power supply abnormality". The diagnostic response time is ≤ 50ms, and fault information is uploaded to the TRICON HMI in real time via the system bus;
Safety Data Processing: Supports partitioned isolation of Modbus data, transmitting "safety-related data" (such as ESD shutdown commands) and "non-safety data" (such as equipment operation status) separately. Faults in non-safety data (such as verification errors) do not affect the processing of safety data. It also supports encrypted data transmission (optional TLS 1.2 protocol, Ethernet interface only) to prevent data tampering or unauthorized access.

Data Transmission Performance

Ethernet Transmission Rate: 10/100Mbps auto-negotiation, maximum data throughput of a single interface is 50Mbps, supporting simultaneous connection to 8 external devices (e.g., 2 DCS servers, 3 SCADA clients);
Serial Communication Rate: The baud rate of the RS485 interface is configurable (9600bps ~ 115200bps). Under the Modbus RTU protocol, the polling cycle of a single interface for 32 slaves is ≤ 1s (at 115200bps);
Data Delay: Communication delay within the TRICON system (with CPU module) ≤ 1ms; Ethernet Modbus TCP communication delay ≤ 20ms (within local area network); RS485 Modbus RTU communication delay ≤ 100ms (at 115200bps).

III. Functional Features

1. Two-channel Redundant Communication and Safety Assurance

Automatic Switching between Main and Standby Links: The module supports main-standby redundancy configuration for Ethernet or RS485 interfaces, ensuring uninterrupted communication through the mechanism of "real-time link status monitoring - fault determination - seamless switching". For example, if Ethernet 1 is the main link, the module detects link connectivity every second (by sending ping packets or Modbus heartbeat frames). If detection fails consecutively for 3 times (packet loss or timeout), it switches to the standby Ethernet 2 link within 50ms. During the switching process, unsent data is cached and retransmitted after recovery to avoid data loss (such as DCS failing to receive SIS fault alarms);
Fault Isolation and Alarm: When a fault is detected in a communication interface (such as RS485 communication timeout), the module automatically isolates the interface and transmits data only through the normal interface. At the same time, it triggers the on-board fault indicator light (red flashing) and sends fault codes (e.g., F02 = RS485 1 fault, F05 = Ethernet 2 link interruption) to the TRICON HMI via the backplane bus, enabling maintenance personnel to quickly locate the faulty link and reduce troubleshooting time;
Protocol-level Safety Verification: Equipped with a built-in Modbus protocol hardware parsing unit, it performs CRC (for RTU protocol) or Checksum (for TCP protocol) verification on received Modbus frames. Frames with verification errors are directly discarded and not transmitted to the TRICON CPU module. It also supports "data range verification" (e.g., setting the analog data range to 0-100MPa, and marking values outside this range as "invalid") to prevent abnormal data from affecting the control logic.

2. In-depth Adaptation and Flexible Configuration of Modbus Protocol

Full-scenario Modbus Support: The module supports both Modbus TCP (Ethernet) and Modbus RTU (RS485) protocols, and can be configured as "Master" or "Slave" mode. When acting as a Modbus Master, it actively polls external slave devices (such as intelligent instruments) to collect data; when acting as a Slave, it receives read/write commands from external Masters (such as DCS), uploads TRICON system data (such as I/O collected values) or executes control commands (such as manual reset), adapting to different on-site communication requirements;
Visual Parameter Configuration: Communication parameters can be intuitively configured through the TRICON system configuration software (TriStation 1131), such as Ethernet IP address, RS485 baud rate/parity bit, Modbus slave address, data collection cycle (100ms ~ 10s), and redundancy switching threshold (e.g., packet loss rate > 1% triggers switching). No hardware jumpers are required, and configurations take effect immediately, reducing on-site debugging workload;
Data Mapping and Filtering: Supports direct mapping between the Modbus register address of external devices (e.g., register 40001 of an instrument) and the internal variables of the TRICON system (e.g., "pump outlet pressure"), without the need to write protocol conversion programs. It also allows setting "data filtering rules" (e.g., only uploading data with a variation > 0.5% FS), reducing invalid data transmission and lowering system bus load (e.g., reducing backplane bus occupancy from 30% to 15%).

3. Industrial-grade Reliability and Environmental Adaptation

Wide-temperature and Harsh Environment Resistance: The operating temperature range of -40°C ~ 70°C covers outdoor cabinets in cold regions (e.g., SIS cabinets in northern coal chemical plants) and areas near high-temperature equipment (e.g., beside heaters in refining units), without the need for additional temperature control equipment. The PCB adopts a conformal coating (moisture-proof, corrosion-proof, dust-proof), extending the service life to more than 10 years in the humid environment (95% RH, no condensation) and oil-gas-rich scenarios of petrochemical workshops;
Enhanced Anti-interference Design: The power input end is equipped with an EMI filter (compliant with EN 55022 Class B radiation standard), the communication interface adopts photoelectric isolation (isolation voltage 2500V AC for 1 minute), and the Ethernet interface supports IEEE 802.3 EMC optimization. It can resist ±4kV surges and ±2kV electrical fast transient interference (such as interference from frequency converter start-stop), ensuring no error codes in Modbus communication frames (bit error rate
Durable Component Selection: Uses long-life industrial-grade communication chips (e.g., dedicated Modbus parsing chips with a service life ≥ 80,000 hours @ 40°C), gold-plated connectors (plugging/unplugging times ≥ 1000, contact resistance

4. Convenient Operation & Maintenance and Status Monitoring

Visual Status Indication: The front panel is equipped with 8 LED indicator lights, including "Power Light (yellow steady on = normal power supply)", "Ethernet 1/2 Status Lights (green flashing = normal communication)", "RS485 1/2 Status Lights (blue flashing = normal communication)", "Redundancy Status Light (white steady on = normal redundancy)", and "Fault Light (red flashing = module fault)". The status of each communication link can be intuitively judged without accessing the system software (e.g., extinguished Ethernet 1 light indicates link interruption);
Remote Diagnosis and Testing: Through TriStation 1131 software, communication status (such as number of Ethernet connections, RS485 slave response rate, data transmission rate) and fault logs (including fault type, occurrence time, and affected link) can be viewed remotely. It also supports "link testing" (e.g., sending test Modbus frames to verify the response of external devices), eliminating the need for on-site module disassembly and reducing maintenance workload;
Spare Part Compatibility: Compatible with other interface communication modules in the TRICON series (e.g., ICM6200), with consistent module size, interface definition, and communication protocol, enabling direct replacement and reducing spare part inventory costs. It also supports hot-swapping (for some TRICON rack models), allowing replacement without power-off and avoiding TRICON system shutdown.

IV. Operation, Maintenance and Troubleshooting

Daily Maintenance Points

Status Monitoring: Check the module's operating status via the TRICON HMI daily to confirm normal communication of Ethernet/RS485 links (no interruption, no verification errors), steady-on redundancy status light, and no fault alarms. Inspect the module's indicator lights on-site to ensure the power light and communication interface lights flash normally (no extinction or red flashing);
Link Inspection: Monthly check the wiring of Ethernet cables and RS485 cables (especially the tightness of terminals), and re-tighten the screws (torque 0.5-0.8N・m) to avoid loose wiring caused by vibration (increased contact resistance leading to communication packet loss). Check the cleanliness of fiber optic interfaces (if expanded), and wipe the optical ports with dedicated fiber cleaning paper to prevent light signal attenuation caused by dust;
Performance Testing: Quarterly perform "communication performance testing" via the system software, such as Ethernet Modbus TCP testing (sending 1000 frames of test data, packet loss rate should be
Environmental Control: Ensure the temperature inside the cabinet is within the range of -40°C ~ 70°C. Regularly clean the dust from the module's heat dissipation holes (blow along the heat dissipation direction with compressed air) to avoid derated operation of communication chips due to overheating (e.g., Ethernet transmission rate dropping from 100Mbps to 10Mbps). Check the cabinet's sealing to prevent oil, gas, and dust from entering the module and affecting the performance of communication interfaces.

Common Faults and Solutions

Fault Phenomenon	Possible Causes	Solutions
Ethernet link interruption (light off, reporting "link fault")	1. Loose or faulty network cable; 2. Faulty switch port; 3. Damaged Ethernet chip of the module	Replace with a test network cable, re-plug the RJ45 interface, and use a network cable tester to check cable continuity; 2. Switch the network cable to a standby switch port. If communication is restored, the original port is faulty, and the switch needs to be replaced; 3. If the above operations are ineffective, replace the module (damage to the Ethernet chip is mostly irreversible)
RS485 slave no response (reporting "timeout fault")	1. RS485 cable open/short circuit (A/B wires reversed or disconnected); 2. Incorrect slave address configuration; 3. Mismatched baud rate/parity bit	Use a multimeter in continuity mode to test the RS485 cable, confirm correct A/B wire connection, and repair open/short circuit points; 2. Verify the slave device address against the system configuration (e.g., Modbus slave addresses should be consistent); 3. Confirm that the RS485 interface baud rate (e.g., 9600bps) and parity bit (e.g., even parity) match the slave, and reconfigure parameters
Modbus protocol verification error (reporting "CRC error")	1. Electromagnetic interference (e.g., proximity to frequency converters); 2. Cable signal attenuation (distance exceeding 1200m); 3. Incompatible external device protocol version	Check the installation distance between the module and the interference source (should be ≥ 3m), install magnetic rings on the RS485 cable, or replace it with a shielded twisted pair (ground resistance ≤ 4Ω); 2. If the RS485 communication distance exceeds 1200m, install an RS485 repeater (e.g., Siemens RS485 repeater); 3. Confirm that the Modbus protocol version of the external device (e.g., RTU mode) is consistent with the module, and upgrade the device firmware to a compatible version
Redundancy switching failure (no switch to standby link when main link fails)	1. Standby link not enabled (configuration error); 2. Excessively high redundancy switching threshold (e.g., switching triggered only when packet loss rate > 5%); 3. Fault in the standby link itself	Verify the standby link configuration via TriStation 1131 software to ensure the "redundancy enable" option is checked; 2. Lower the redundancy switching threshold (e.g., switching triggered when packet loss rate > 1%); 3. Test the standby link independently (disconnect the main link and check if the standby link communicates normally), and repair faults in the standby link (e.g., replace the standby link network cable)
