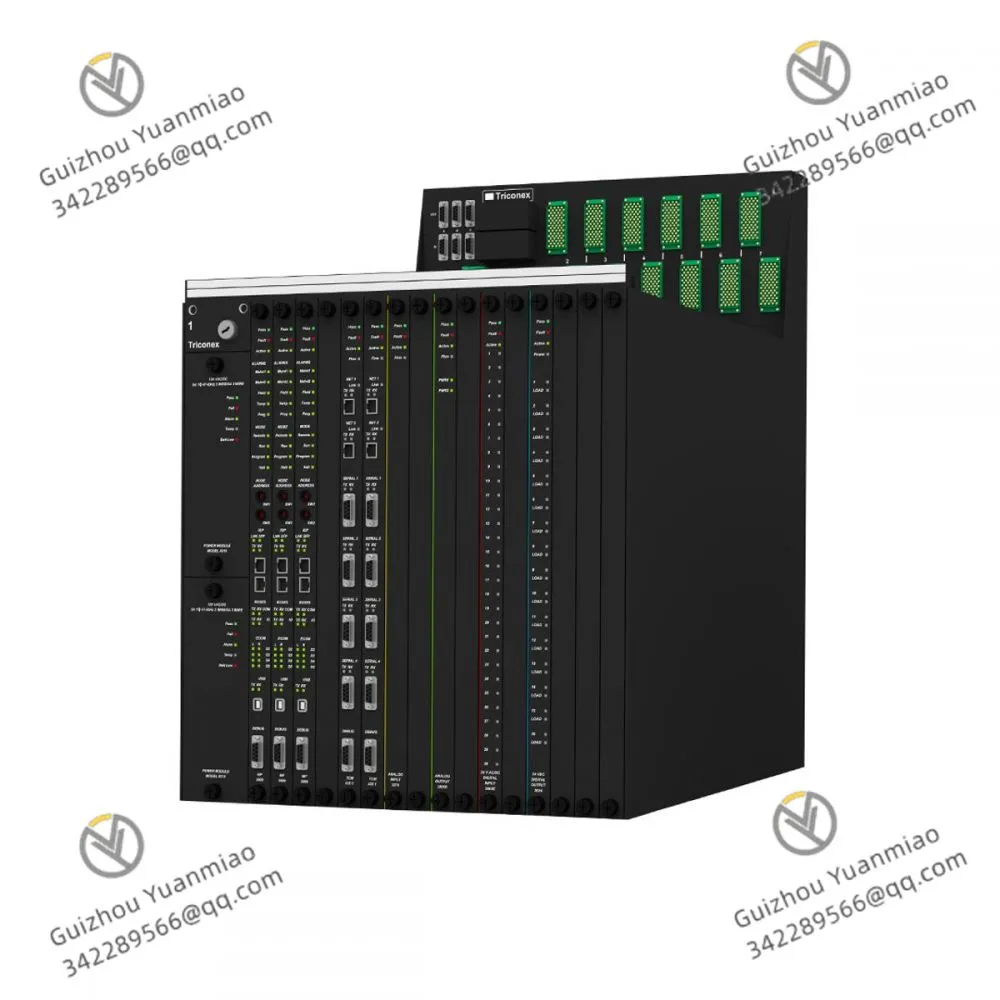

TRICONEX 0903-164-7921 Digital I/O Module

I. Overview

TRICONEX 0903-164-7921 is a dedicated analog input module for Triple Modular Redundant (TMR) Safety Instrumented Systems (SIS). Its core positioning is a "safety-level signal acquisition unit - redundant data processing carrier - fail-safe interface". It is mainly used to collect standard 4-20mA analog signals in industrial fields (such as output signals from pressure, temperature, and flow transmitters) and realize redundant acquisition, verification, and transmission of signals through the TMR architecture of the TRICON system. It provides reliable data support for safety-related control logics such as Emergency Shutdown Systems (ESD) and Fire and Gas Protection Systems (FGS).

1. Triple modular redundant acquisition: Independent three-channel signal processing paths are used to implement "2-out-of-3" (2oo3) voting logic, avoiding signal misjudgment caused by single-point faults;

2. Safety-level fault diagnosis: Equipped with a hardware-level fault detection circuit, it can real-time monitor abnormalities such as channel open circuit, short circuit, and drift, ensuring the accuracy of signal acquisition;

3. Industrial-grade environmental tolerance: Adopting a wide-temperature design and enhanced anti-interference capability, it is suitable for high-temperature and strong electromagnetic interference scenarios such as petrochemical and chemical industries. With a Mean Time Between Failures (MTBF) of more than 1.5 million hours, it is a core component for signal acquisition in safety instrumented systems.

II. Technical Parameters

1. Basic Specifications

2. Performance Parameters

Signal Acquisition Characteristics

• Channel Configuration: 8 independent analog input channels, each supporting 4-20mA DC current signals (compatible with 2-wire/4-wire transmitters);

• Input Accuracy: ±0.1% Full Scale (FS). At an ambient temperature of 25°C, the measurement error corresponding to the 4-20mA signal is ≤0.032mA, meeting the requirements of high-precision process parameter acquisition (e.g., reactor pressure monitoring);

• Sampling Rate: The maximum sampling rate per channel is 10Hz (configurable via system software, default 1Hz). The synchronous sampling time difference between 8 channels is ≤1ms, supporting data synchronization for redundant voting logic;

• Signal Range: Supports over-range detection. The input signal range is 0-24mA (over-range alarm is triggered when exceeding 20mA, and under-range alarm is triggered when below 4mA);

• Transmitter Power Supply: Some channels support 24V DC auxiliary power supply (maximum output current 20mA per channel), which can directly power 2-wire 4-20mA transmitters, reducing external power wiring.

Redundancy and Safety Characteristics

• Redundant Architecture: Integrates TMR signal processing channels. Each input signal is converted by three independent Analog-to-Digital Converters (ADCs), and valid data is output through the system's voting logic (2oo3). A single-channel fault does not affect the overall signal acquisition;

• Fault Diagnosis Coverage: ≥99%, capable of detecting 8 types of faults such as "channel open circuit", "channel short circuit", "ADC drift", and "power supply abnormality", with a diagnostic response time ≤100ms;

• Fail-Safe Output State: When the module detects a severe fault (e.g., two channels fail simultaneously), it automatically outputs a "fail-safe value" (pre-settable to 0mA or 24mA) to ensure that the downstream safety logic triggers correct actions (e.g., emergency shutdown).

Communication and Interface Characteristics

• Internal Communication: Communicates with the Central Processing Unit (CPU) via the TRICON system backplane bus, using a triple modular redundant communication link. The data transmission rate is ≥1Mbps, and the delay is ≤5ms;

• Status Indication Interface: The front panel is equipped with 8 channel status LEDs (green steady on = normal acquisition, red flashing = channel fault) + module power LED (yellow steady on = normal power supply) + redundancy status LED (blue steady on = normal TMR), providing intuitive display of the operating status;

• Calibration Interface: Supports remote calibration via TRICON system software (no module disassembly required). The calibration cycle is configurable (default once every 12 months).

Environmental Adaptability

III. Functional Features

1. Safety-Level Redundant Acquisition and Voting

• TMR Design: Each analog input signal passes through three independent signal conditioning circuits, ADC converters, and data processing channels. After data acquisition, the system executes "2oo3" voting (valid results are output if any two sets of data are consistent), completely avoiding signal errors caused by single-point faults (e.g., damage to one ADC), and meeting the "no single-point fault" requirement of the SIL 3 safety level;

• Synchronous Sampling and Data Verification: The 8 channels support synchronous sampling with a sampling time difference ≤1ms, ensuring the time consistency of multi-measurement point parameters (e.g., pressure acquisition at different positions of the same reactor); meanwhile, a built-in data verification algorithm (such as CRC verification) prevents packet loss or tampering during data transmission;

• Fault Isolation Mechanism: When a fault (e.g., open circuit, short circuit) is detected in a channel, the module automatically isolates the channel. The remaining two channels continue to work and trigger a "channel fault alarm", which does not affect the normal acquisition of other channels and ensures the overall availability of the system.

2. Intelligent Fault Diagnosis and Alarm

• Comprehensive Fault Detection: Equipped with a hardware-level fault diagnosis circuit, it can real-time monitor the following fault types: ① Channel open circuit/short circuit (input current

• Over-Range and Deviation Alarms: Supports configuration of "high/low range alarm thresholds" for each channel (e.g., a pressure transmitter with 4-20mA corresponding to 0-10MPa can set 9MPa as the high alarm and 1MPa as the low alarm). When the signal exceeds the threshold or the data deviation between two valid channels is > 0.2% FS, a "process alarm" is triggered to remind operators to intervene in a timely manner;

• Fault Logging and Tracing: Supports storage of up to 200 fault records (including fault type, occurrence time, channel number, and signal value at the time of the fault). The logs are not lost when power is off and can be exported via TRICON system software, facilitating root cause analysis of faults (e.g., determining whether a channel fault is caused by aging of the transmitter cable).

3. Industrial-Grade Reliability and Environmental Adaptation

• Wide-Temperature and Harsh Environment Tolerance: The operating temperature range of -40°C ~ 70°C covers outdoor cabinets in cold regions (e.g., northern petrochemical plants) and areas near high-temperature equipment (e.g., beside heating furnaces), without the need for additional temperature control equipment; the PCB adopts a conformal coating (moisture-proof, corrosion-proof, dust-proof), extending the service life to more than 10 years in high-humidity and oil-gas-rich environments of petrochemical workshops;

• Enhanced Anti-Interference: The power input end is equipped with an EMI filter (compliant with EN 55022 Class B radiation standard), and the signal circuit adopts photoelectric isolation (isolation voltage 2500V AC for 1 minute), avoiding signal fluctuations caused by electromagnetic interference from frequency converters and high-voltage motors in industrial fields (e.g., 4-20mA signal fluctuation ≤ 0.01mA);

• Durable Material Selection: Uses long-life electrolytic capacitors (service life ≥ 60,000 hours @ 40°C), gold-plated connectors (plugging/unplugging times ≥ 1,000), and the module housing is made of flame-retardant ABS material (UL94 V-0 grade), meeting the requirements of industrial fire protection and mechanical stability.

4. Convenient Operation, Maintenance and Calibration

• Visual Status Monitoring: The 8 channel LEDs and 3 system LEDs on the front panel allow intuitive judgment of the operating status. Faulty channels can be quickly located without accessing the system software (e.g., a flashing red light on a channel indicates a fault in that channel);

• Remote Calibration and Configuration: Module calibration (inputting standard 4mA/20mA signals, with the software automatically correcting deviations) and parameter configuration (sampling rate, alarm threshold, transmitter power enable) can be completed remotely via TRICON system configuration software (e.g., TriStation 1131), without on-site module disassembly, reducing maintenance workload;

• Spare Part Compatibility: Compatible with other analog input modules in the TRICON series (e.g., 0903-164-7920), with consistent module size and interface definition, enabling direct replacement and reducing the cost of spare part inventory.

IV. Operation, Maintenance and Troubleshooting

Daily Maintenance Points

• Status Check: Check the module's operating status via the TRICON HMI daily to ensure that the collected data of the 8 channels is stable (no frequent fluctuations), there are no fault alarms, and the redundancy status LED (blue) is steady on; meanwhile, check the module's indicator lights on-site to ensure no channel red light is flashing;

• Wiring Inspection: Inspect the wiring of the module's input terminals (especially the 4-20mA transmitter cables) monthly, and re-tighten the screws (torque 0.5-0.8N・m) to avoid loose wiring caused by vibration (increased contact resistance leading to signal attenuation, e.g., 4mA signal dropping to 3.8mA);

• Calibration Verification: Perform "channel calibration verification" via the system software quarterly (input standard 8mA/16mA signals and check if the deviation between the measured value and the standard value is ≤ 0.1% FS). If the deviation exceeds the standard, perform remote calibration;

• Environmental Control: Ensure the temperature inside the cabinet is within the range of -40°C ~ 70°C. Regularly clean the dust from the module's heat dissipation holes (blow along the heat dissipation direction with compressed air) to avoid ADC drift caused by overheating; check the cabinet's sealing to prevent oil, gas, and dust from entering the module.

Common Faults and Solutions
